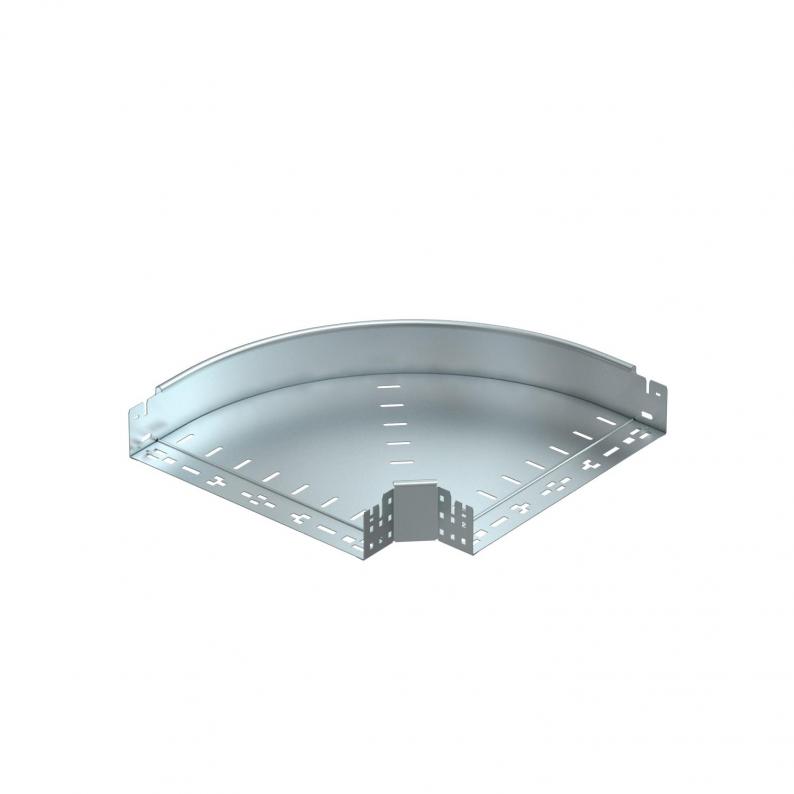

90° Magic bend 85 FS

Type RBM 90 840 FS
|
Item no. 6041496
|
EAN 4012195879947
Item no. / Type
Width

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

90° bend with quick connector system. For all cable tray types of 85 mm side height.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Kablo kanalı, kenar yüksekliği 85 mm
  • DIN EN 61537'ye uygun olarak BET onaylı

Technical data

Dimensions

Width400 mm
Height85 mm
Dimension B400 mm

Technical data

Maintain electrical functionsno
Yan delikno
Connector versionIntegrated connector
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness1,25 mm
Tabanda montaj deliğino
NATO hole patternno
Dönüş elemanı (L tipi bağlantı)90°
Change of directionHorizontal
Boyut85x400
SurfaceStrip galvanized
MaterialSteel
Type of connector, cable support systemClick fastening

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RBM 90 840 FS
Item no.
6041496
Width
400
Surface
Strip galvanized
Material
Steel
RBM 90 850 FS
Item no.
6041498
Width
500
Surface
Strip galvanized
Material
Steel
