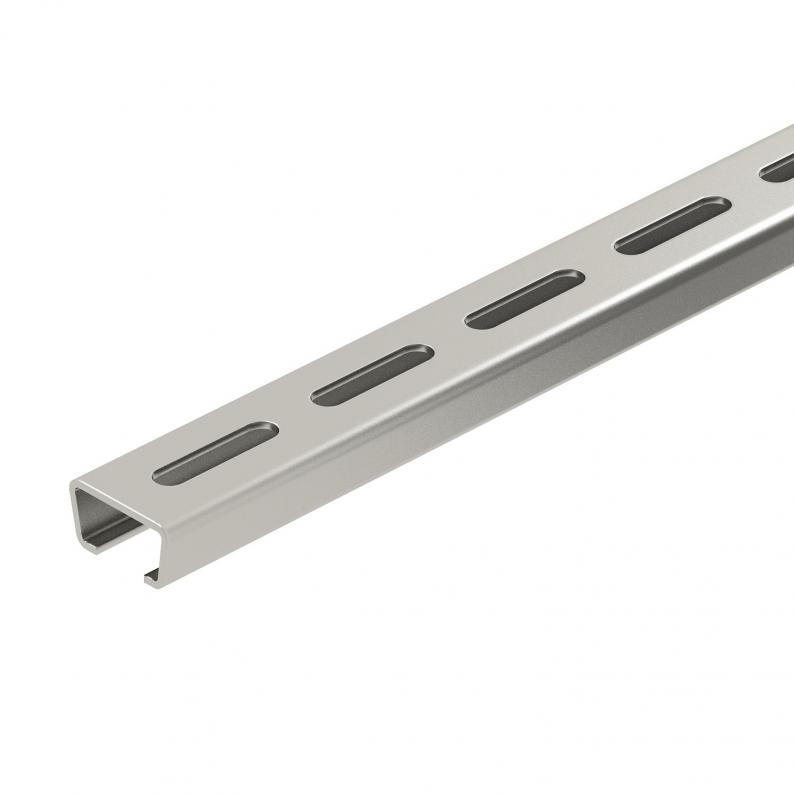

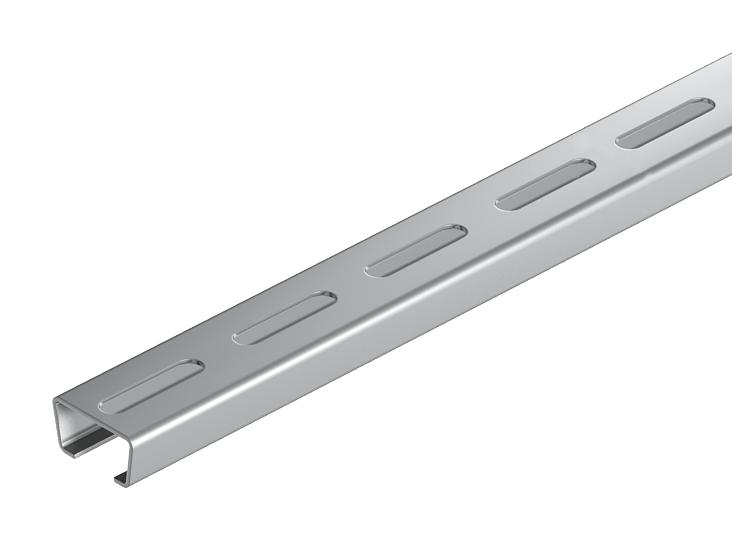

AML3518 anchor rail, slot 16.5 mm, A2, perforated

AML3518 anchor rail, slot 16.5 mm, A2, perforated

Type AML3518P1000A2
|
Item no. 1119700
|
EAN 4012196470747
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 1 m

m

Description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16.5 mm for C profile
  • Clamp clip for C profile rail, slot width 16–17 mm
  • CO₂ footprint (PCF)

Technical data

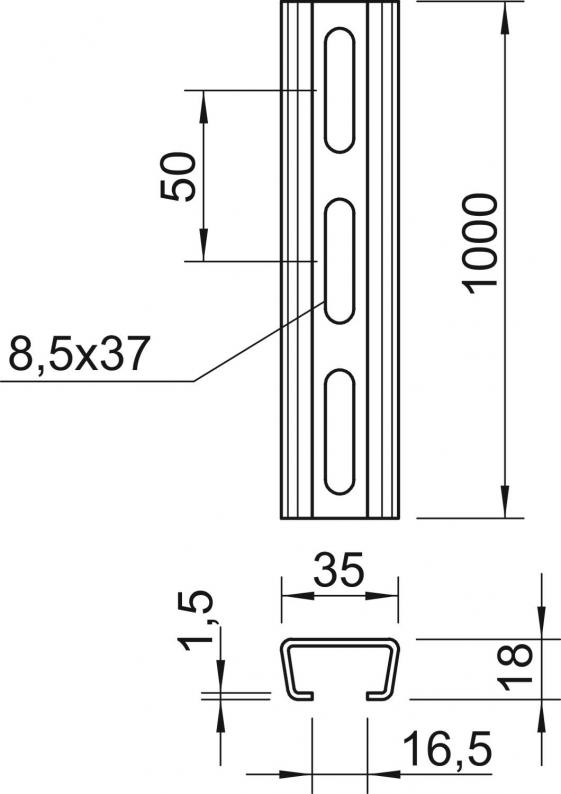

Dimensions

Length1000 mm
Width35 mm
Height18 mm
Dimension L1000 mm

Technical data

Maintain electrical functionsno
Slot width16,5 mm
Material thickness1,5 mm
Static value A1,01 cm²
Static value ly0,44 cm⁴
Static value lz1,84 cm⁴
Static value Wy0,42 cm³
Static value Wz1,05 cm³
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingno
Version forSingle profile
Dimension1000x35x18
SurfaceBright, treated
MaterialStainless steel 1.4301

Environmental Data

4,2834 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate4,2834 kg CO2e / 1 Meter

Accessories

Mounting accessories

Item no. 1147060

Slide nut ZL
Type
ACMSN M8 ZL

Smallest selling unit: 100 piece

piece

Item no. 1148060

Hammer-head bolt ZL
Type
ACMHB M8x30 ZL

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
AML3518P1000A2
Item no.
1119700
Length
1000
Width
35
Height
18
Material thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4301
AML3518P2000A2
Item no.
1119702
Length
2000
Width
35
Height
18
Material thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4301
AML3518P6000A2
Item no.
1119729
Length
6000
Width
35
Height
18
Material thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4301
