Beam clamp SSP 6-21, FT M6
Type SSP 6-21 M6 FT
|Item no. 1486232
|EAN 4012196342112
Item no. / Type
1486232 / SSP 6-21 M6 FT
Dimension L
47 mm
Dimension B
48 mm
Flanş kalınlığı min.
6 mm
Flanş kalınlığı maks.
21 mm

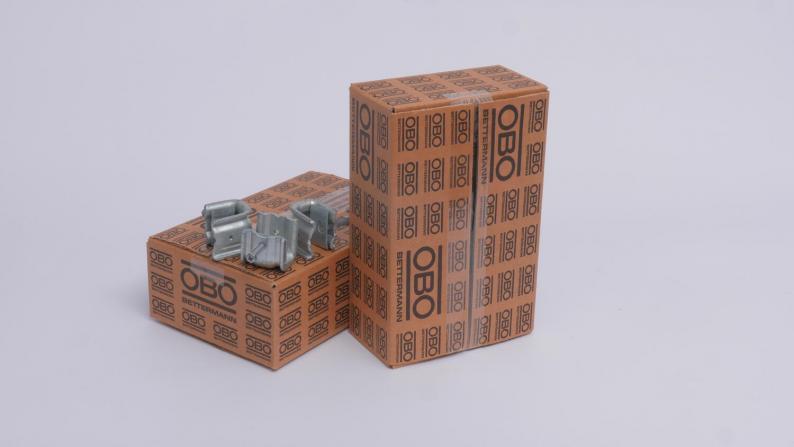

Smallest selling unit: 25 piece
25piece
piece
Description

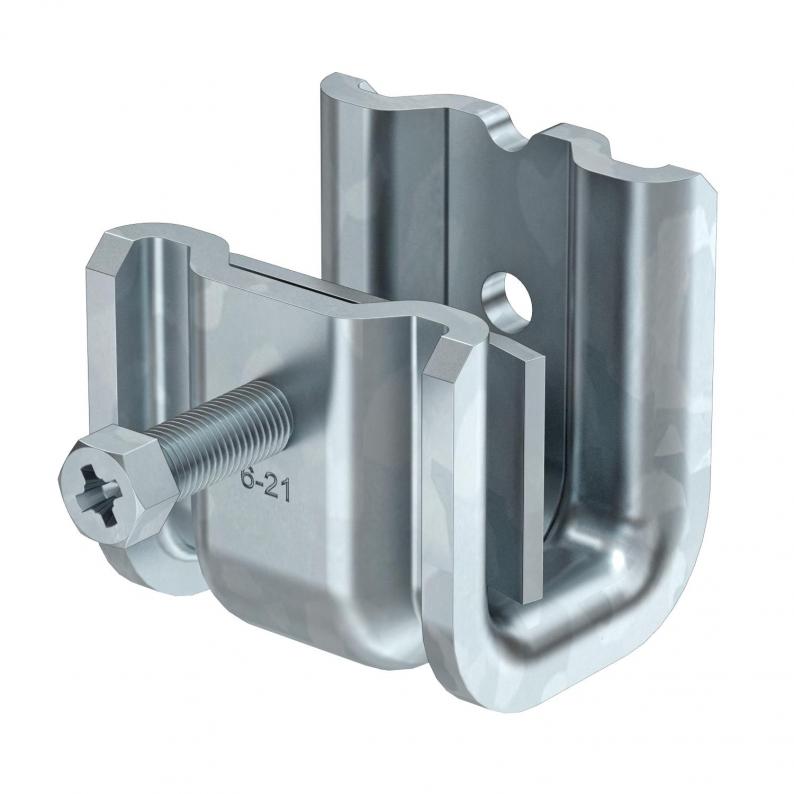

This type of beam clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8). The hexagonal bolt has a WAF of 10 mm. In the clip element, two additional M6 threads are also incorporated, to fix threaded rods, for example.
Technical data

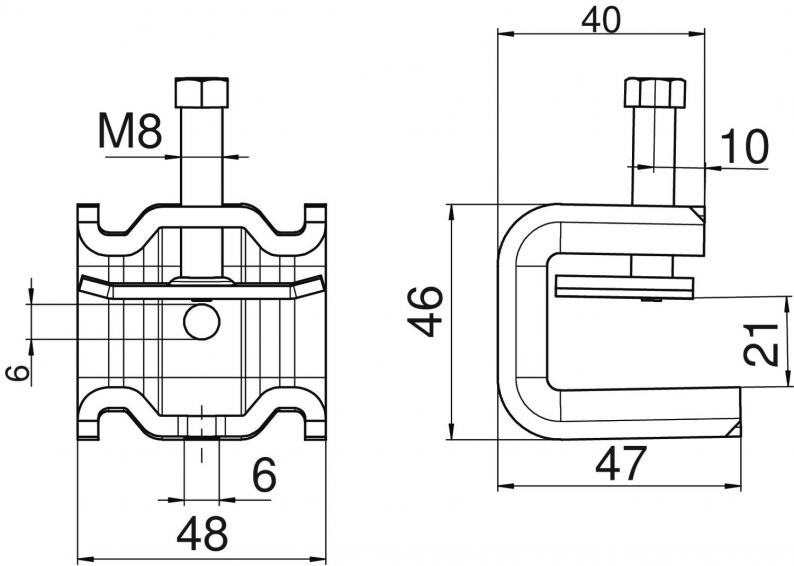

Dimensions
| Dimension L | 47 mm |
|---|---|
| Dimension B | 48 mm |
| Dimension H | 46 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Vida dişi | M8 |
| Hinged | hayır |
| Hinge, adjustable | hayır |
| Suitable for metric threaded rod | 6 |
| Breaking load F1 | 1,75 kN |
| Breaking load F2 | 1,5 kN |
| Fastening type | sıkıştırma |
| Connection type/component | Vida dişi |
| Flanş kalınlığı min. | 6 mm |
| Flanş kalınlığı maks. | 21 mm |
| Boyut | 6-21mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,4987 kg CO2e / 1 Adet |
|---|
