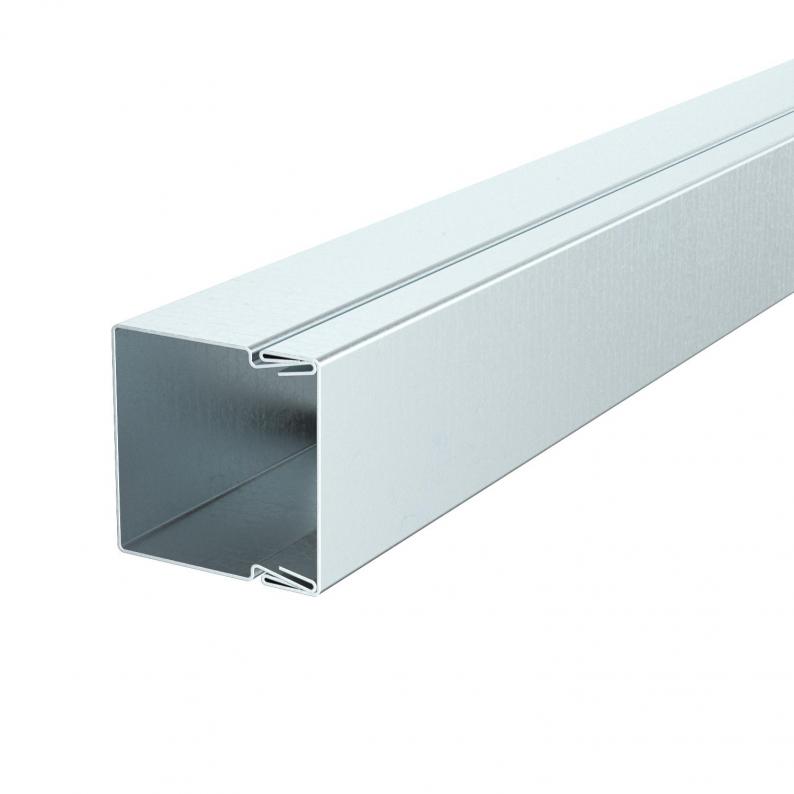

Cable duct, type LKM 30030
Type LKM30030FS
|Item no. 6246985
|EAN 4012196746866
Item no. / Type
Length
Width
Height
Surface
Smallest selling unit: 2 m
2m
m
Description
Duct cover and base with base perforation.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Technical data

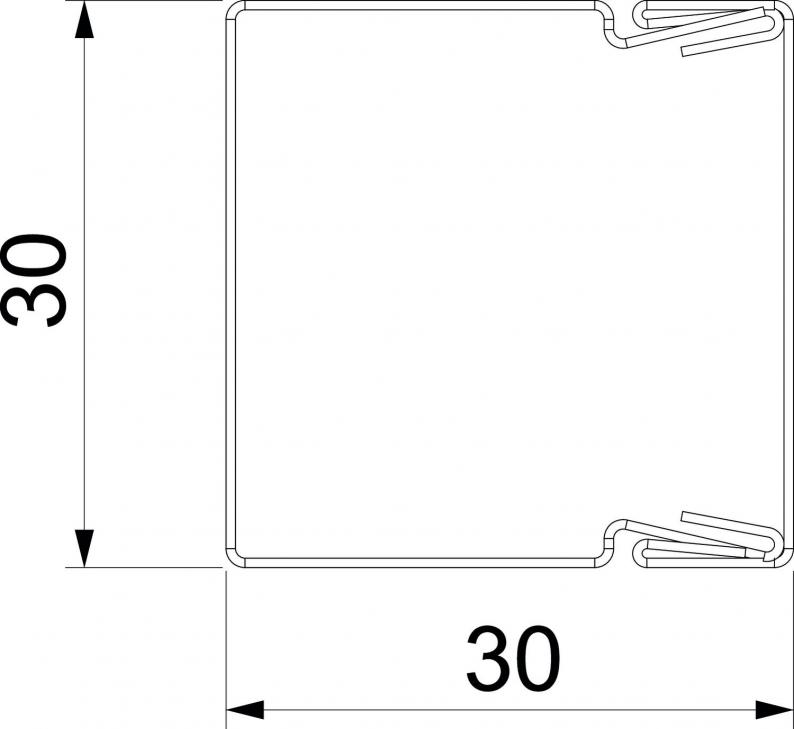

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 30 mm |
| Height | 30 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| NYM tipi kablo sayısı 3 x 1,5 mm² Ø 10,5 mm (kutusuz) | 4 |
| NYM tipi kablo sayısı 5 x 1,5 mm² Ø 12,0 mm (kutusuz) | 4 |
| NYM tipi kablo sayısı 3 x 2,5 mm² Ø 11,5 mm (kutusuz) | 4 |
| Usable cross-section | 805 mm² |
| Halojen İçermez | yes |
| Sabit seperatör sayısı | 0 |
| Geçmeli seperatör sayısı | 0 |
| Kablo tutucu mandal | no |
| Koruyucu folyo | no |
| Kanal bağlantı elemanı | no |
| Koruma sınıfı | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK10 |
| Transparent | no |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Taban deliği | with base perforation |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 90 °C |
| Boyut | 30x30x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Antibacterial treatment | no |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 1,4261 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
LKM KSR30030
6249746
Smallest selling unit: 5 piece
5piece
piece
LKM EK30030
6249776
Smallest selling unit: 5 piece
5piece
piece
Item no. 6249746
Edge protection ring KSR 30030, for LKM cable duct type 30030Type
LKM KSR30030
Smallest selling unit: 5 piece
5piece
piece
Item no. 6249776
End piece, for cable trunking type LKM 30030Type
LKM EK30030
Smallest selling unit: 5 piece
5piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Surface
Material
Item no.
LKM30030FS
2000
30
30
Strip galvanized
Steel
6246985
LKM30030RW
2000
30
30
Strip galvanized / plastic coated
Steel
6248489
Surface
LKM30030FS
Item no.
6246985
Length
2000
Width
30
Height
30
Surface
Strip galvanized
Material
Steel
LKM30030RW
Item no.
6248489
Length
2000
Width
30
Height
30
Surface
Strip galvanized / plastic coated
Material
Steel
