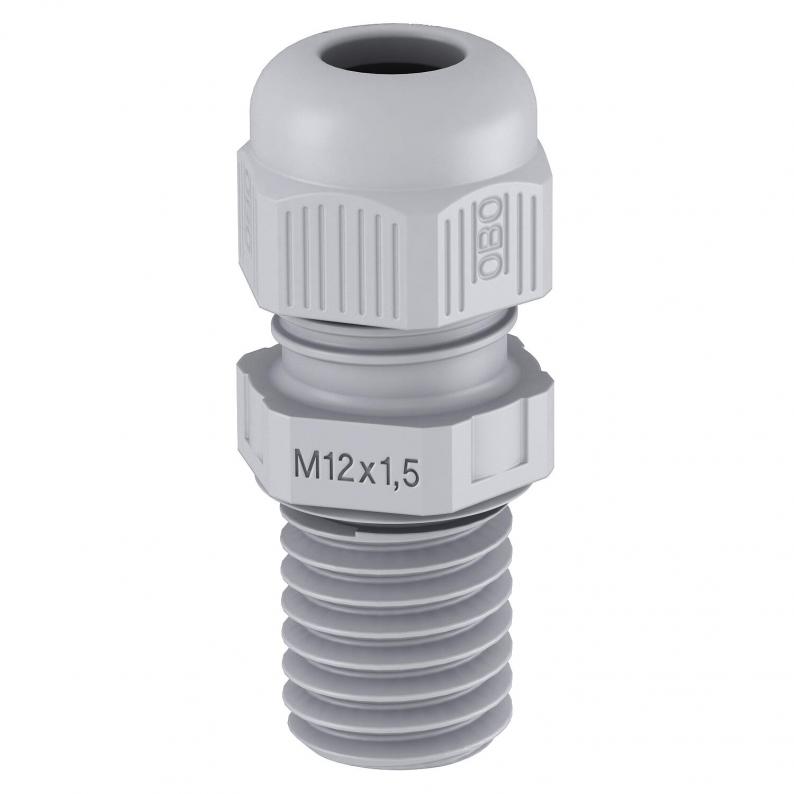

Cable gland, long metric thread, silver grey
Type V-TEC VM L12 SGR
|Item no. 2022921
|EAN 4012195003786
Item no. / Type
Vida dişi
Smallest selling unit: 50 piece
50piece
piece
Description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical data
Technical data
| Darbeye dayanıklı | hayır |
|---|---|
| Halojen İçermez | evet |
| Cam elyafı takviyeli | hayır |
| Patlamaya karşı korumalı | hayır |
| Çekme yükü azaltma imkanı | evet |
| Koruma sınıfı | IP68 |
| Vida dişi | M12 x 1,5 |
| For Ex zone | Yok |
| Thread type | Metric |
| Bend protection | hayır |
| With locknut | hayır |
| Sealing insert, multiple | hayır |
| Flat cable gland | hayır |
| Type of seal | Sealing ring |
| Splittable gland | hayır |
| For Ex zone gas | Yok |
| For Ex zone dust | Yok |
| Thread increase | 1,5 mm |
| Nominal thread size | 12 |
| Hexagonal corner dimension | 16,5 mm |
| Sızdırmazlık alanı D min. | 3,5 mm |
| Sızdırmazlık alanı D maks. | 7 mm |
| WAF | 15 |
| Version for | Düz |
| Vida dişi uzunluğu | 15 mm |
| Unstable torque | 2 Nm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 65 °C |
| Aleve dayanıklı | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Boyut | M12 |
| Material | Polyamide |
| Colour | Silver grey; RAL 7001 |
Dimensions
| Dimension L min. | 17,5 mm |
|---|---|
| Dimension L max. | 24 mm |
| Dimension L1 | 15 mm |
| Dimension L2 | 5 mm |
| Dimension E | 16,5 mm |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0256 kg CO2e / 1 Adet |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
116 M12 SGR PA
2048752
Smallest selling unit: 100 piece
100piece
piece
Item no. 2048752
Locknut, metric thread, silver greyType
116 M12 SGR PA
Smallest selling unit: 100 piece
100piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Vida dişi
Sealing insert, multiple
Colour
Item no.
V-TEC VM L12 SGR
M12 x 1,5
hayır
Silver grey; RAL 7001
2022921
V-TEC VM L16 SGR
M16 x 1,5
hayır
Silver grey; RAL 7001
2022924
V-TEC VM L20 SGR
M20 x 1,5
hayır
Silver grey; RAL 7001
2022926
V-TEC VM L25 SGR
M25 x 1,5
hayır
Silver grey; RAL 7001
2022928
V-TEC VM L32 SGR
M32 x 1,5
hayır
Silver grey; RAL 7001
2022930
V-TEC VM L40 SGR
M40 x 1,5
hayır
Silver grey; RAL 7001
2022933
V-TEC VM L50 SGR
M50 x 1,5
hayır
Silver grey; RAL 7001
2022935
V-TEC VM L63 SGR
M63 x 1,5
hayır
Silver grey; RAL 7001
2022937
