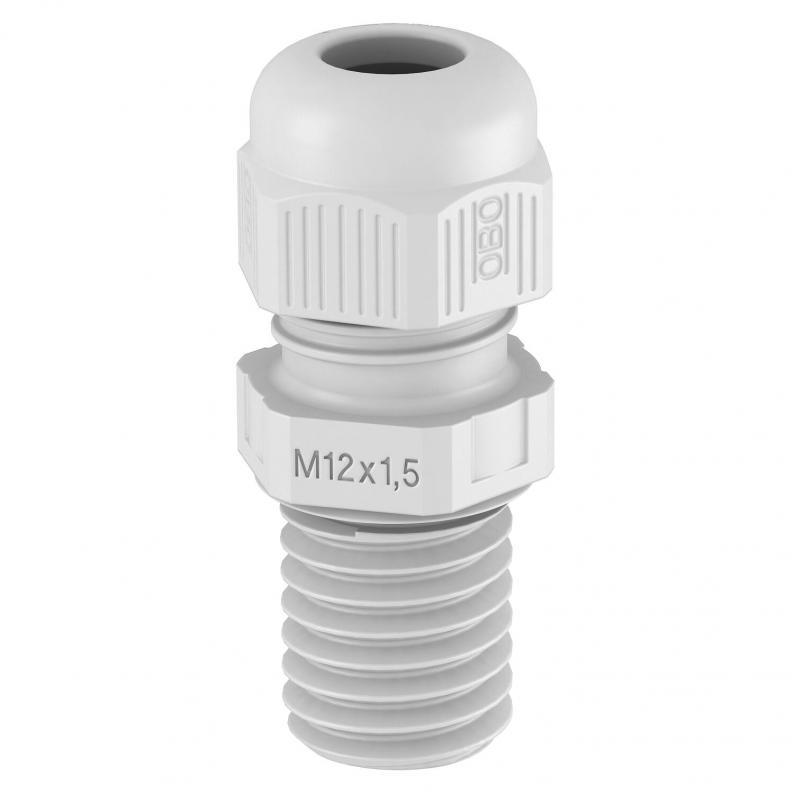

Cable gland, metric thread, long, light grey
Type V-TEC VM L12 LGR
|Item no. 2022943
|EAN 4012195004127
Item no. / Type
Vida dişi
Smallest selling unit: 50 piece
50piece
piece
Description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical data
Technical data
| Darbeye dayanıklı | hayır |
|---|---|
| Halojen İçermez | evet |
| Cam elyafı takviyeli | hayır |
| Patlamaya karşı korumalı | hayır |
| Çekme yükü azaltma imkanı | evet |
| Koruma sınıfı | IP68 |
| Vida dişi | M12 x 1,5 |
| For Ex zone | Yok |
| Thread type | Metric |
| Bend protection | hayır |
| With locknut | hayır |
| Sealing insert, multiple | hayır |
| Flat cable gland | hayır |
| Type of seal | Sealing ring |
| Splittable gland | hayır |
| For Ex zone gas | Yok |
| For Ex zone dust | Yok |
| Thread increase | 1,5 mm |
| Nominal thread size | 12 |
| Hexagonal corner dimension | 16,5 mm |
| Sızdırmazlık alanı D min. | 3,5 mm |
| Sızdırmazlık alanı D maks. | 7 mm |
| WAF | 15 |
| Version for | Düz |
| Vida dişi uzunluğu | 15 mm |
| Unstable torque | 2 Nm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 65 °C |
| Aleve dayanıklı | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Boyut | M12 |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
Dimensions
| Dimension L min. | 17,5 mm |
|---|---|
| Dimension L max. | 24 mm |
| Dimension L1 | 15 mm |
| Dimension L2 | 5 mm |
| Dimension E | 16,5 mm |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0272 kg CO2e / 1 Adet |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
116 M12 LGR PA
2048906
Smallest selling unit: 100 piece
100piece
piece
Item no. 2048906
Locknut, metric thread, light greyType
116 M12 LGR PA
Smallest selling unit: 100 piece
100piece
piece
