Cable ladder LG 110, 6 m VS A2
Type LG 112 VS6 A2
|Item no. 6216492
|EAN 4012196082964
Item no. / Type
Length
Width
Rail thickness
Smallest selling unit: 6 m
6m
m
Description

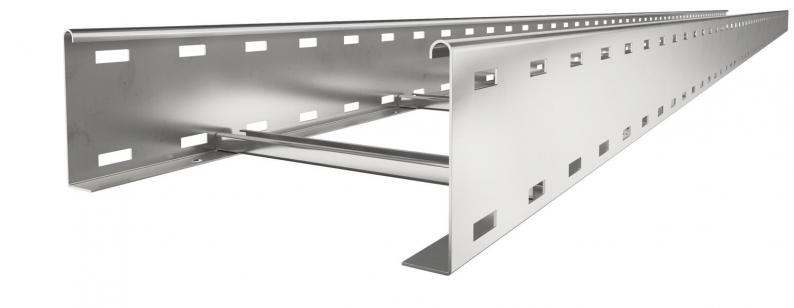

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
The cable ladder is shipped folded up.
You can find the appropriate U clamp of type 2056 in the vertical ladder systems chapter.
Technical data
Dimensions
| Length | 6000 mm |
|---|---|
| Width | 200 mm |
| Height | 110 mm |
| Dimension B | 200 mm |
| Rung slot dimension | 17,00 |
Technical data
| Wide-span version | no |
|---|---|
| Usable cross-section | 188 cm² |
| Usable cross-section | 18800 mm² |
| Rung distance | 300 mm |
| Fastening of rung | Blind riveted |
| Dimension | 110x200 |
| Rail thickness | 1,5 mm |
| Dimension | 110x200x6000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Loads
| Support spacing 2.0 m | 3,1 kN/m |
|---|---|
| Support spacing 2.5 m | 2 kN/m |
| Support spacing 3.0 m | 1,3 kN/m |
| Support spacing 3.5 m | 0,9 kN/m |
| Support spacing 4.0 m | 0,6 kN/m |
| Support spacing 4.5 m | 0,5 kN/m |
| Support spacing 5.0 m | 0,45 kN/m |
| Support spacing 6.0 m | 0,15 kN/m |
Environmental Data
19,5008 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 Footprint (GWP) Cradle-to-Gate | 19,5008 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6216590
Straight and angle connector A2Type
LWVG 110 A2
Smallest selling unit: 10 piece
10piece
piece
