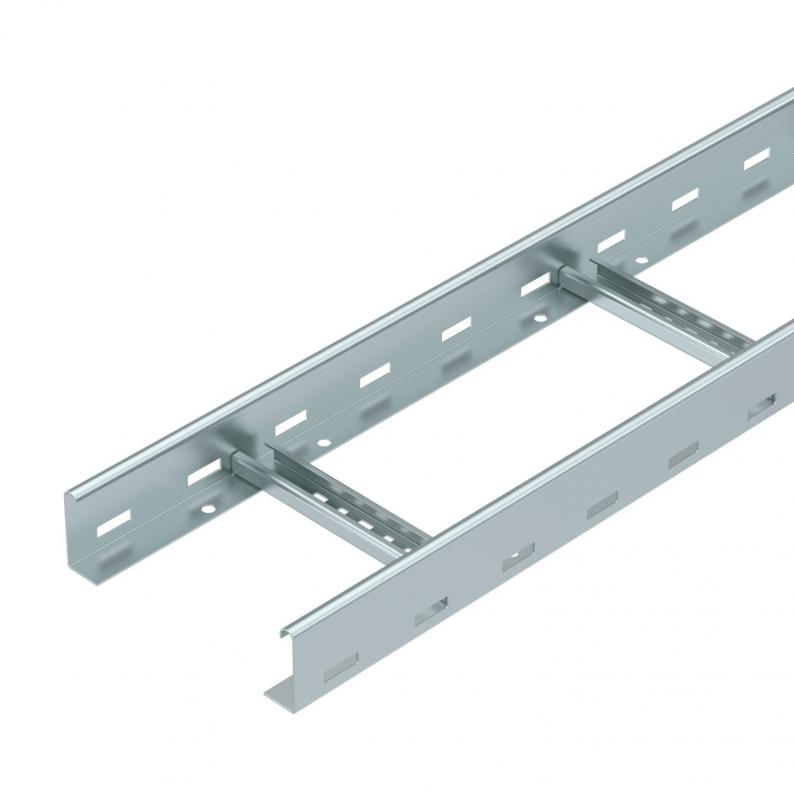

Cable ladder LG 60, 3 m VS FS
Smallest selling unit: 3 m
m
Description
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Additional widths are available on request.
The cable ladder is shipped folded up.
Cables can be mounted with the matching clamp clip, type 2056.
The cable ladders in the widths 200 mm to 400 mm are also approved for vertical mounting as a vertical ladder in systems that guarantee the maintenance of electrical functionality according to DIN 4102 Part 12. Cables can be mounted with the clamp clip approved for maintenance of electrical function, type 2056 M.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 60 mm |
| Dimension B | 200 mm |
| Rung slot dimension | 16,50 |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Yan delik | yes |
| Wide-span version | no |
| Usable cross-section | 98 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 9800 mm² |
| Çerçeve mesafesi | 300 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Flat profile |
| Fastening of rung | Blind riveted |
| Ölçü | 60x200x3000 |
| Yan parça kalınlığı | 1,5 mm |
| Boyut | 60x200x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Fire protection | Maintenance of electrical function of standard support structure |
Loads
| Destek aralığı 1,5m | 3,1 kN/m |
|---|---|
| Destek aralığı 2,0m | 2,25 kN/m |
| Destek aralığı 2,5m | 1,5 kN/m |
| Destek aralığı 3,0m | 1,1 kN/m |
| Destek aralığı 3,5m | 0,75 kN/m |
| Destek aralığı 4,0m | 0,45 kN/m |
| Destek aralığı 4,5m | 0,3 kN/m |
| Destek aralığı 5,0m | 0,15 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 6,3963 kg CO2e / 1 Meter |
|---|
