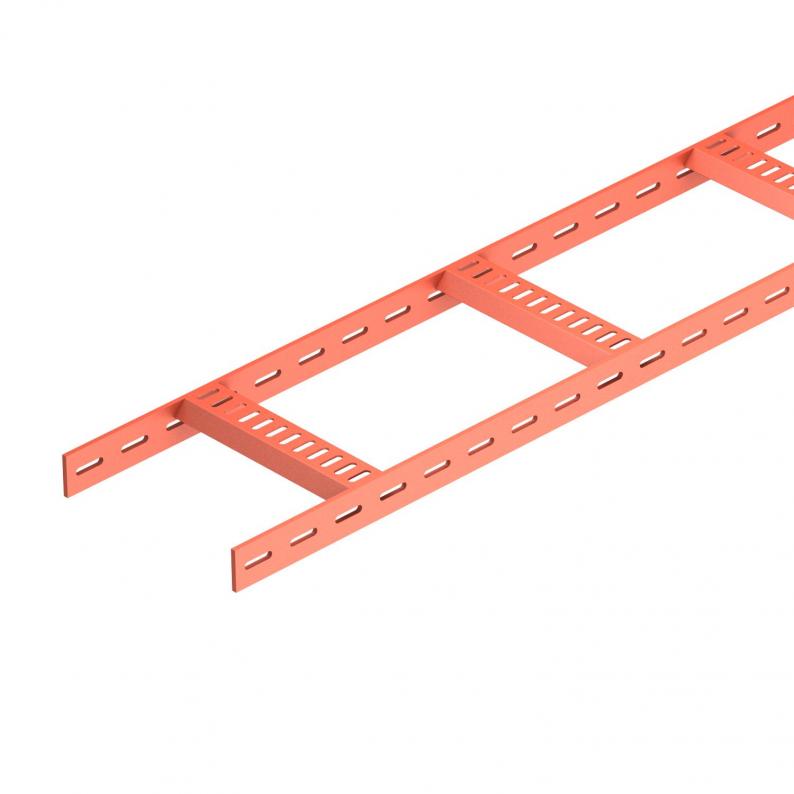

Cable ladderwith trapezoidal rungs, standard SG

Type SL 62 600 SG

Item no. 7097271

EAN 4012196980000

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

7097271 / SL 62 600 SG

Length

3000 mm

Width

600 mm

Maintain electrical functions

hayır

Yan parça kalınlığı

5 mm

This item is a discontinued product!

Smallest selling unit: 3 m

Description

Shipbuilding cable ladder with perforated side rail of side height 40 mm with welded, perforated trapezoidal rungs which open in a downwards direction. Load tested according to IEC in conjunction with connector, type SLV. Welding primer type SIGMA-WELD 199.

The shipbuilding cable ladder, including fittings, is also available in stainless steel on request. Powder coating according to RAL colours possible.

Technical data

Dimensions

Length	3000 mm
Width	600 mm
Height	40 mm
Dimension B	610 mm

Technical data

Maintain electrical functions	hayır
Yan delik	evet
Wide-span version	hayır
Paslanmaz çelik, mordanlı	hayır
Çerçeve mesafesi	300 mm
Version of the rungs	Profile perforated
Side rail version	Yassı profil
Fastening of rung	Welded
Yan parça kalınlığı	5 mm
Boyut	40x610x3000
Surface	Welding primed
Material	Steel
Colour	Pas Kırmızısı
