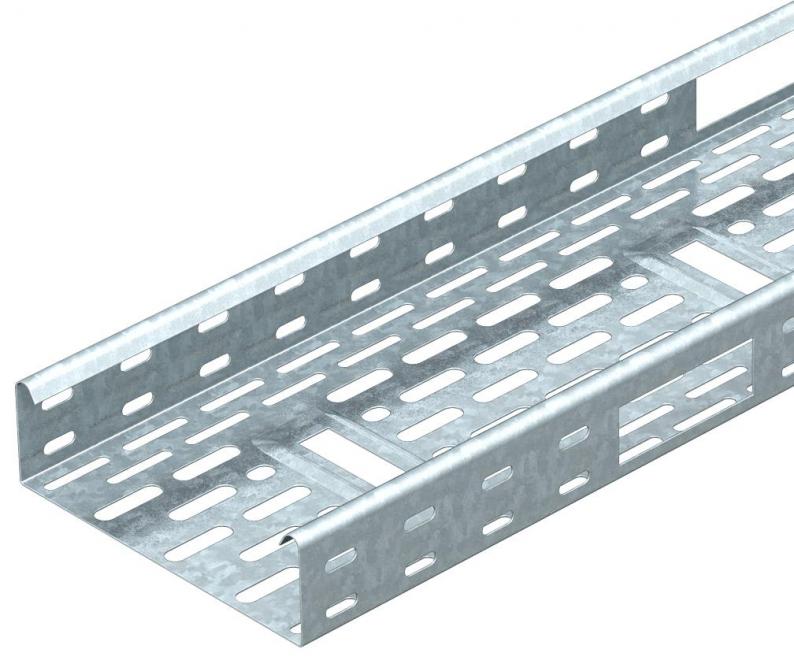

Cable tray IKS 60 FS
Type IKS 610 FS
|Item no. 6087116
|EAN 4012196168439
Item no. / Type
Length
Width
Maintain electrical functions
Plate thickness
Smallest selling unit: 3 m
3m
m
Description
IKS 60 = installation cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Permeable cable tray system to VdS guideline 2092 with 30% hole surface for use under sprinkler systems.
Bottom penetration from width 200 mm. Offset side holes every 300 mm.
Connecting parts should be ordered in the appropriate quantity.
Technical data

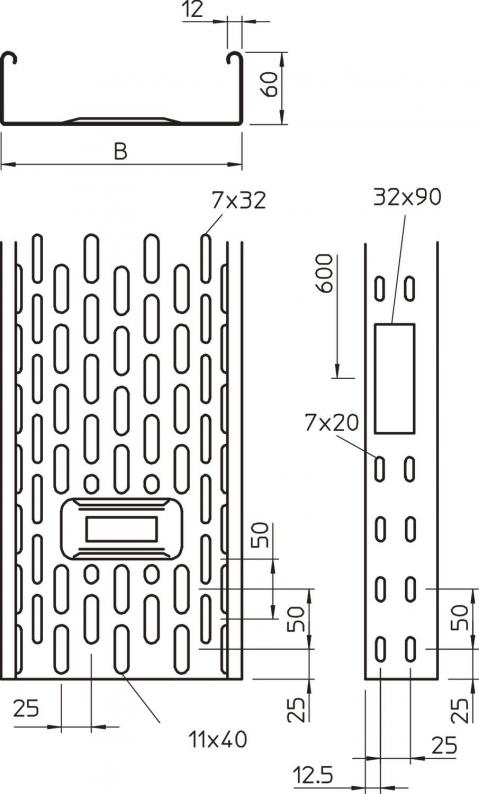

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 58 cm² |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1 mm |
| Tabanda montaj deliği | yes |
| NATO hole pattern | no |
| Usable cross-section | 5800 mm² |
| Üst parçalı | no |
| Ölçü | 60 x 100 |
| Boyut | 60x100x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Sprinkler system use | yes |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Destek aralığı 1,0m | 0,9 kN/m |
|---|---|
| Destek aralığı 1,5m | 0,9 kN/m |
| Destek aralığı 2,0m | 0,7 kN/m |
| Destek aralığı 2,5m | 0,45 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 4,3254 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
IKS 610 FS
3000
100
hayır
1
Strip galvanized
Steel
6087116
IKS 620 FS
3000
200
hayır
1
Strip galvanized
Steel
6087132
IKS 630 FS
3000
300
hayır
1
Strip galvanized
Steel
6087140
IKS 640 FS
3000
400
hayır
1,5
Strip galvanized
Steel
6087159
Width
Plate thickness
IKS 610 FS
Item no.
6087116
Length
3000
Width
100
Maintain electrical functions
hayır
Plate thickness
1
Surface
Strip galvanized
Material
Steel
IKS 620 FS
Item no.
6087132
Length
3000
Width
200
Maintain electrical functions
hayır
Plate thickness
1
Surface
Strip galvanized
Material
Steel
IKS 630 FS
Item no.
6087140
Length
3000
Width
300
Maintain electrical functions
hayır
Plate thickness
1
Surface
Strip galvanized
Material
Steel
IKS 640 FS
Item no.
6087159
Length
3000
Width
400
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
