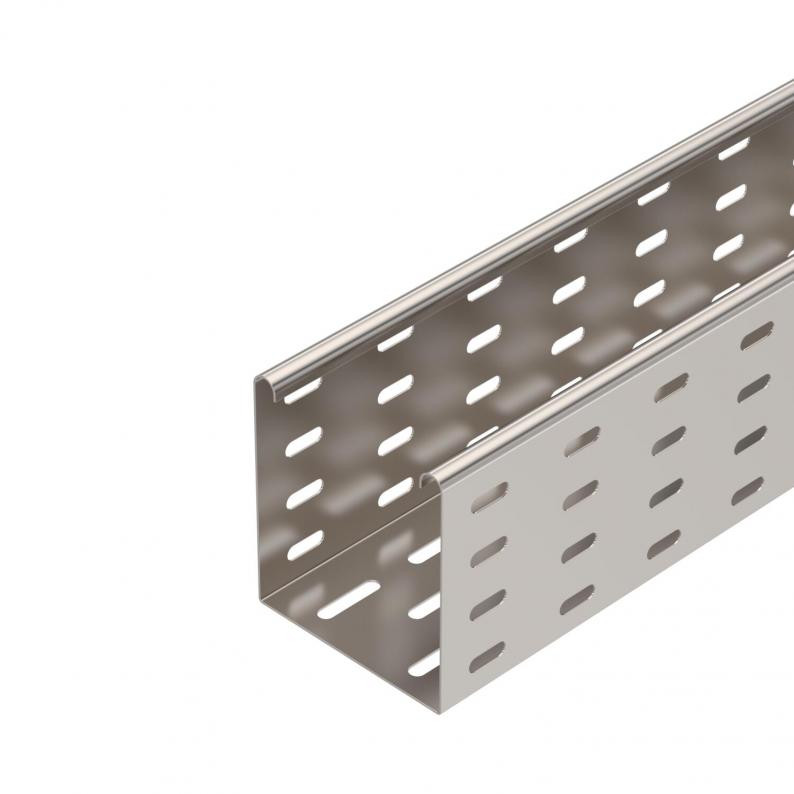

Cable tray MKS 110 A2

Cable tray MKS 110 A2

Type MKS 110 A2
|
Item no. 6060803
|
EAN 4012196392711
Show all variants
Item no. / Type
6060803 / MKS 110 A2
Length
3000 mm
Width
100 mm
Maintain electrical functions
no
Plate thickness
1 mm
Surface
Bright, treated
Material
Stainless steel 1.4301

This item is a discontinued product!

Smallest selling unit: 3 m

m

Description

MKS 110 = medium-duty cable tray system with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray is fastened to the bracket with screws, type FRS M6 x 12.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section110 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğiyes
NATO hole patternno
Usable cross-section11000 mm²
Üst parçalıno
Ölçü110 x 100
Boyut110x100x3000
SurfaceBright, treated
MaterialStainless steel 1.4301
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed

Loads

Destek aralığı 1,5m1,85 kN/m
Destek aralığı 2,0m1,3 kN/m
Destek aralığı 2,5m0,75 kN/m
Destek aralığı 3,0m0,6 kN/m

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya13,3696 kg CO₂e / 1 Meter

Accessories

System accessories
Type
RLVL 110 A2

Smallest selling unit: 10 piece

piece

Type
DRL 100 A2

Smallest selling unit: 3 m

m

Item no. 6062255

Barrier strip 110 A2
Type
TSG 110 A2

Smallest selling unit: 3 m

m

Downloads

0 selected

Data sheet (1)
Declarations (3)
Instructions and Aid (2)
Product images (3)
Tender specifications (1)

Variants

MKS 110 A2
Item no.
6060803
Length
3000
Width
100
Maintain electrical functions
hayır
Plate thickness
1
Surface
Bright, treated
Material
Stainless steel 1.4301
