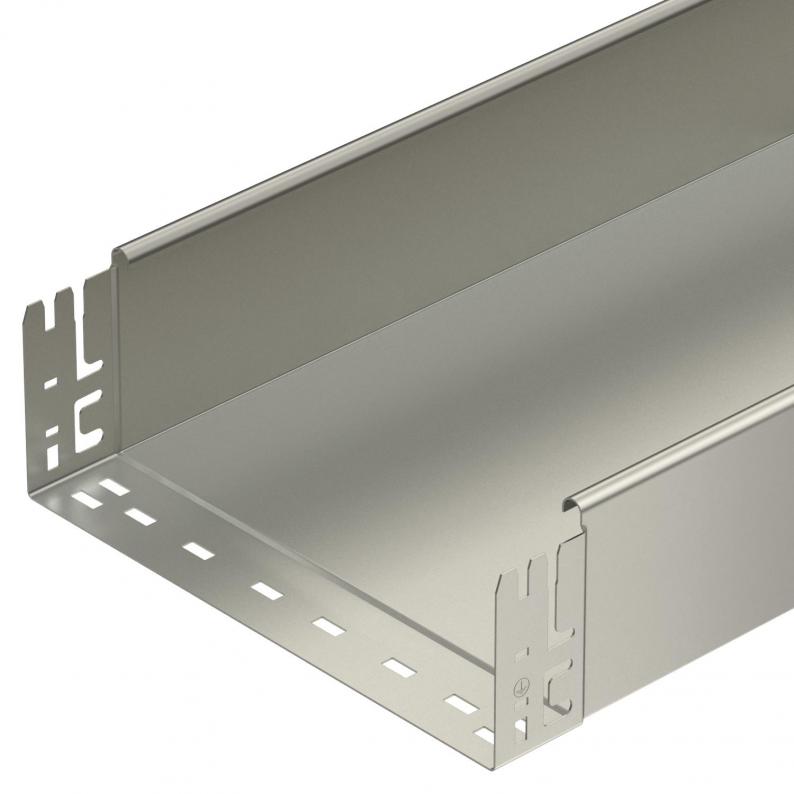

Cable tray MKS-Magic® 110, unperforated A2

Cable tray MKS-Magic® 110, unperforated A2

Type MKSMU 110 A2
|
Item no. 6059416
|
EAN 4012195832249
Show all variants
Item no. / Type
Length
Width
Height
Maintain electrical functions
Plate thickness

Smallest selling unit: 3 m

m

Description

Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The continuous equipotential bonding is guaranteed without additional components.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section108 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğino
NATO hole patternno
Usable cross-section10800 mm²
Üst parçalıno
Boyut110x100x3050
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening

Loads

Destek aralığı 1,5m1,85 kN/m
Destek aralığı 2,0m1,3 kN/m
Destek aralığı 2,5m0,75 kN/m
Destek aralığı 3,0m0,6 kN/m
MKSMU 110 típusú kábeltálca terhelési diagramja

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya14,4194 kg CO2e / 1 Meter

Accessories

System accessories
Type
KTSMV 110 A2

Smallest selling unit: 1 piece

piece

Item no. 6036860

90° bend 110 A2
Type
RB 90 110 A2

Smallest selling unit: 1 piece

piece

Item no. 6042345

Add-on tee 110 A2
Type
RAA 110 A2

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
