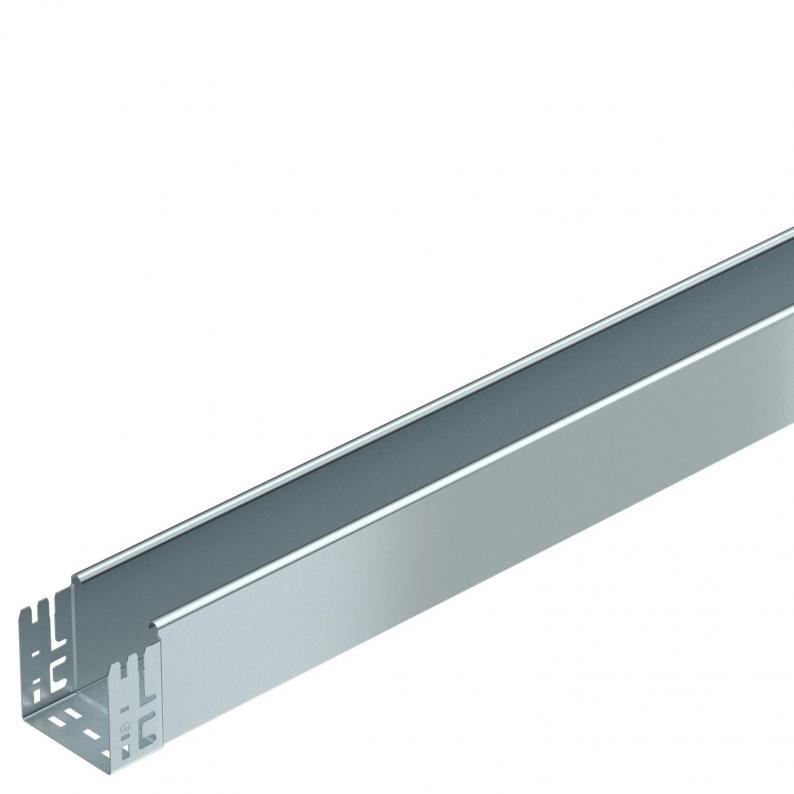

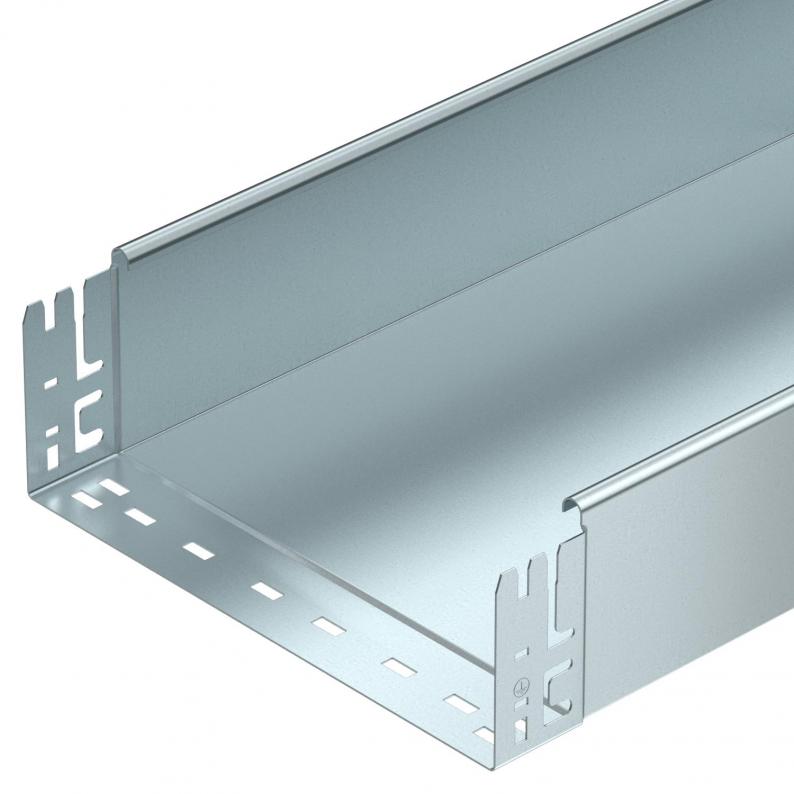

Cable tray MKS-Magic® 110, unperforated FS

Cable tray MKS-Magic® 110, unperforated FS

Type MKSMU 110 FS
|
Item no. 6059382
|
EAN 4012195832003
Show all variants
Item no. / Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Colour

Smallest selling unit: 3 m

m

Description

Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.



Continuous equipotential bonding is guaranteed without additional components.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section108 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğino
NATO hole patternno
Usable cross-section10800 mm²
Üst parçalıno
Boyut110x100x3050
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening

Loads

Destek aralığı 1,5m1,85 kN/m
Destek aralığı 2,0m1,3 kN/m
Destek aralığı 2,5m0,75 kN/m
Destek aralığı 3,0m0,6 kN/m
MKSMU 110 típusú kábeltálca terhelési diagramja

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya6,2071 kg CO2e / 1 Meter
