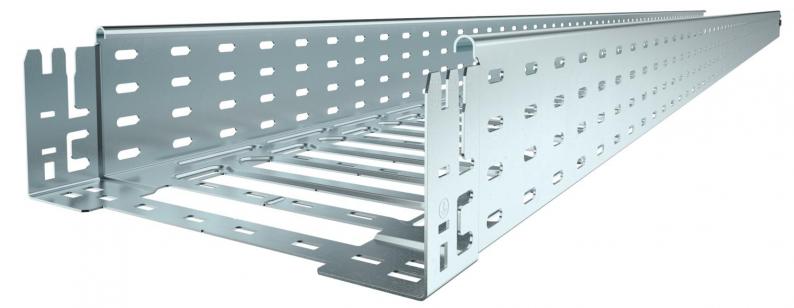

Cable tray SKS-Magic® 110 FS
Type SKSM 110 FS
|Item no. 6059614
|EAN 4012195829560
Item no. / Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Colour
Smallest selling unit: 3 m
3m
m
Description
Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.
From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.
From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
Continuous equipotential bonding is guaranteed without additional components.
Technical data
Dimensions
| Length | 3050 mm |
|---|---|
| Width | 100 mm |
| Height | 110 mm |
| Dimension y | 62 mm |
| Dimension L | 30 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 108 cm² |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,5 mm |
| Tabanda montaj deliği | yes |
| NATO hole pattern | no |
| Usable cross-section | 10800 mm² |
| Üst parçalı | no |
| Boyut | 110x100x3050 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
Loads
| Destek aralığı 1,5m | 3 kN/m |
|---|---|
| Destek aralığı 2,0m | 2,57 kN/m |
| Destek aralığı 2,5m | 2,14 kN/m |
| Destek aralığı 3,0m | 1,7 kN/m |
| Destek aralığı 3,5m | 1,25 kN/m |
| Destek aralığı 4,0m | 0,8 kN/m |
| NEMA load class | 8C |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 9,2837 kg CO2e / 1 Meter |
|---|
