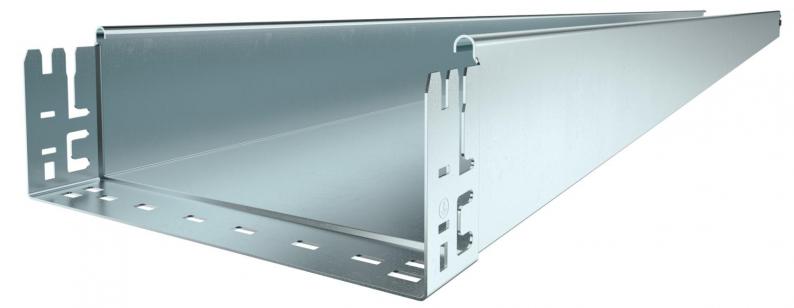

Cable tray SKS-Magic® 110, unperforated FS

Cable tray SKS-Magic® 110, unperforated FS

Type SKSMU 110 FS
|
Item no. 6059836
|
EAN 4012195833925
Show all variants
Item no. / Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Colour

Smallest selling unit: 3 m

m

Description

Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Continuous equipotential bonding is guaranteed without additional components.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section108 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1,5 mm
Tabanda montaj deliğino
NATO hole patternno
Usable cross-section10800 mm²
Üst parçalıno
Boyut110x100x3050
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening

Loads

Destek aralığı 1,5m3 kN/m
Destek aralığı 2,0m2,4 kN/m
Destek aralığı 2,5m1,76 kN/m
Destek aralığı 3,0m1,2 kN/m
Destek aralığı 3,5m0,84 kN/m
Destek aralığı 4,0m0,8 kN/m
SKSMU 110 típusú kábelcsatorna terhelési diagramja

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya9,3069 kg CO2e / 1 Meter

Accessories

System accessories
Type
KTSMV 110 FS

Smallest selling unit: 1 piece

piece

Item no. 6036300

45° bend 110 FS
Type
RB 45 110 FS

Smallest selling unit: 1 piece

piece

Item no. 6036800

90° bend 110 FS
Type
RB 90 110 FS

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
Maintain electrical functions
Colour
SKSMU 110 FS
Item no.
6059836
Length
3050
Width
100
Height
110
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
SKSMU 115 FS
Item no.
6059838
Length
3050
Width
150
Height
110
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
SKSMU 120 FS
Item no.
6059840
Length
3050
Width
200
Height
110
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
SKSMU 130 FS
Item no.
6059842
Length
3050
Width
300
Height
110
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
zinc
SKSMU 140 FS
Item no.
6059844
Length
3050
Width
400
Height
110
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
SKSMU 150 FS
Item no.
6059846
Length
3050
Width
500
Height
110
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
zinc
SKSMU 160 FS
Item no.
6059848
Length
3050
Width
600
Height
110
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
