Closed FireBox T100, empty
Type T100E 0VA
|Item no. 7205780
|EAN 4012196820238
Item no. / Type
Clear internal dimensions
Smallest selling unit: 1 piece
1piece
piece
Description

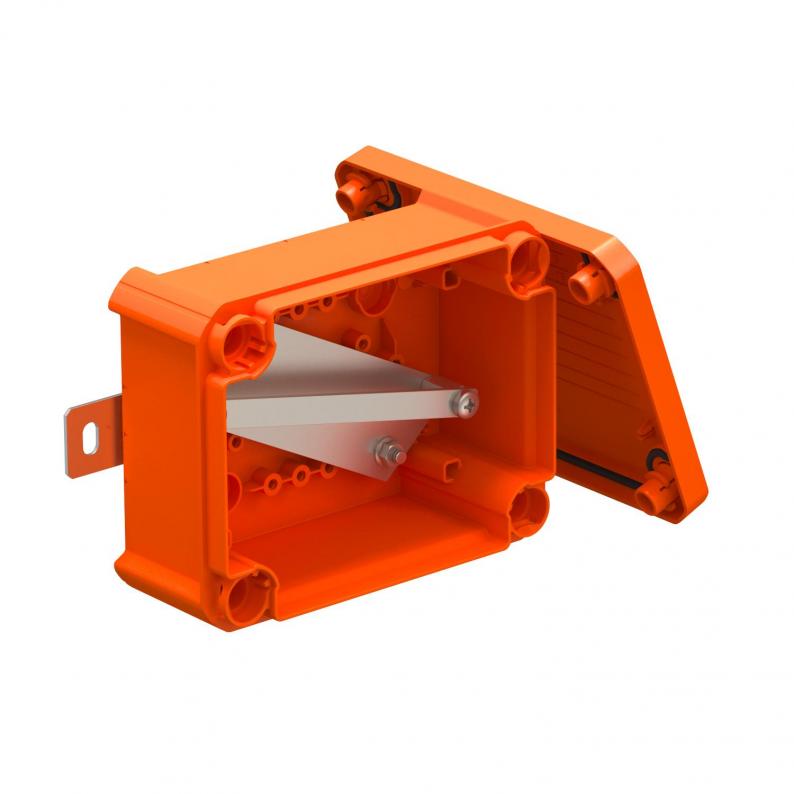

Unequipped, closed connection or junction box for free termination with ceramic terminals and cable glands. Dimension A states the available support rail length for the wiring terminals. Sufficiently large wiring compartment through diagonally arranged support rail. Fastening on easily accessible external flaps made of stainless steel. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90.
Technical data

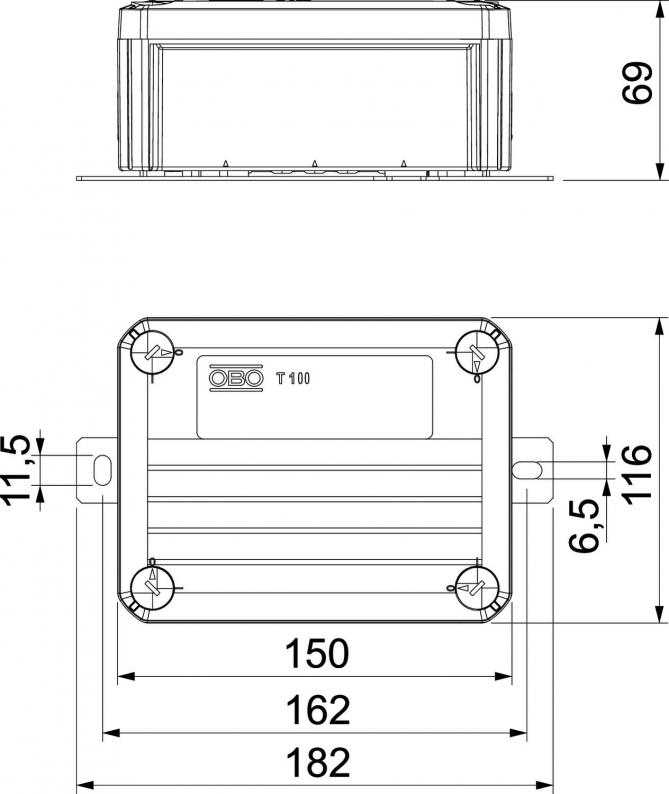

Dimensions
| Length | 150 mm |
|---|---|
| Width | 116 mm |
| Height | 67 mm |
| Clear internal dimensions | 136x102x57 mm |
| Dimension L | 150 mm |
| Dimension A | 101 mm |
| Dimension B | 116 mm |
| Dimension H | 67 mm |
| Dimension L1 | 162 mm |
| Dimension L2 | 182 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Arkadan giriş | no |
| Koruma sınıfı | IP66 |
| Kapaklı | yes |
| Sealable | no |
| Maintain electrical functions | E 90 |
| Ekranlamalı | no |
| Anma kesiti min. | 0,5 mm² |
| Anma kesiti maks. | 6 mm² |
| Equipment | Support rail |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Boyut | 150x116x67 |
| Material | Polypropylene |
| Colour | Pastel orange; RAL 2003 |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 2,3617 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Clear internal dimensions
Koruma sınıfı
Colour
Item no.
T100E 0VA
136x102x57
IP66
Pastel orange; RAL 2003
7205780
T160E 0VA
176x135x67
IP66
Pastel orange; RAL 2003
7205782
T250E 0VA
225x173x86
IP66
Pastel orange; RAL 2003
7205784
T350E 0VA
267x182x110
IP66
Pastel orange; RAL 2003
7205786
