Connection plate for one isCon® cable

Type isCon AP1-16 VA

Item no. 5408026

EAN 4012195674696

Item no. / Type

5408026 / isCon AP1-16 VA

Uyumluluk

Rd 8-10 x Rd 16 mm

Smallest selling unit: 1 piece

piece

Description

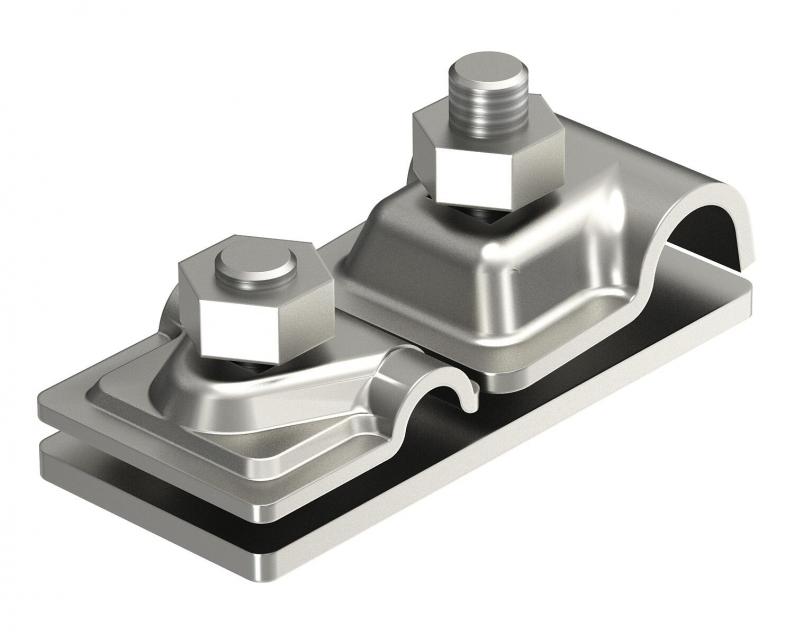

Connection plate to connect an isCon® conductor with air-termination rod Ø 16 mm, tested up to 150 kA (lightning protection class II)

Connection	Round conductor
Lightning current carrying capacity	H1/150 kA
Uyumluluk	Rd 8-10 x Rd 16 mm

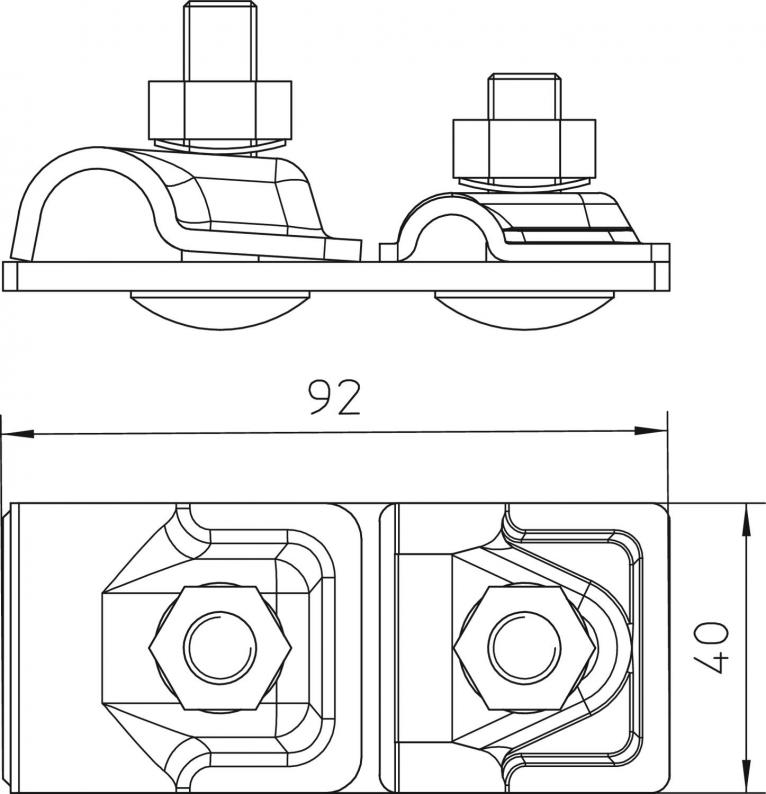

Boyut	16x8-10mm
Material	Stainless steel 1.4301

CO2 ayak izi (GWP) beşikten kapıya	1,7596 kg CO2e / 1 Piece
