Cross-connector for TP support profiles, free-standing system
Type KV FT
|Item no. 5901255
|EAN 4012197394523
Item no. / Type
5901255 / KV FT
DELIVERY TIME ON REQUEST
Smallest selling unit: 50 piece
50piece
piece
Description

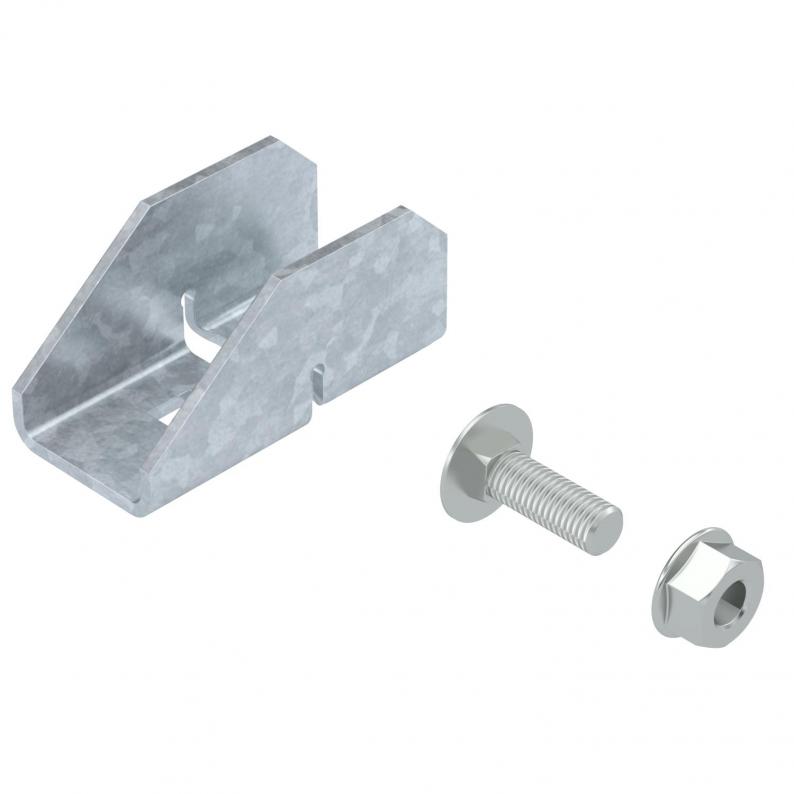

Cross-connector to connect support profiles for free-standing photovoltaic systems. Fastening with pre-installed M12 screw, screw-on with Torx 40 wrench.
Technical data

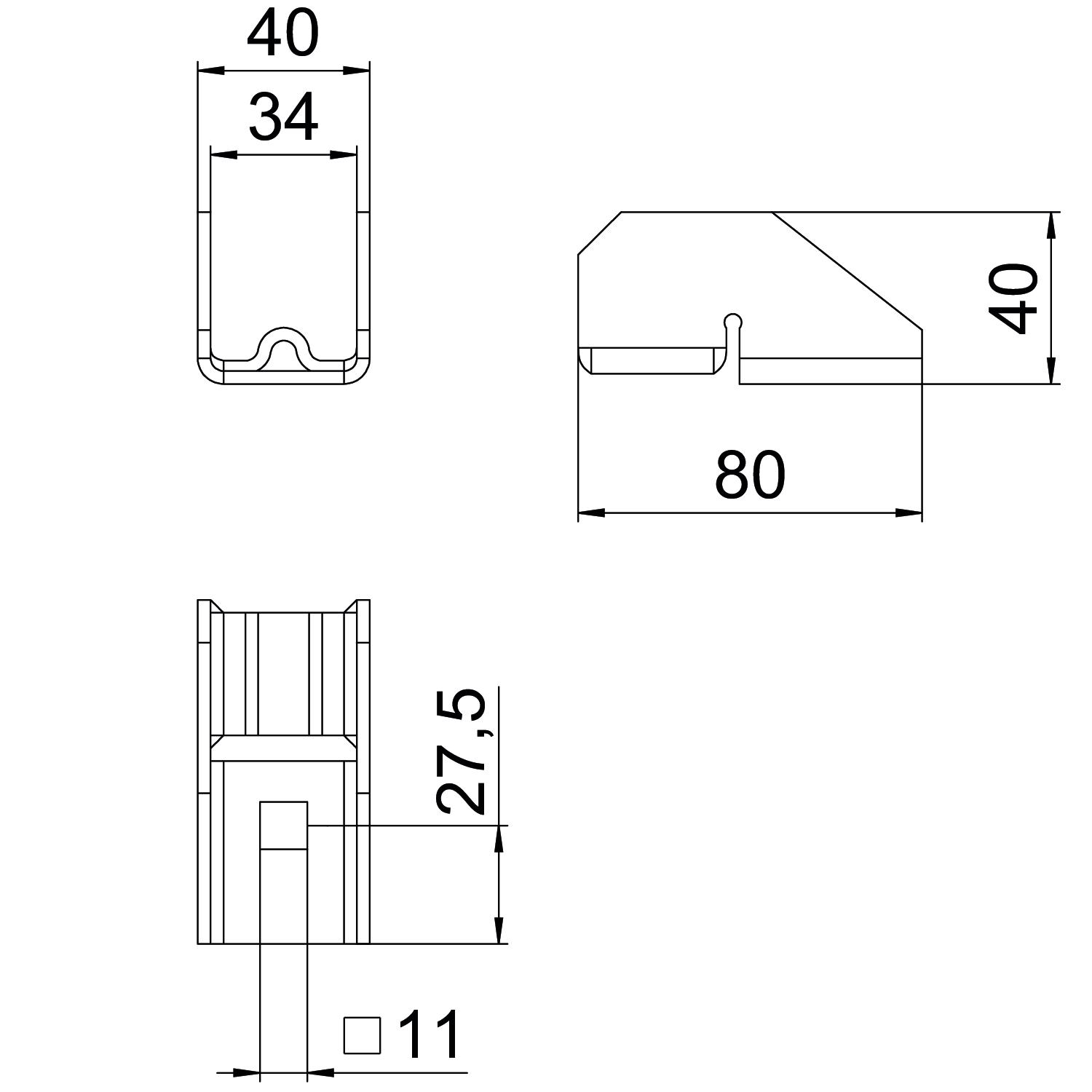

Dimensions
| Width | 40 mm |
|---|---|
| Height | 40 mm |
Technical data
| Adjustable | no |
|---|---|
| Depth | 80 mm |
| Dimension | 40x40x80 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Photovoltaic connection and fastening element version | Cross-connectors |
| With module earthing | no |
Environmental Data
0,9953 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,9953 kg CO2e / 1 Piece |
|---|
