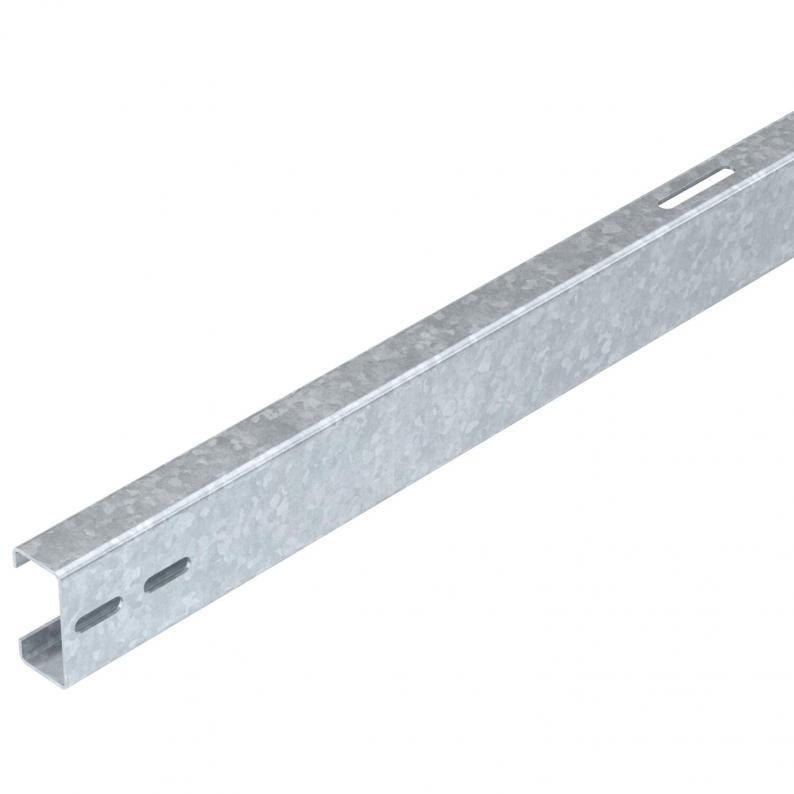

Support profile for PV module mounting, free-standing system

Support profile for PV module mounting, free-standing system

Type TP 1050 FT
|
Item no. 5900510
|
EAN 4012197396947
Show all variants
Item no. / Type
Length
DELIVERY TIME ON REQUEST

Smallest selling unit: 1 piece

piece

Description

Support profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.
  • CO₂ footprint (PCF)

Technical data

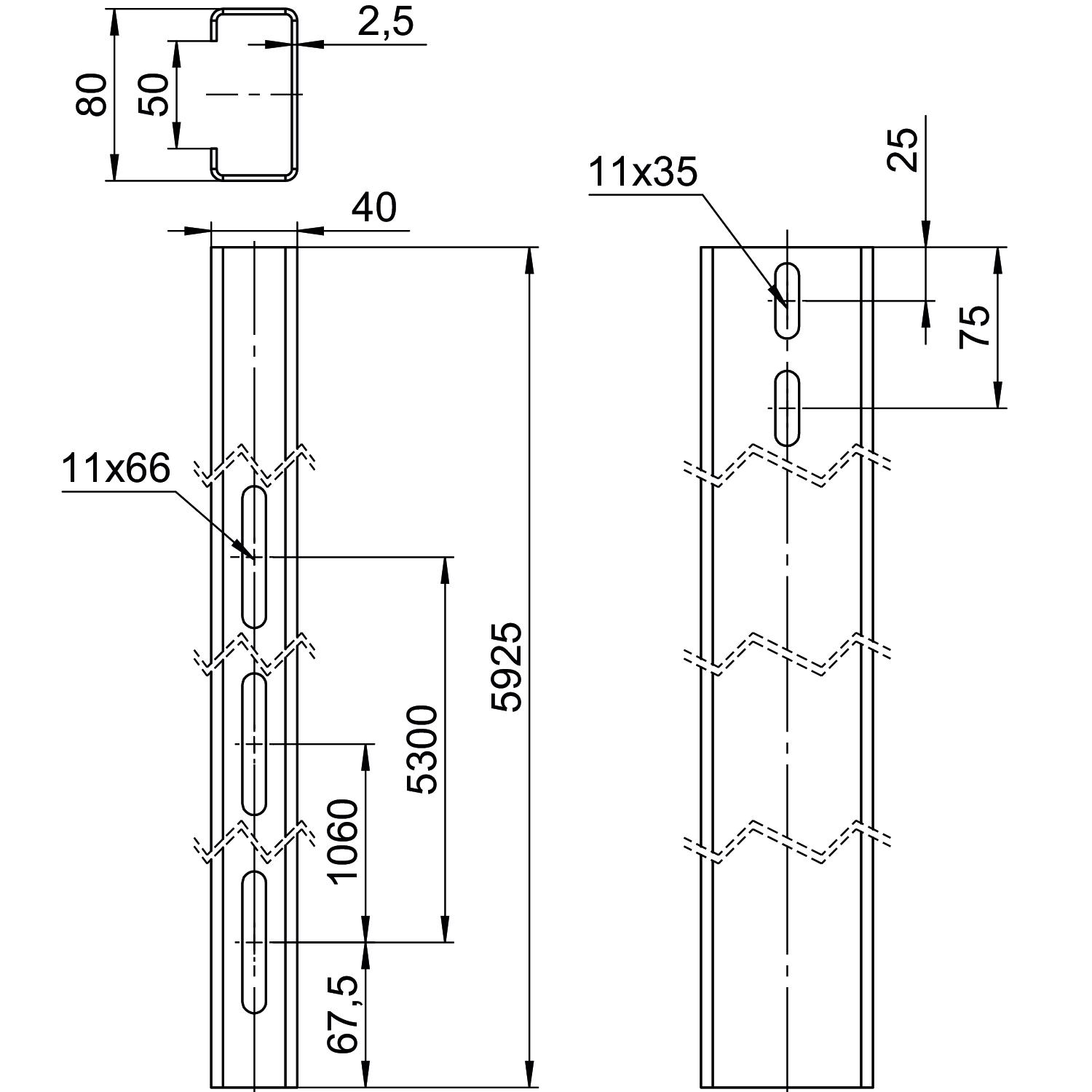

Dimensions

Length5925 mm
Width40 mm
Height80 mm

Technical data

Boyut40x80x5925
SurfaceHot-dip galvanised
MaterialSteel
ColourÇinko grisi
Cable duct, integratedno
Cable duct optionalno
Section modulus Sx10600 mm³
Section modulus Sy5200 mm³
Module width min.1040 mm
Module width max.1050 mm
CO2 ayak izi (GWP) beşikten kapıya40,7752 kg CO2e / 1 Adet

Accessories

System accessories
Type
VT 10S FT

Smallest selling unit: 1 piece

piece

Type
VT 10M FT

Smallest selling unit: 1 piece

piece

Type
VT 10L FT

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Length
TP 1000 FT
Item no.
5900500
Length
5650
TP 1010 FT
Item no.
5900502
Length
5705
TP 1020 FT
Item no.
5900504
Length
5760
TP 1030 FT
Item no.
5900506
Length
5815
TP 1040 FT
Item no.
5900508
Length
5780
TP 1050 FT
Item no.
5900510
Length
5925
TP 1060 FT
Item no.
5900512
Length
5980
TP 1100 FT
Item no.
5900520
Length
5090
TP 1140 FT
Item no.
5900522
Length
5270
TP 1310 FT
Item no.
5900530
Length
6035
