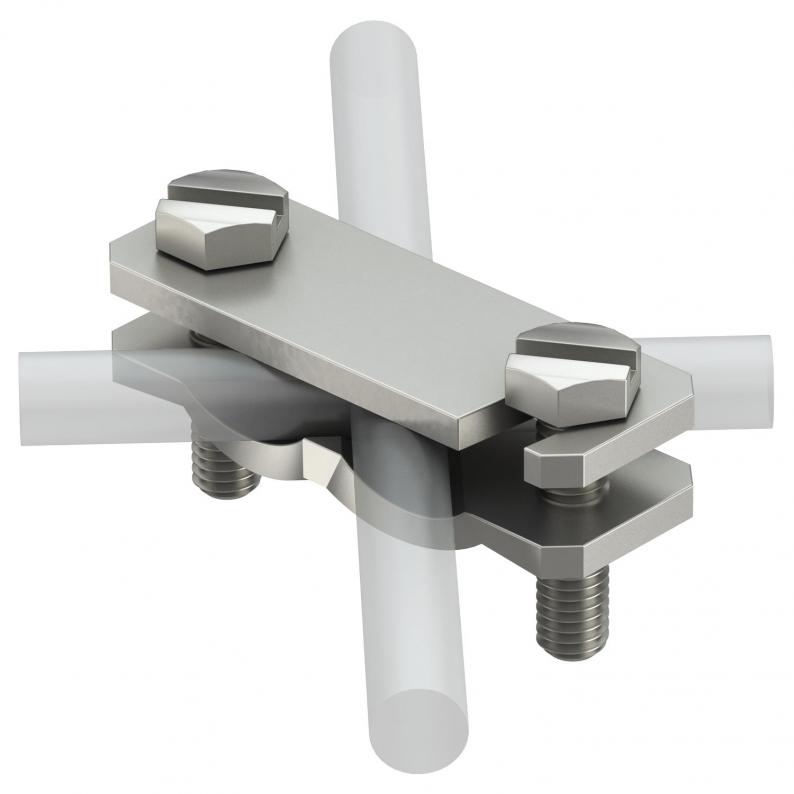

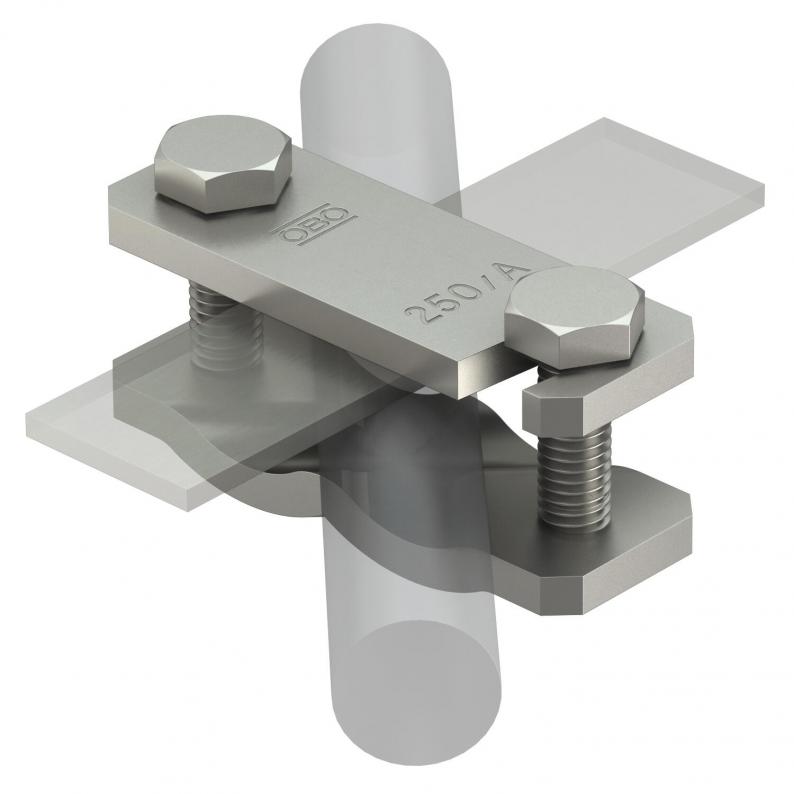

Diagonal clamp for flat conductors and round conductors A2

Type 250 A-VA

Item no. 5313023

EAN 4012195740476

Item no. / Type

5313023 / 250 A-VA

Uyumluluk

Rd 6-22/max. FL50 mm

Smallest selling unit: 10 piece

piece

Description

• For reinforced steels Ø 6–22 mm and flat conductors 50 x 4
• Mounted with bolts M10 x 40
• Simple mounting through open slot

Ayırma plakası	no
Type of fastening screw	Hexagonal bolt
Type of connector	Connectors
Suitable for connection	Miscellaneous
Lightning current carrying capacity	H/100 kA
Round conductor diameter, conductor 1, min.	6 mm
Round conductor diameter, conductor 1, max.	22 mm
Flat conductor width, conductor 2, min.	0
Flat conductor width, conductor 2, max.	50
Uyumluluk	Rd 6-22/max. FL50 mm

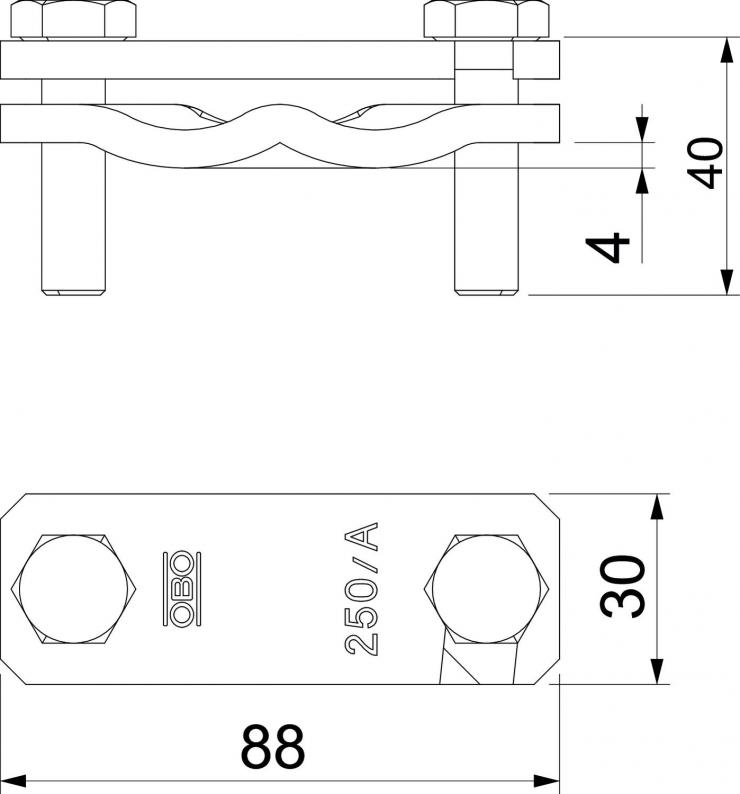

Boyut	88x30x45
Material	Stainless steel 1.4301

Packaging made completely from recycled cardboard.	yes
Packaging without plastic	yes

CO2 ayak izi (GWP) beşikten kapıya	1,1873 kg CO2e / 1 Piece
