Empty housing X 01

Empty housing X 01

Type X01C LGR
|
Item no. 2005450
|
EAN 4012196577569
Show all variants
Item no. / Type
Clear internal dimensions
Colour

Smallest selling unit: 1 piece

piece

Description

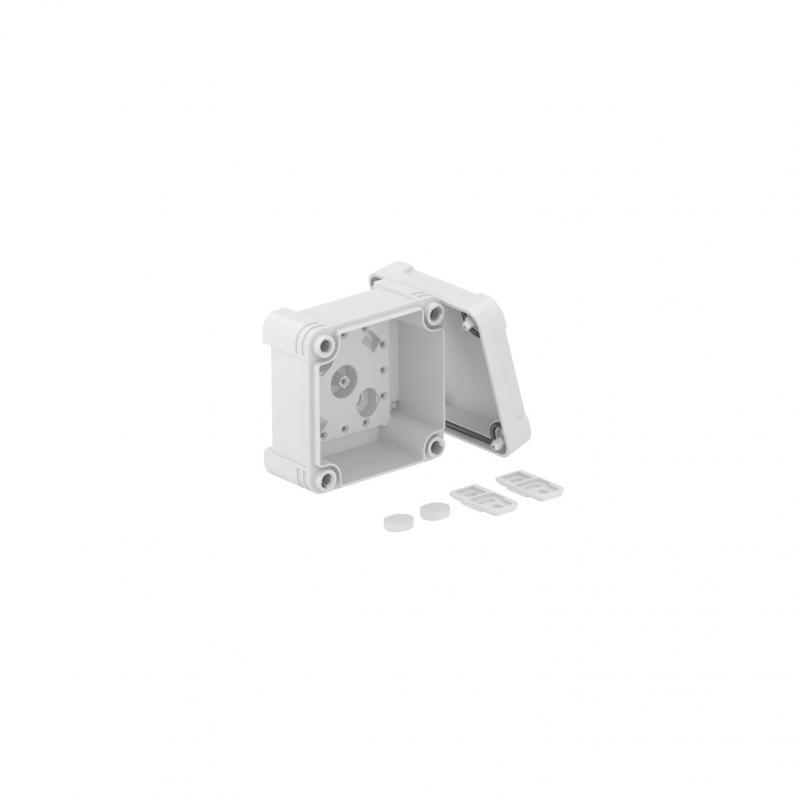

Junction box for the connection of cables and lines indoors and in outdoor areas. Square design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.


  • ENEC Austria
  • Österreichischer Verband für Elektrotechnik, Avusturya(ÖVE)
  • Aleve dayanıklı 650°C
  • UV'YE KARŞI DİRENÇLİ
  • Halojen içermez; Klor, flüor ve brom içermez
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Koruma sınıfı IP 67
  • IK Code 09
  • CO₂ footprint (PCF)

Technical data

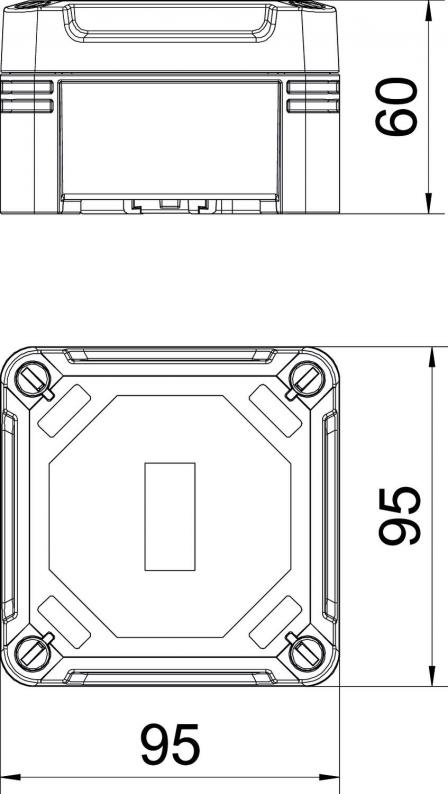

Dimensions

Length95 mm
Width95 mm
Height60 mm
Clear internal dimensions85x85x45 mm

Technical data

Koruma sınıfıIP67
Kapaklıevet
Extension optionhayır
Cover fasteningScrewed
ShapeSquare
Weatherproofevet
Protection rating IK codeIK09
Suitable for outdoor useevet
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut95x95x60
MaterialPolycarbonate
ColourLight grey; RAL 7035

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,6807 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
X01C LGR
Item no.
2005450
Clear internal dimensions
85x85x45
Koruma sınıfı
IP67
Colour
Light grey; RAL 7035
X01C LGR-TR
Item no.
2005520
Clear internal dimensions
85x85x45
Koruma sınıfı
IP67
Colour
grey / transparent
X01C SW
Item no.
2005590
Clear internal dimensions
85x85x45
Koruma sınıfı
IP67
Colour
Graphite black; RAL 9011
