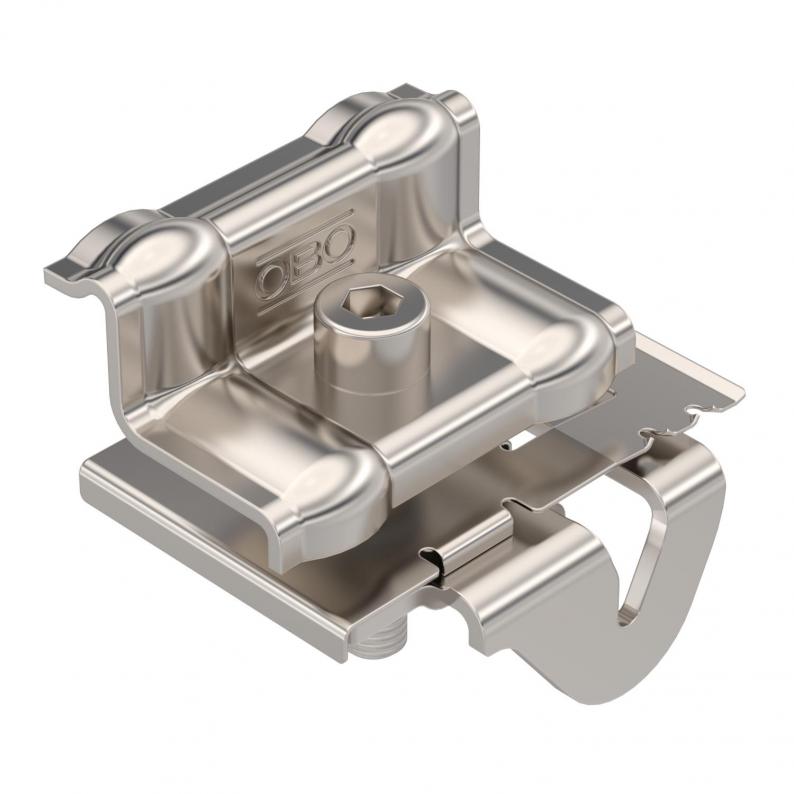

End clamp for PV module mounting, free-standing system

End clamp for PV module mounting, free-standing system

Type KLE 20 A2
|
Item no. 5901070
|
EAN 4012197390990
Show all variants
Item no. / Type
Height
For frame height min.
DELIVERY TIME ON REQUEST

Smallest selling unit: 50 piece

piece

Description

End clamp for fastening photovoltaic modules on support profiles of free-standing systems. Lockable pre-fastening of the module frames on the support profile. Suitable for slot width 10 mm. Lockable fastening of the PV module with Torx 30 wrench.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • CO₂ footprint (PCF)

Technical data

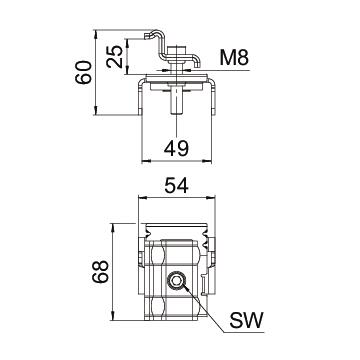

Dimensions

Width54 mm
Height60 mm

Technical data

Ayarlanabilirhayır
Depth68,5 mm
Boyut55x70x54
Dimension-
MaterialStainless steel 1.4301
Colourstainless steel
Photovoltaic connection and fastening element versionEnd terminal
For frame height min.20 mm
With module earthinghayır
CO2 ayak izi (GWP) beşikten kapıya0,8167 kg CO2e / 1 Adet

Accessories

System accessories
Type
TP 1000 FT

Smallest selling unit: 1 piece

piece

Type
TP 1010 FT

Smallest selling unit: 1 piece

piece

Type
TP 1020 FT

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Height
For frame height min.
KLE 20 A2
Item no.
5901070
Height
60
For frame height min.
20
KLE 25 A2
Item no.
5901072
Height
65
For frame height min.
25
KLE 30 A2
Item no.
5901074
Height
70
For frame height min.
30
KLE 35 A2
Item no.
5901076
Height
75
For frame height min.
35
KLE 40 A2
Item no.
5901078
Height
80
For frame height min.
40
KLE 45 A2
Item no.
5901080
Height
85
For frame height min.
45
KLE 50 A2
Item no.
5901082
Height
90
For frame height min.
50
