Grip 20 flame-resistant
Type 2031 F 20
|Item no. 2205412
|EAN 4012195651659
Item no. / Type
2205412 / 2031 F 20
Kablo NYM 3 x 1,5 sayısı
20
Smallest selling unit: 50 piece
50piece
piece
Description

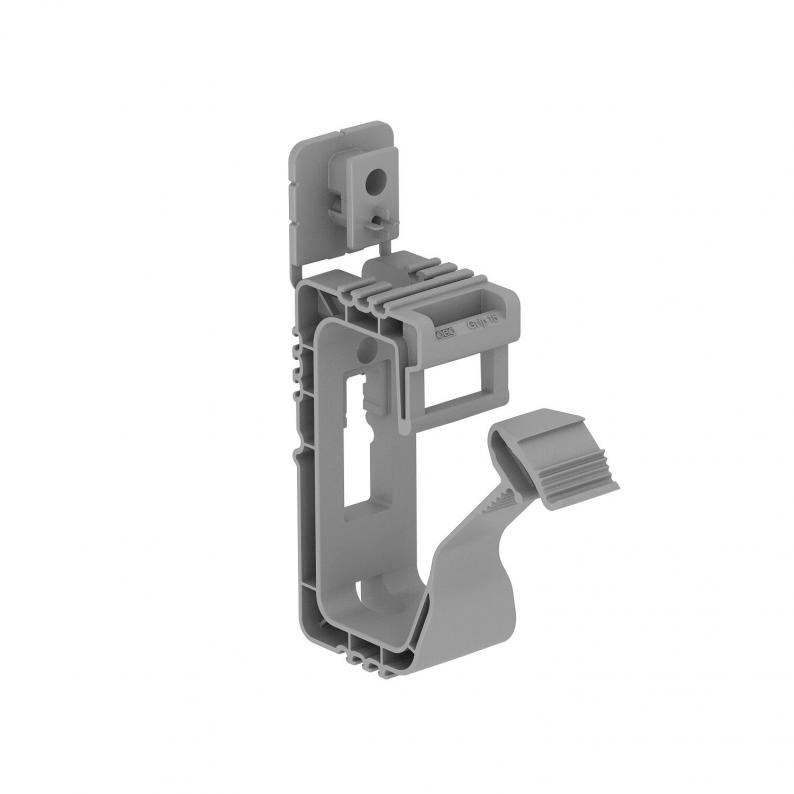

Collection clamp with moulded fastening element, for mounting up to 20 cables NYM 3 x 1.5 mm2 on walls or ceilings. Fastening with impact anchor or push-fit anchor. Fastening hole: Ø 6 mm. Recommended fastening distance of 250–400 cm when fully assigned, depending on the respective national specifications/norms. Flame resistant to DIN VDE 0471/DIN IEC 695 Part 2-1, test temperature 960 °C.
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
Technical data
Technical data
| Maintain electrical functions | hayır |
|---|---|
| Kablo NYM 3 x 1,5 sayısı | 20 |
| Halojen İçermez | evet |
| Aleve karşı dayanıklı tipi | evet |
| With anchor | hayır |
| Kırılma yükü | 0,32 kN |
| Aleve dayanıklı | VDE 0471/DIN 695 Kısım 2-1'e uygun aleve dayanıklılık, Test sıcaklığı 960°C |
| Boyut | 20x NYM3x1,5 |
| Material | Polypropylene |
| Colour | Stone grey; RAL 7030 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0941 kg CO2e / 1 Adet |
|---|
