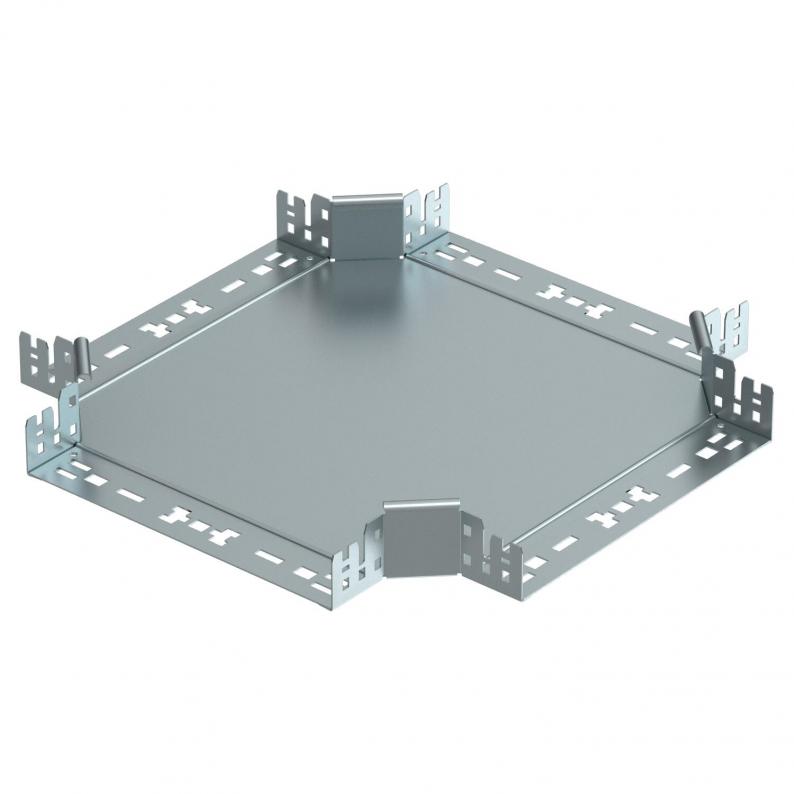

Magic cross-over 60 FS
Type RKM 630 FS
|Item no. 7027007
|EAN 4012195927419
Item no. / Type
7027007 / RKM 630 FS
Width
300 mm
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
Cross-over with quick connector system. For all cable tray types of 60 mm side height.
Technical data
Dimensions
| Width | 300 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 300 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,25 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Yan parça kalınlığı | 1,25 mm |
| Boyut | 60x300 |
| Surface | Strip galvanized |
| Material | Steel |
| Fire protection | Use of fire protection ceilings |
| Type of connector, cable support system | Click fastening |
