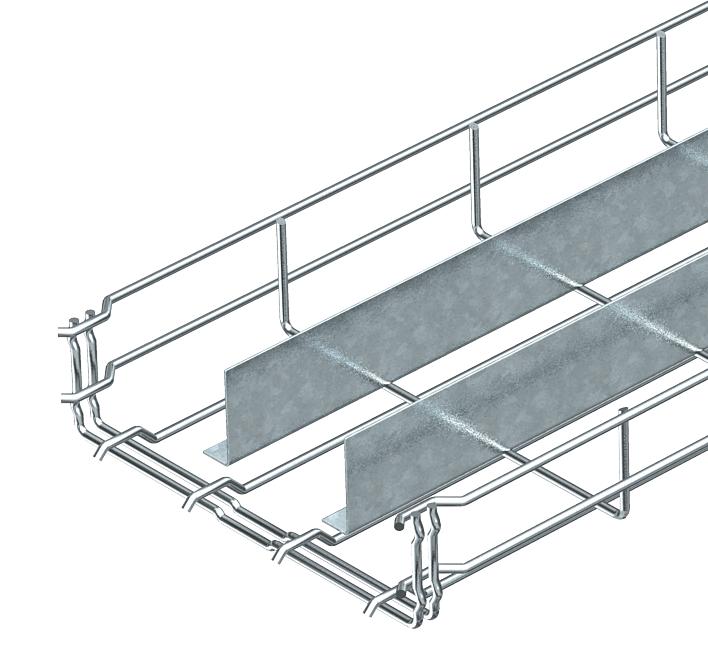

Mesh cable tray GR-Magic® 55 with 2 barrier strip
Type GRM-2T 55 200 G
|Item no. 6006395
|EAN 4012195438649
Item no. / Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Tel çapı
Smallest selling unit: 3 m
3m
m
Description

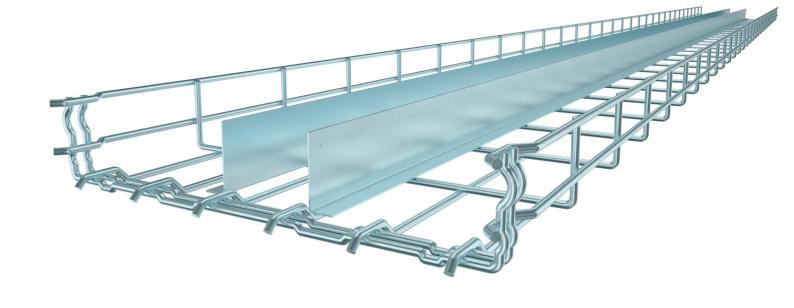

Mesh cable tray with shaped connector and two welded barrier strips of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm.
Technical data

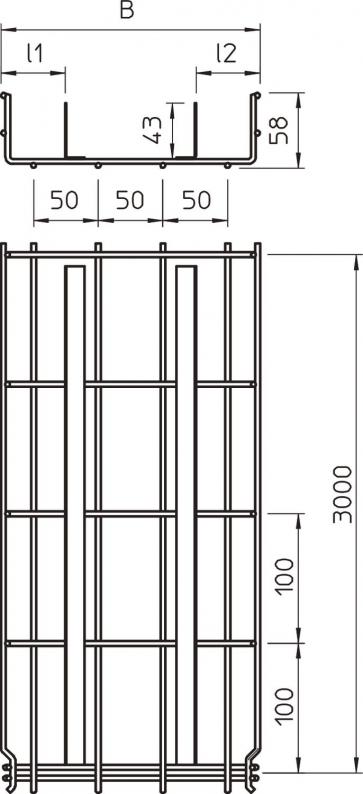

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 55 mm |
| Dimension A | 69 mm |
| Dimension B | 200 mm |
| Dimension l1 | 69 mm |
| Ölçü l2 (mm) | 69 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 87 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 8700 mm² |
| Integrated partition | Two |
| Screwless connector | yes |
| Profile shape | U-shaped |
| Tel çapı | 3,9 mm |
| Boyut | 55x200x3000 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
Loads
| Destek aralığı 1,0m | 2 kN/m |
|---|---|
| Destek aralığı 1,5m | 1 kN/m |
| Destek aralığı 2,0m | 0,4 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 3,4531 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
