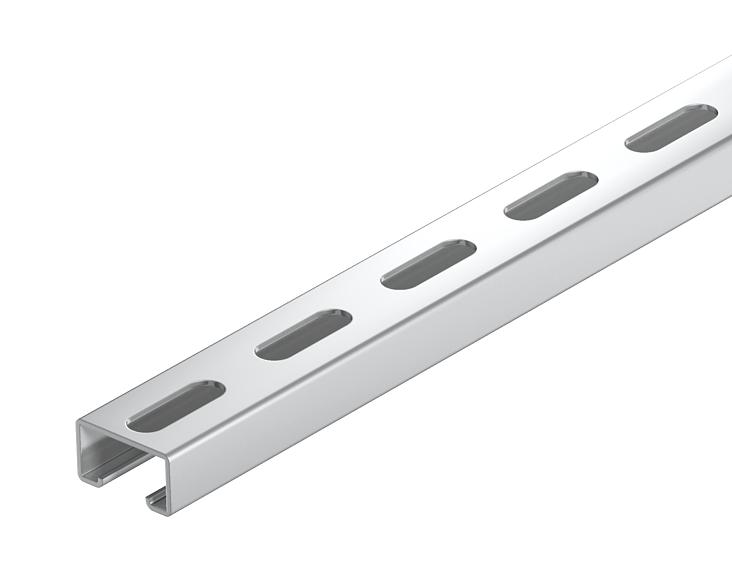

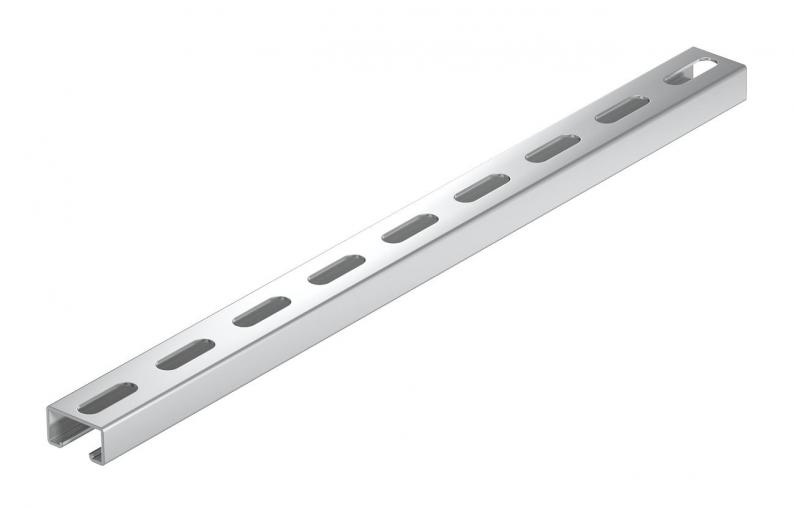

MS4022 mounting rail, heavy duty, slot 18 mm, A2, perforated

MS4022 mounting rail, heavy duty, slot 18 mm, A2, perforated

Type MS4022P6000A2
|
Item no. 1121901
|
EAN 4012195049999
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 6 m

m

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Yarık uzunluğu 18 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • CO₂ footprint (PCF)

Technical data

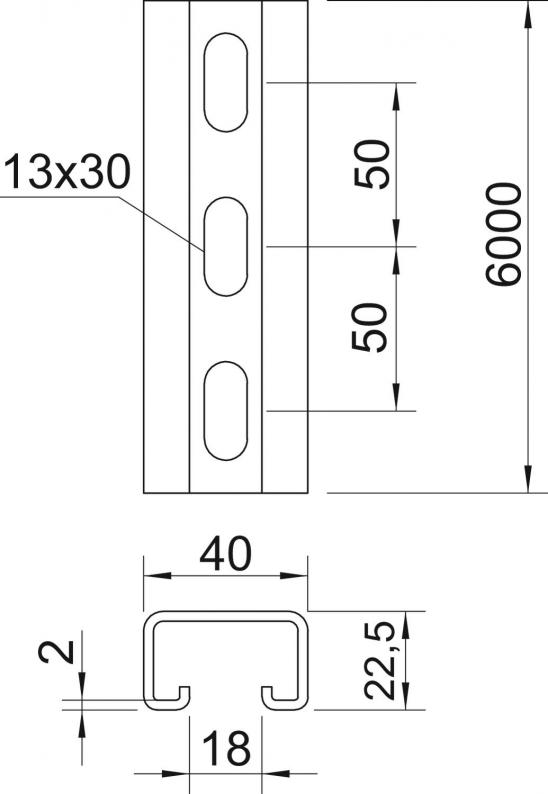

Dimensions

Length6000 mm
Width40 mm
Height22,5 mm
Dimension L6000 mm

Technical data

Maintain electrical functionshayır
Yarık uzunluğu18 mm
Material thickness2 mm
Statik değer A1,74 cm²
Statik değer Iy1,18 cm⁴
Statik değer Iz4,45 cm⁴
Statik değer Wy1,05 cm³
Statik değer Wz2,23 cm³
Profile shapeC profil
Delik türüSırtı delikli
Drill hole spacing, centre50 mm
With perforationevet
Breakablehayır
With toothinghayır
Version forTekli profil
Boyut6000x40x22,5
SurfaceBright, treated
MaterialStainless steel 1.4301

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya7,626 kg CO2e / 1 Metre

Accessories

Mounting accessories

Item no. 1147134

Slide nut A4
Type
MS40SN M10 A4

Smallest selling unit: 50 piece

piece

Item no. 1148160

Hook-head screw A4
Type
MS40HB M10x30 A4

Smallest selling unit: 50 piece

piece

Type
2056U 12 A2

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (4)
Tender specifications (1)

Variants

Length
MS4022P6000A2
Item no.
1121901
Length
6000
Width
40
Height
22,5
Material thickness
2
Surface
Bright, treated
MS4022P2000A2
Item no.
1121960
Length
2000
Width
40
Height
22,5
Material thickness
2
Surface
Bright, treated
