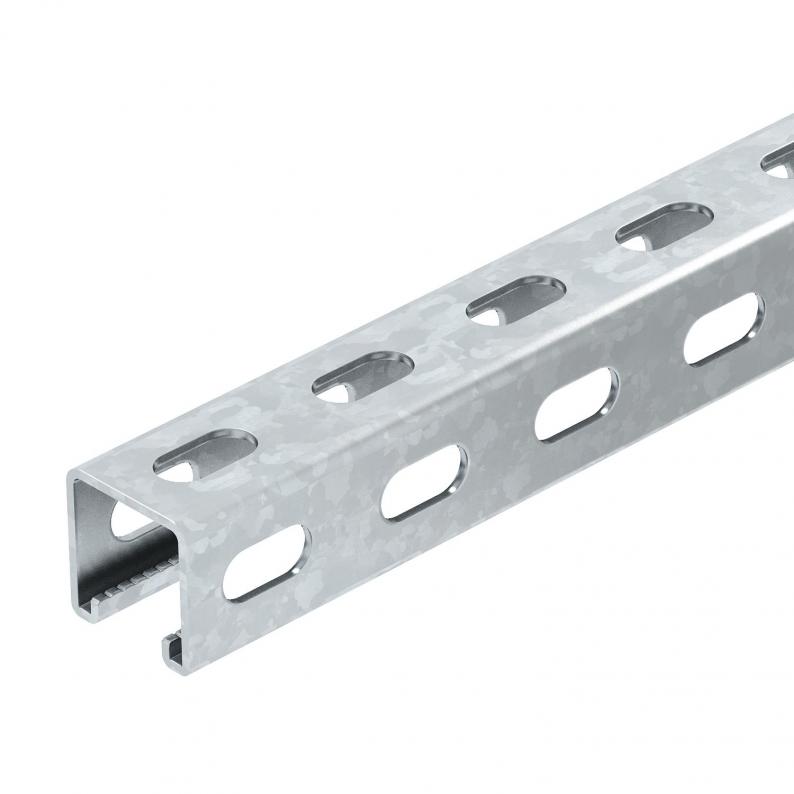

MS4141 mounting rail, slot 22 mm, FS, side perforation

MS4141 mounting rail, slot 22 mm, FS, side perforation

Type MSL4141PP1000FS
|
Item no. 1123008
|
EAN 4012195697923
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 1 m

m

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Yarık uzunluğu 22 mm
  • Fonksiyon koruma sınıfı E30
  • Fonksiyon koruma sınıfı E90
  • CO₂ footprint (PCF)

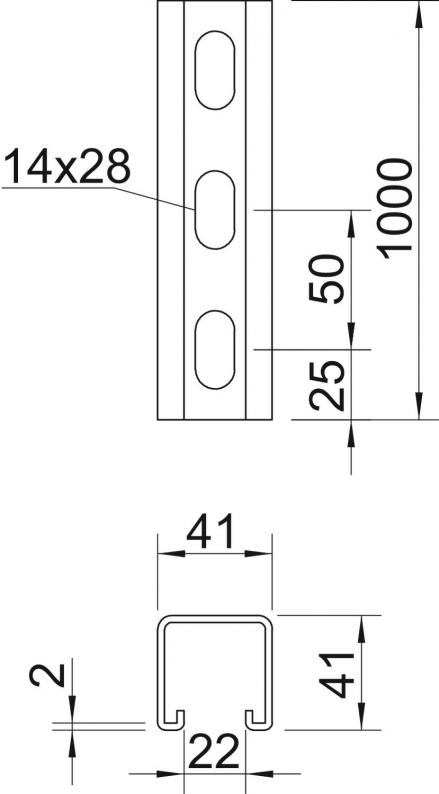

Technical data

Dimensions

Length1000 mm
Width41 mm
Height41 mm
Dimension L1000 mm

Technical data

Maintain electrical functionsevet
Yarık uzunluğu22 mm
Material thickness2 mm
Statik değer A2,45 cm²
Statik değer Iy5,18 cm⁴
Statik değer Iz7,56 cm⁴
Statik değer Wy2,51 cm³
Statik değer Wz2,69 cm³
Hole size14x28
Profile shapeC profil
Delik türü3 tarafı delikli
Drill hole spacing, centre50 mm
With perforationhayır
Breakablehayır
With toothingevet
Version forTekli profil
Boyut1000x41x41
SurfaceStrip galvanized
MaterialSteel

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya4,7416 kg CO2e / 1 Metre

Accessories

System accessories

Item no. 1147214

Slide nut ZL
Type
MS41SN M10 ZL

Smallest selling unit: 50 piece

piece

Item no. 1148322

Hammer-head bolt ZL
Type
MS41HB M10x30 ZL

Smallest selling unit: 50 piece

piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Variants

Length
MSL4141PP1000FS
Item no.
1123008
Length
1000
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141PP3000FS
Item no.
1123010
Length
3000
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141PP6000FS
Item no.
1123012
Length
6000
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
