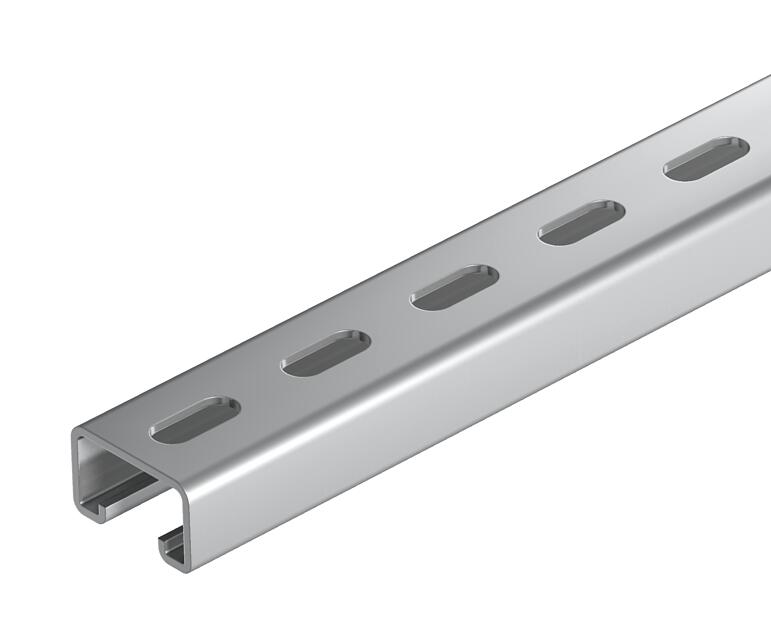

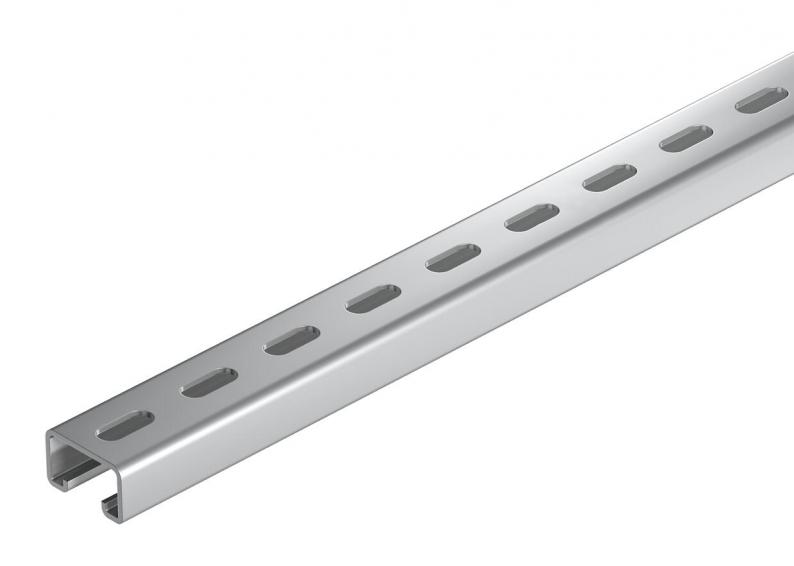

MS5030 mounting rail, slot 22 mm, A2, perforated

MS5030 mounting rail, slot 22 mm, A2, perforated

Type MS5030P2000A2
|
Item no. 1121480
|
EAN 4012195049272
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 2 m

m

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length2000 mm
Width50 mm
Height30 mm
Dimension L2000 mm

Technical data

Maintain electrical functionsno
Slot width18 mm
Material thickness3 mm
Static value A3,39 cm²
Static value ly3,99 cm⁴
Static value lz13,11 cm⁴
Static value Wy3,95 cm³
Static value Wz6,38 cm³
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingno
Version forSingle profile
Dimension2000x50x30
SurfaceBright, treated
MaterialStainless steel 1.4301

Environmental Data

14,4446 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate14,4446 kg CO2e / 1 Meter

Accessories

System accessories

Item no. 1147190

Slide nut A4
Type
MS50SN M10 A4

Smallest selling unit: 50 piece

piece

Item no. 1148268

Hook-head screw A4
Type
MS50HB M10x30 A4

Smallest selling unit: 50 piece

piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
MS5030P2000A2
Item no.
1121480
Length
2000
Width
50
Height
30
Material thickness
3
Surface
Bright, treated
MS5030P6000A2
Item no.
1121499
Length
6000
Width
50
Height
30
Material thickness
3
Surface
Bright, treated
