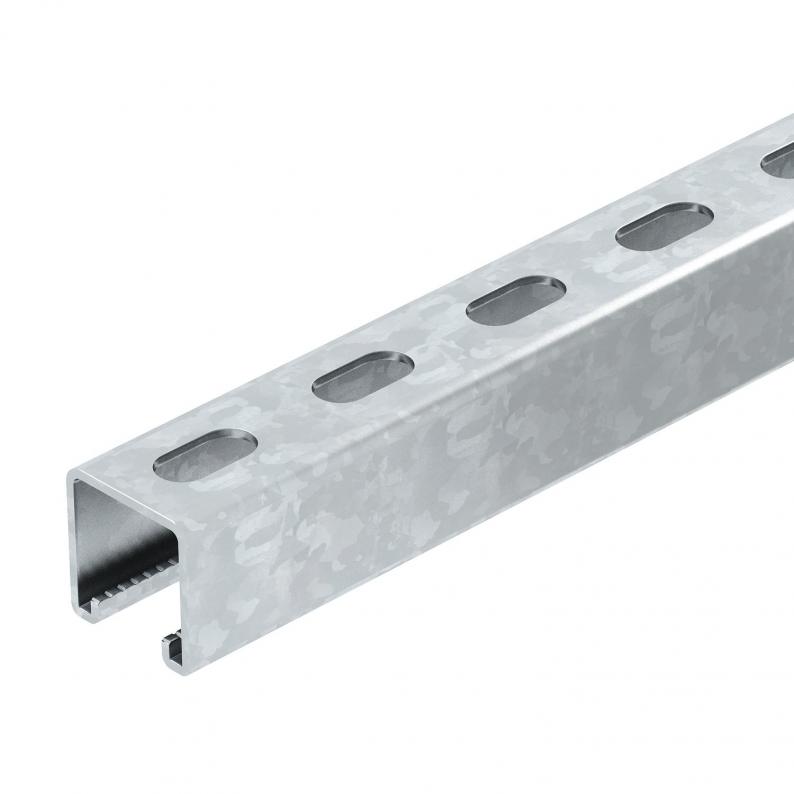

MSL4141 mounting rail, slot 22 mm, FS, perforated
Type MSL4141P0200FS
|Item no. 1123262
|EAN 4012196471232
Item no. / Type
Length
Width
Height
Material thickness
Smallest selling unit: 1 piece
1piece
piece
Description
Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Technical data

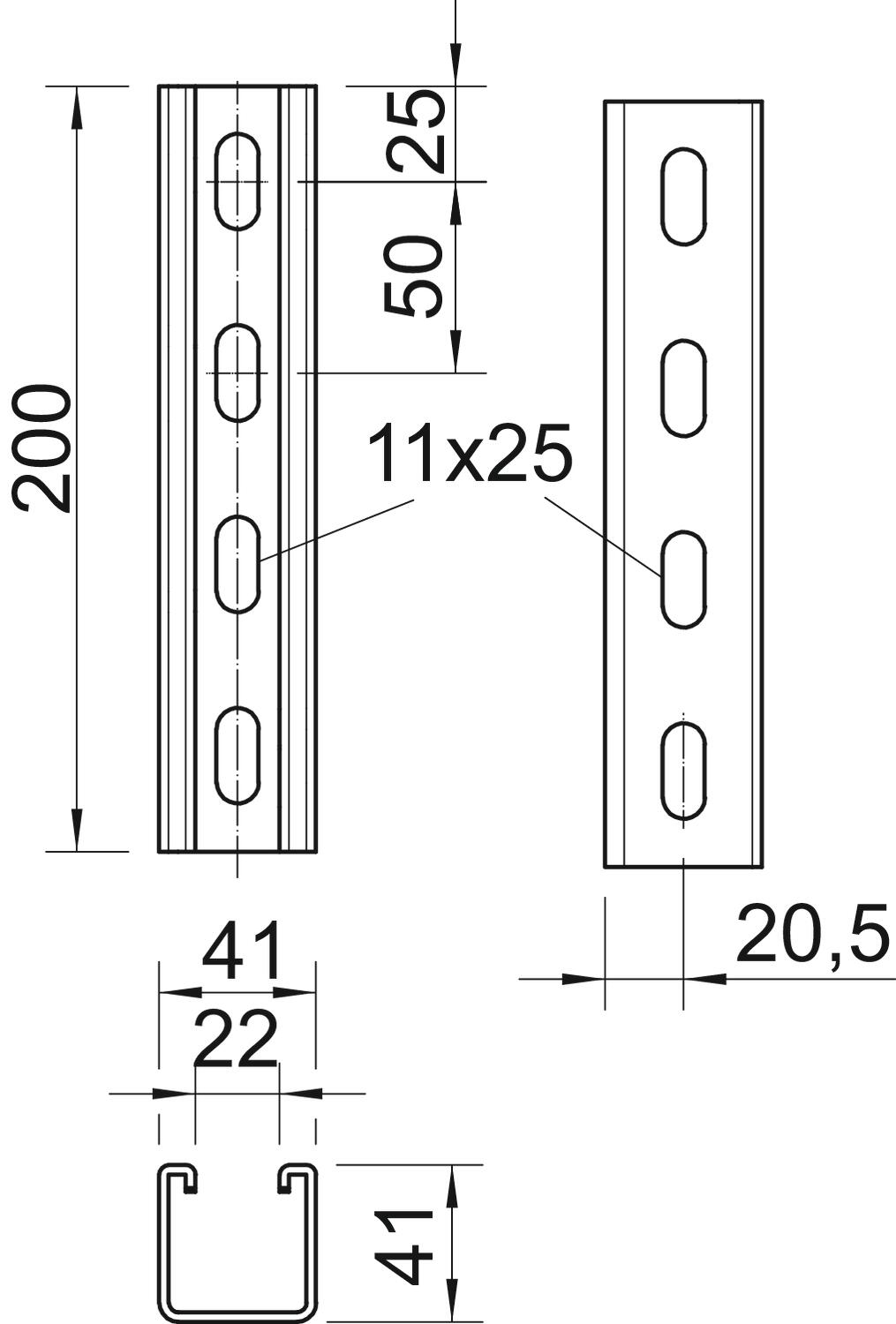

Dimensions
| Length | 200 mm |
|---|---|
| Width | 41 mm |
| Height | 41 mm |
| Dimension L | 200 mm |
Technical data
| Maintain electrical functions | evet |
|---|---|
| Yarık uzunluğu | 22 mm |
| Material thickness | 2 mm |
| Statik değer A | 2,45 cm² |
| Statik değer Iy | 5,18 cm⁴ |
| Statik değer Iz | 7,56 cm⁴ |
| Statik değer Wy | 2,51 cm³ |
| Statik değer Wz | 2,69 cm³ |
| Profile shape | C profil |
| Delik türü | Sırtı delikli |
| With perforation | evet |
| Breakable | hayır |
| With toothing | evet |
| Version for | Tekli profil |
| Boyut | 200x41x41 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 1,0086 kg CO2e / 1 Adet |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
2056U 22 FT
1175211
Smallest selling unit: 100 piece
100piece
piece
Item no. 1175211
Clamp clip, single, FT plastic pressure troughType
2056U 22 FT
Smallest selling unit: 100 piece
100piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Material thickness
Surface
Item no.
MSL4141P0200FS
200
41
41
2
Strip galvanized
1123262
MSL4141P0300FS
300
41
41
2
Strip galvanized
1123264
MSL4141P0400FS
400
41
41
2
Strip galvanized
1123266
MSL4141P0500FS
500
41
41
2
Strip galvanized
1123268
MSL4141P0600FS
600
41
41
2
Strip galvanized
1123270
MSL4141P0700FS
700
41
41
2
Strip galvanized
1123272
MSL4141P0800FS
800
41
41
2
Strip galvanized
1123274
MSL4141P0900FS
900
41
41
2
Strip galvanized
1123276
Length
MSL4141P0200FS
Item no.
1123262
Length
200
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141P0300FS
Item no.
1123264
Length
300
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141P0400FS
Item no.
1123266
Length
400
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141P0500FS
Item no.
1123268
Length
500
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141P0600FS
Item no.
1123270
Length
600
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141P0700FS
Item no.
1123272
Length
700
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141P0800FS
Item no.
1123274
Length
800
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
MSL4141P0900FS
Item no.
1123276
Length
900
Width
41
Height
41
Material thickness
2
Surface
Strip galvanized
