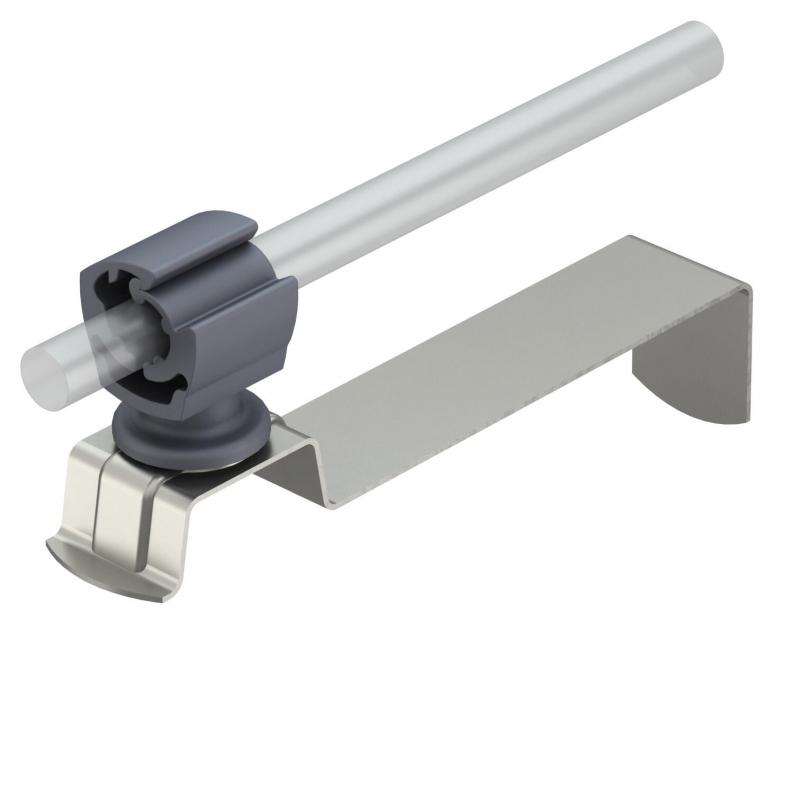

Roof conductor holder for tiled roofs, angled, Rd 8−10
Type 157 IK-VA
|Item no. 5215668
|EAN 4012195812531
Item no. / Type
5215668 / 157 IK-VA
Length
140 mm
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• Conductor holder of polyamide
• Curved bottom strip for quick installation
• Curved bottom strip for quick installation
Technical data

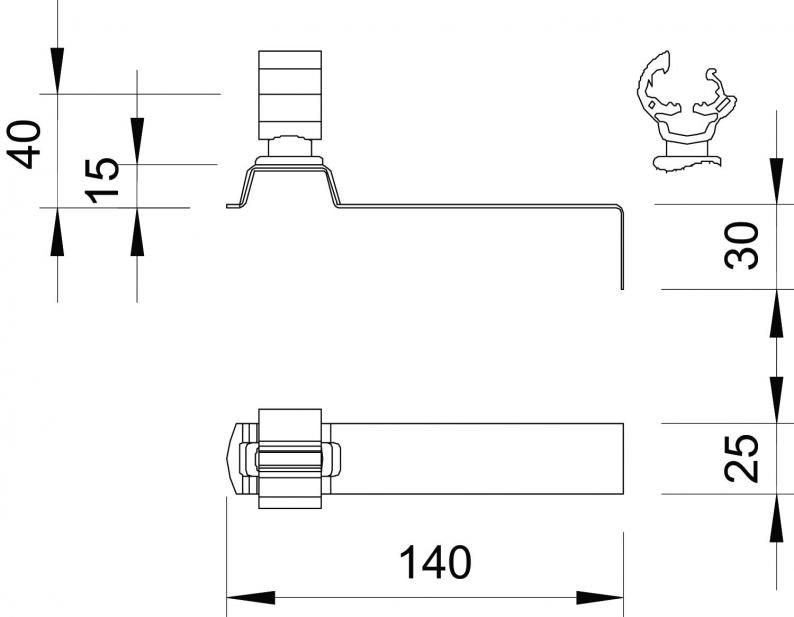

Dimensions
| Length | 140 mm |
|---|
Technical data
| Montaj yüksekliği | 40 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 10 |
| Conductor fastening type | With clamp clip |
| Application | Roof surface |
| Mounting type | For suspension |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8mm |
| Material | Stainless steel 1.4301 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,2597 kg CO2e / 1 Piece |
|---|
