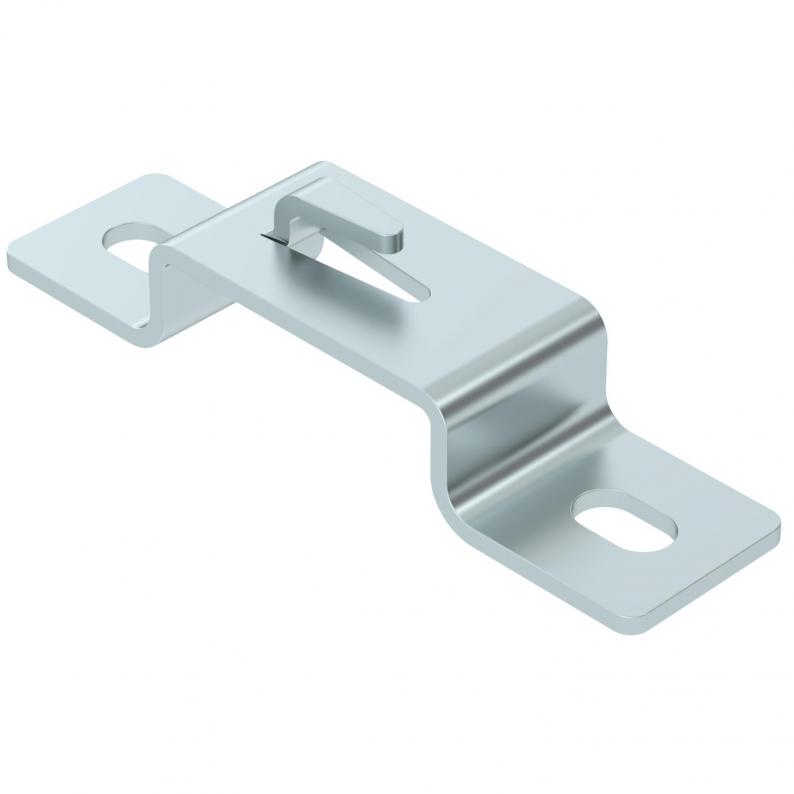

Stand-off bracket FS
Type DBLG 20 050 FS
|Item no. 6015646
|EAN 4012196961528
Item no. / Type
Dimension B
Smallest selling unit: 20 piece
20piece
piece
Description
To erect mesh cable trays on the floor. Also usable as wall fixing.
Screwless fastening of the mesh cable tray on the stand-off bracket.
Technical data

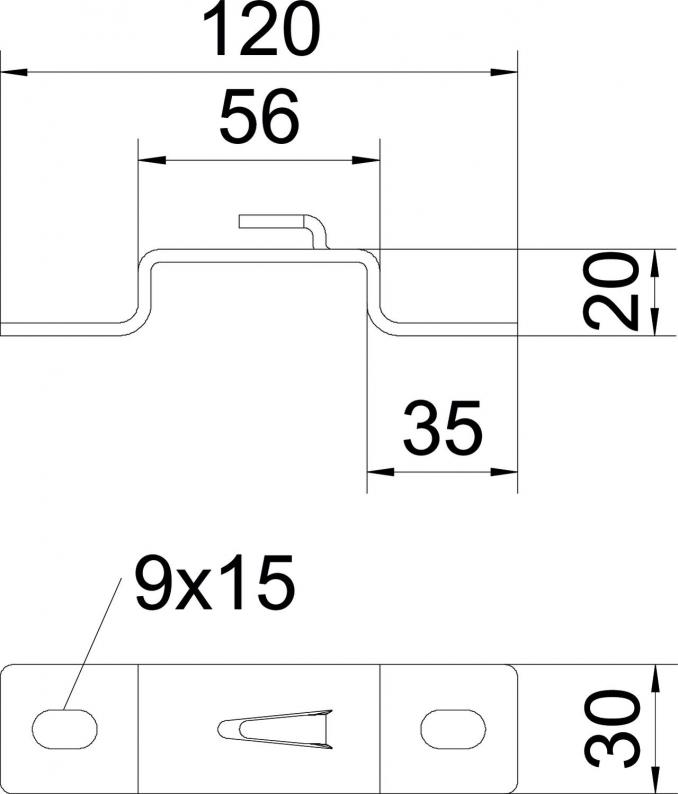

Dimensions
| Height | 20 mm |
|---|---|
| Dimension L | 120 mm |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
Technical data
| Kafes kablo kanalı için uygun | yes |
|---|---|
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | no |
| Version for | Wall/ceiling clamp, trapezoidal profile |
| Tray fastening | Retaining lug |
| Boyut | B50mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,2412 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Dimension B
Tray fastening
Surface
Material
Item no.
DBLG 20 050 FS
56
Retaining lug
Strip galvanized
Steel
6015646
DBLG 20 100 FS
106
Retaining lug
Strip galvanized
Steel
6015654
DBLG 20 150 FS
156
Retaining lug
Strip galvanized
Steel
6015658
DBLG 20 200 FS
206
Retaining lug
Strip galvanized
Steel
6015662
DBLG 20 300 FS
306
Retaining lug
Strip galvanized
Steel
6015670
DBLG 20 400 FS
406
Retaining lug
Strip galvanized
Steel
6015689
DBLG 20 500 FS
506
Retaining lug
Strip galvanized
Steel
6015693
DBLG 20 600 FS
606
Retaining lug
Strip galvanized
Steel
6015697
