Stand – TrayFix set 10 L
Type TrayFix-10-L
|Item no. 5403101
|EAN 4012196095452
Item no. / Type
5403101 / TrayFix-10-L
Smallest selling unit: 1 piece
1piece
piece
Description
• Fastening system for the mounting of cable trays and mesh cable trays with the FangFix block, e.g. for cable routing on flat roofs
• Matches OBO cable tray systems MKSM and SKSM
• Matches OBO mesh cable tray systems with a minimum width of 100 mm

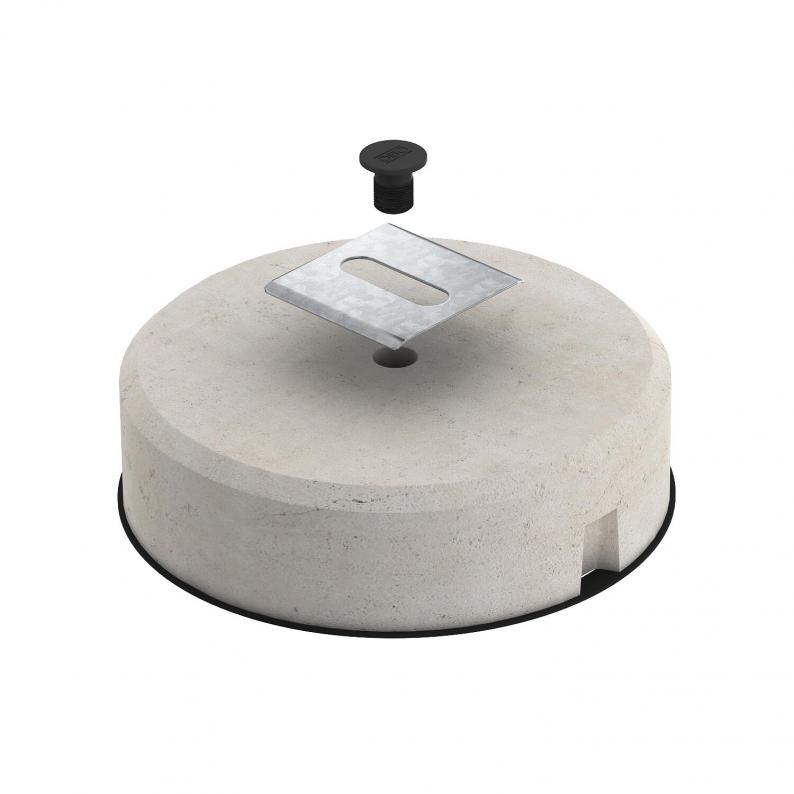

• Set consisting of TrayFix fastening and concrete block incl. base for FangFix system 10 kg
• Matches OBO cable tray systems MKSM and SKSM
• Matches OBO mesh cable tray systems with a minimum width of 100 mm
• Set consisting of TrayFix fastening and concrete block incl. base for FangFix system 10 kg
Technical data
Technical data
| From tray width | 100 mm |
|---|---|

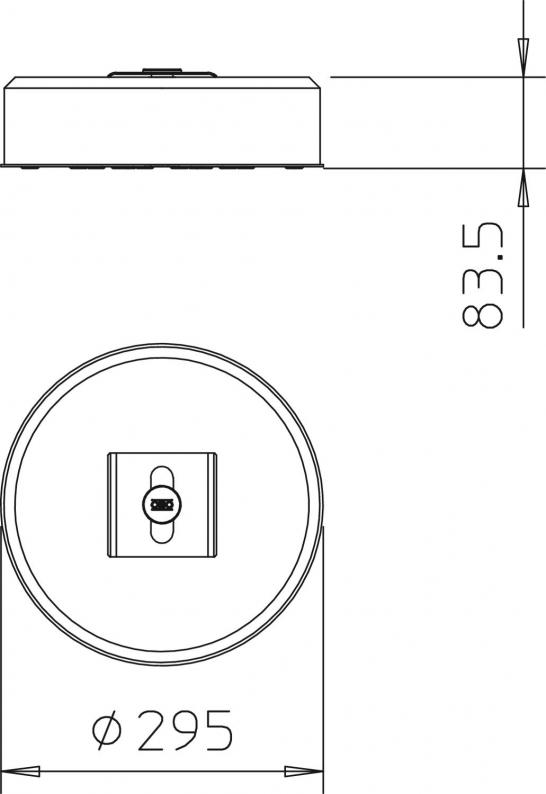

| Boyut | 295x295x84 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 3,7649 kg CO2e / 1 Piece |
|---|
