Telitank T4B
Type T4B 00C 7011
|Item no. 7408288
|EAN 4012195114956
Item no. / Type
Colour
Smallest selling unit: 1 piece
1piece
piece
Description
For combined installation of four individual accessories with support bracket (four accessories of one current type or two accessories each for two current types). The different current types are insulated against each other by a partition. Screw fixing groove for accessories: 60 mm vertical.
Technical data

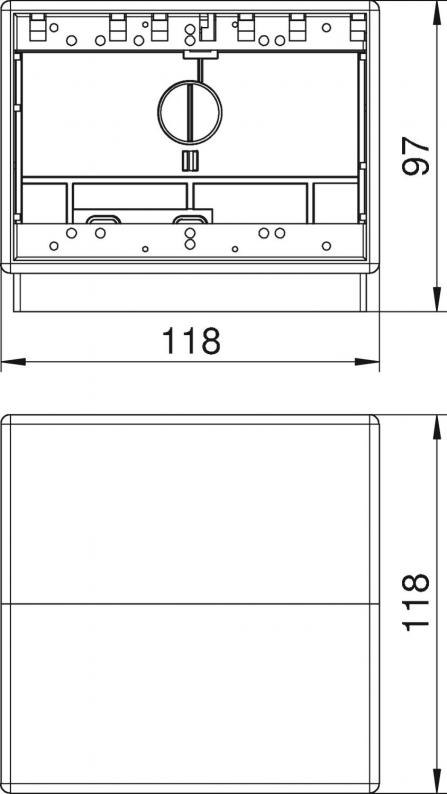

Dimensions
| Length | 118 mm |
|---|---|
| Width | 118 mm |
| Height | 97 mm |
Technical data
| Number of installable devices | 4 |
|---|---|
| Suitable for standard switch material | yes |
| Suitable for wet care | yes |
| Number of installable devices, front side | 2 |
| Number of installable devices, rear side | 2 |
| Dimension | 118x118x97 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
Environmental Data
1,2012 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2012 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
T4B P1S 9011
7408236
Smallest selling unit: 1 piece
1piece
piece
T4B P6 9011
7408268
Smallest selling unit: 1 piece
1piece
piece
Item no. 7408220
Cover plate, Telitank T4B, blankType
T4B P01S 9011
Smallest selling unit: 1 piece
1piece
piece
Type
T4B P1S 9011
Smallest selling unit: 1 piece
1piece
piece
Item no. 7408268
Cover plate, Telitank T4B, Modul 45® installation openingType
T4B P6 9011
Smallest selling unit: 1 piece
1piece
piece
