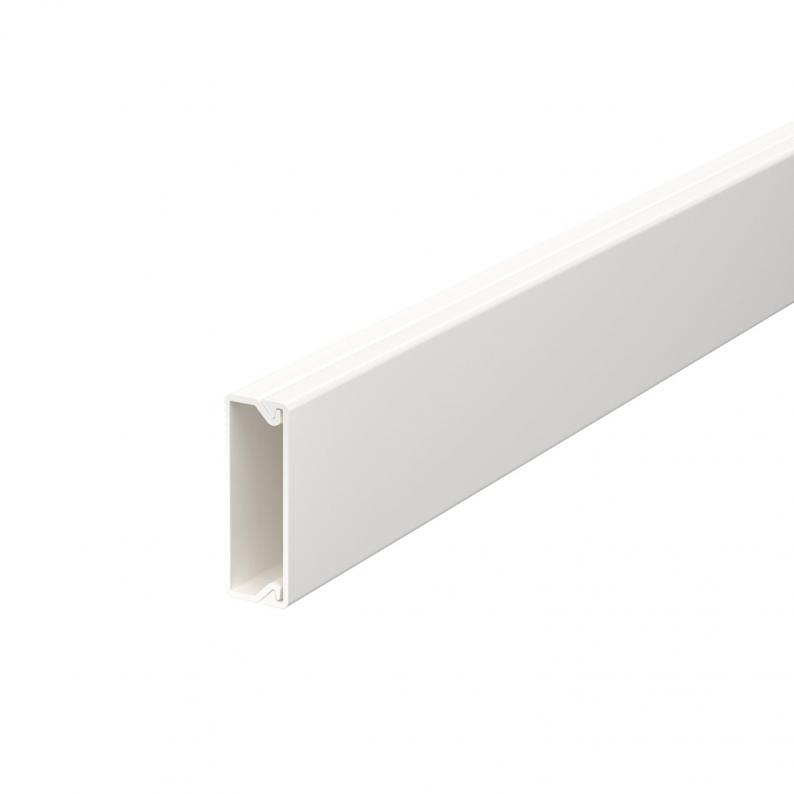

Trunking, type WDK 10030

Trunking, type WDK 10030

Type WDK10030RW
|
Item no. 6150780
|
EAN 4012196491773
Show all variants
Item no. / Type
Length
Width
Height
Colour

Smallest selling unit: 2 m

m

Description

Trunking cover and base with base perforation.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • WDK trunking, trunking depth 10 mm
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

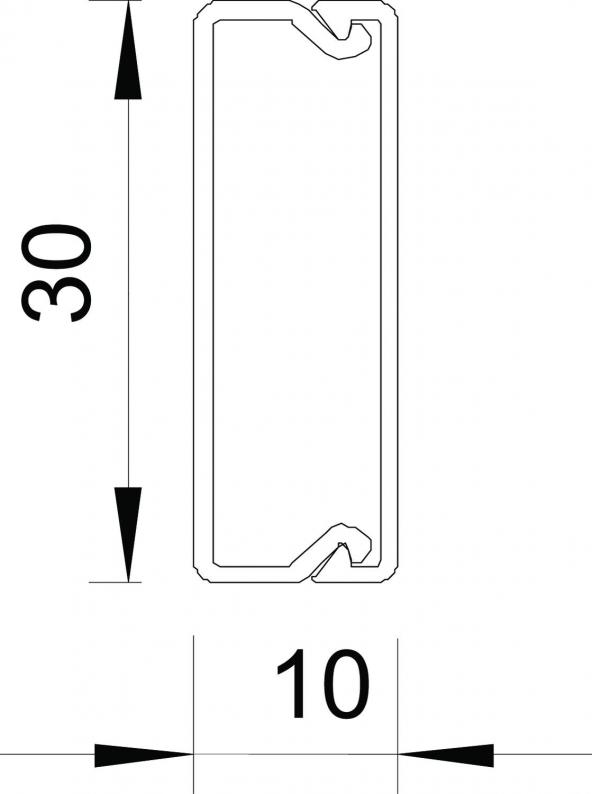

Dimensions

Length2000 mm
Width30 mm
Height10 mm

Technical data

Maintain electrical functionsno
Usable cross-section218 mm²
Halogen-freeno
Number of fixed partitions0
Number of insertable partitions0
Cable retaining clipyes
Protective filmno
Duct connectorno
Protection ratingIP30
Delivery on a rollno
Protection rating IK codeIK04
Fastening typeBase perforation
Version, cable trunking coverLoose
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension10x30x2000
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,2733 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,2733 kg CO2e / 1 Meter

Accessories

System accessories
Type
WDK HE10030RW

Smallest selling unit: 10 piece

piece

Type
WDK HI10030RW

Smallest selling unit: 4 piece

piece

Type
WDK HA10030RW

Smallest selling unit: 4 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK10030CW
Item no.
6150772
Length
2000
Width
30
Height
10
Colour
Cream; RAL 9001
WDK10030RW
Item no.
6150780
Length
2000
Width
30
Height
10
Colour
Pure white; RAL 9010
