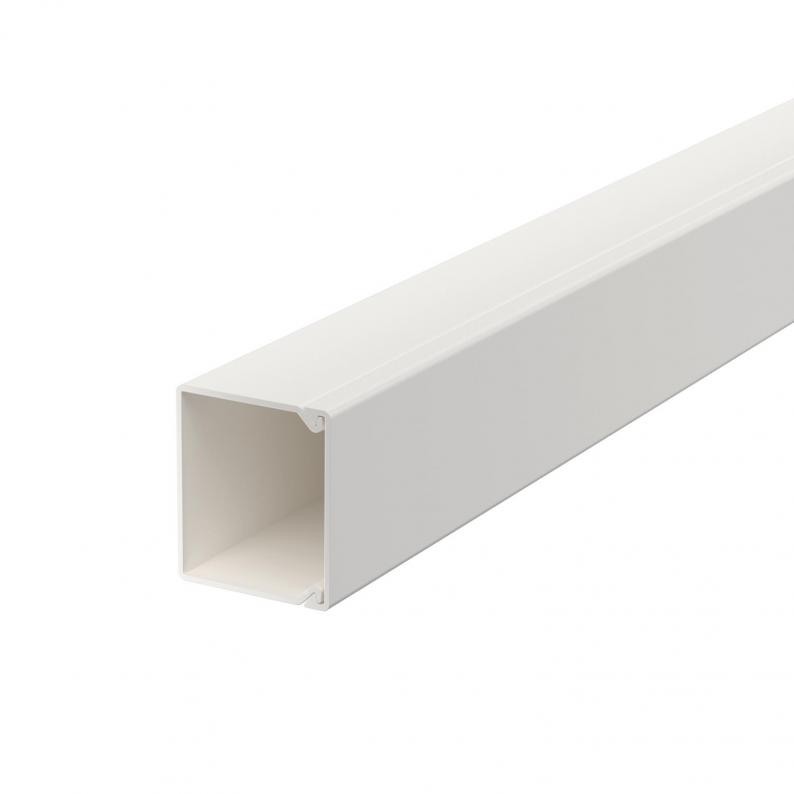

Trunking, type WDK 30030
Type WDK30030RW
|Item no. 6191096
|EAN 4012196794294
Item no. / Type
Length
Width
Height
Colour
Smallest selling unit: 40 m
40m
m
Description
Trunking cover and base with base perforation.
Technical data

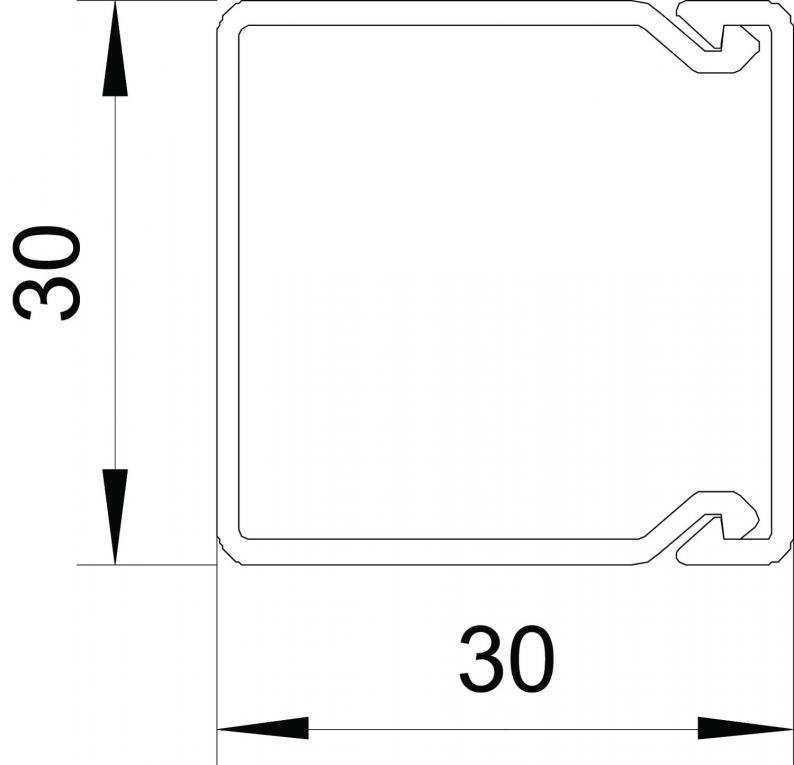

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 30 mm |
| Height | 30 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 4 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 4 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 4 |
| Usable cross-section | 731 mm² |
| Halogen-free | no |
| Number of fixed partitions | 0 |
| Number of insertable partitions | 0 |
| Cable retaining clip | no |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK04 |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 30x30x2000 |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
Environmental Data
0,4867 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4867 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
WDK HI30030RW
6191924
Smallest selling unit: 4 piece
4piece
piece
WDK HA30030RW
6192211
Smallest selling unit: 4 piece
4piece
piece
WDK HF30030RW
6192815
Smallest selling unit: 4 piece
4piece
piece
Item no. 6193188
End piece, trunking type WDK 30030Type
WDK HE30030RW
Smallest selling unit: 10 piece
10piece
piece
Item no. 6191924
Internal corner cover, trunking type WDK 30030Type
WDK HI30030RW
Smallest selling unit: 4 piece
4piece
piece
Item no. 6192211
External corner cover, trunking type WDK 30030Type
WDK HA30030RW
Smallest selling unit: 4 piece
4piece
piece
