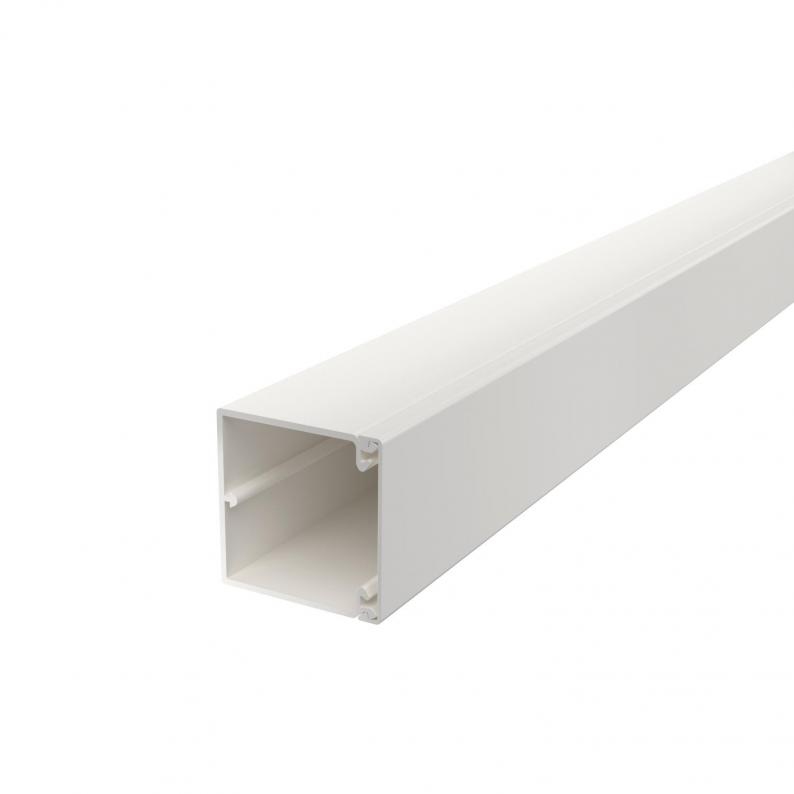

Trunking, type WDK 60060
Type WDK60060RW
|Item no. 6191193
|EAN 4012196363018
Item no. / Type
Length
Width
Height
Colour
Smallest selling unit: 32 m
32m
m
Description
Trunking cover and base with base perforation.
Four cover clips included
Lid clamp can be moved along the entire length of the trunking.
Four cover clips included
Lid clamp can be moved along the entire length of the trunking.
Technical data

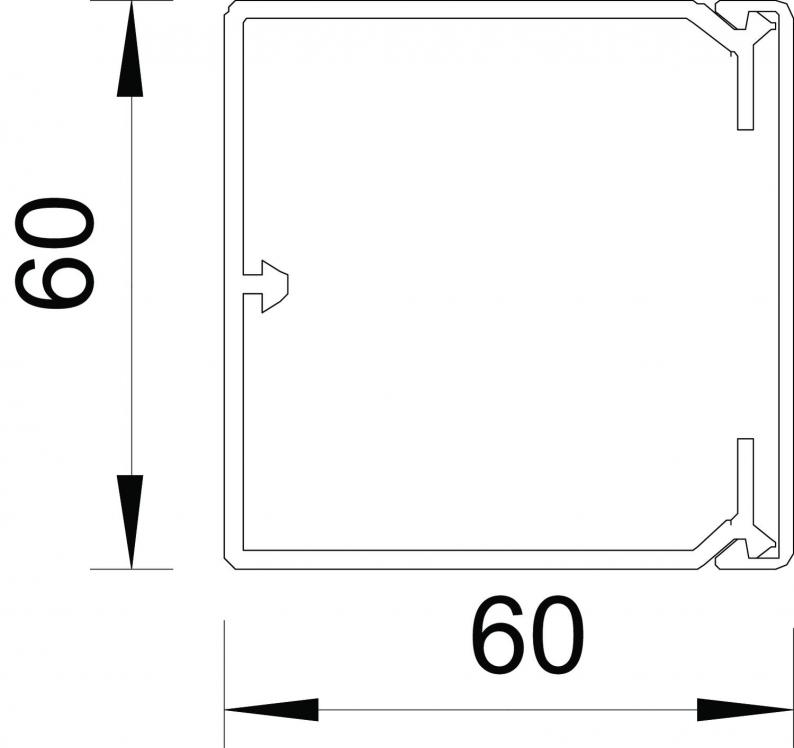

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 60 mm |
| Height | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 16 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 12 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 13 |
| Usable cross-section | 2863 mm² |
| Halogen-free | no |
| Number of fixed partitions | 0 |
| Number of insertable partitions | 1 |
| Cable retaining clip | yes |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK04 |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 60x60x2000 |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
Environmental Data
1,607 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,607 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
WDK HI60060RW
6192017
Smallest selling unit: 2 piece
2piece
piece
WDK HA60060RW
6192319
Smallest selling unit: 2 piece
2piece
piece
WDK HF60060RW
6192912
Smallest selling unit: 2 piece
2piece
piece
Item no. 6193285
End piece, trunking type WDK 60060Type
WDK HE60060RW
Smallest selling unit: 10 piece
10piece
piece
Item no. 6192017
Internal corner cover, trunking type WDK 60060Type
WDK HI60060RW
Smallest selling unit: 2 piece
2piece
piece
Item no. 6192319
External corner cover, trunking type WDK 60060Type
WDK HA60060RW
Smallest selling unit: 2 piece
2piece
piece
