US 3 support FT

US 3 support FT

Type US 3 K 20 FT
|
Item no. 6342351
|
EAN 4012196224470
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 1 piece

piece

Description

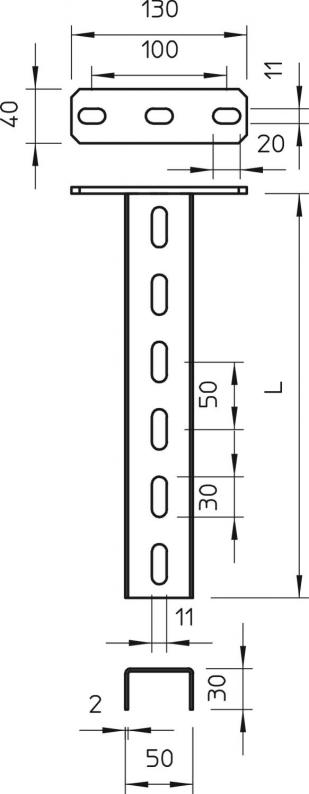

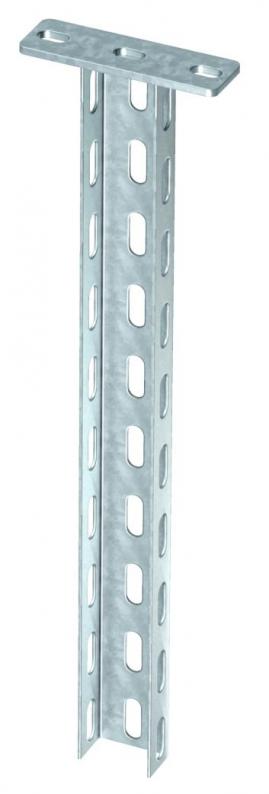

Suspended support (U profile) of dimensions 50 x 30 mm with welded head plate.


For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 25.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length200 mm
Width50 mm
Height30 mm
Dimension L200 mm

Technical data

Maintain electrical functionsyes
Material thickness2 mm
With toothingno
Version forU profile
Maximum tensile load5 kN
Konsol uzunluğu 2002,7 kN
Konsol uzunluğu 4001,5 kN
Boyut50x30x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
US 3 K típusú U-oszlop terhelési diagramja

Müsaade edilen konsol yükü altında askı desteği ucundaki eğilme

İnsan taşıma yükü hariç olmak üzere kn olarak müsaade edilen konsol yükü

Konsol uzunluğu, mm

mm olarak destek uzunlukları ile yük eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya1,18 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6018513

U support connector FT
Type
VUS 3 FT

Smallest selling unit: 10 piece

piece

Item no. 6338458

Protective cap
Type
US 3 KS OR

Smallest selling unit: 20 piece

piece

Type
FRS 10x25 F 8.8

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (7)
Declarations (5)
Certificates (1)
Instructions and Aid (4)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Length
Colour
US 3 K 20 FT
Item no.
6342351
Length
200
Colour
Çinko grisi
US 3 K 30 FT
Item no.
6342353
Length
300
Colour
Çinko grisi
US 3 K 40 FT
Item no.
6342355
Length
400
Colour
Çinko grisi
US 3 K 50 FT
Item no.
6342357
Length
500
Colour
Çinko grisi
US 3 K 60 FT
Item no.
6342359
Length
600
Colour
Çinko grisi
US 3 K 70 FT
Item no.
6342362
Length
700
Colour
zinc
US 3 K 80 FT
Item no.
6342364
Length
800
Colour
zinc
US 3 K 90 FT
Item no.
6342366
Length
900
Colour
Çinko grisi
US 3 K 100 FT
Item no.
6342368
Length
1000
Colour
Çinko grisi
US 3 K 110 FT
Item no.
6342370
Length
1100
Colour
Çinko grisi
US 3 K 120 FT
Item no.
6342372
Length
1200
Colour
Çinko grisi
