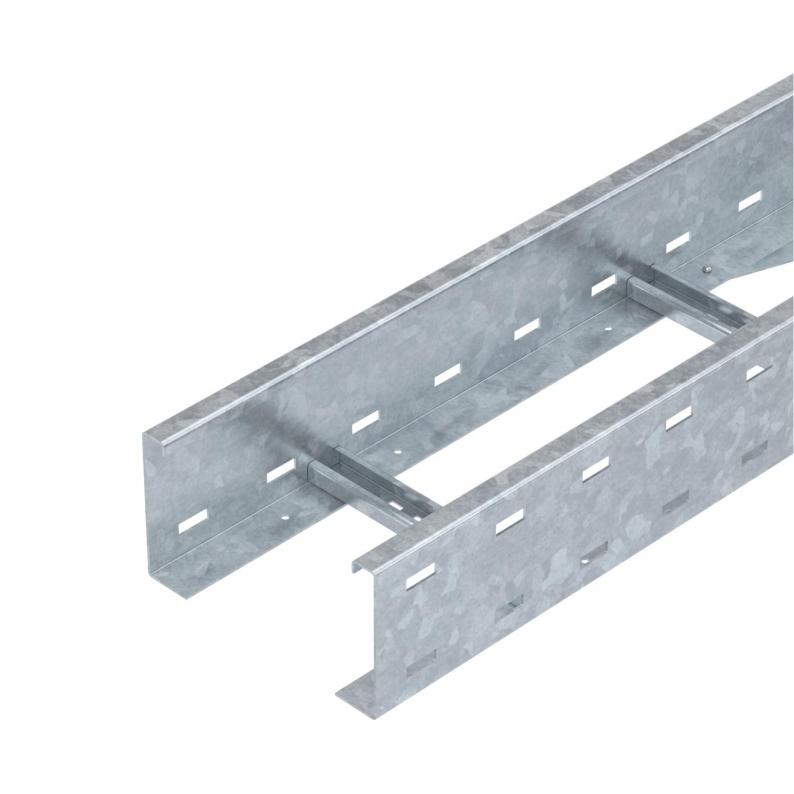

Wide span cable ladder WKLG 110 FT

Wide span cable ladder WKLG 110 FT

Type WKLG 1120 FT
|
Item no. 6311059
|
EAN 4012196883332
Show all variants
Item no. / Type
Length
Width
Maintain electrical functions
Yan parça kalınlığı

Smallest selling unit: 6 m

m

Description

Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.


Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Straight connectors of type WRVL 110 should be ordered separately and in the appropriate quantity.

  • Manyetik ekranlama sönümlemesi
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Uzun gergi kablo merdiveni, kenar yüksekliği 110 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length6000 mm
Width200 mm
Height110 mm
Dimension L6000 mm
Dimension B200 mm
Rung slot dimension17,00

Technical data

Maintain electrical functionsno
Yan delikyes
Wide-span versionyes
Usable cross-section186 cm²
Paslanmaz çelik, mordanlıno
Usable cross-section18600 mm²
Version of the rungsProfile perforated
Side rail versionProfile (open)
Fastening of rungFully riveted
Ölçü110 x 200
Yan parça kalınlığı2 mm
Boyut110x200x6000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Loads

Destek aralığı 3,0m2,5 kN/m
Destek aralığı 3,5m1,98 kN/m
Destek aralığı 4,0m1,6 kN/m
Destek aralığı 4,5m1,31 kN/m
Destek aralığı 5,0m1,1 kN/m
Destek aralığı 6,0m0,8 kN/m
Destek aralığı 7,0m0,4 kN/m

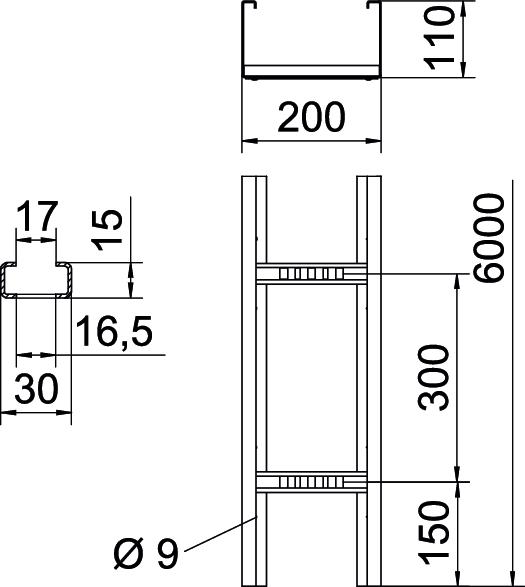

Load diagram, wide span cable ladder, type WKLG 110

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya12,6394 kg CO2e / 1 Meter

Accessories

System accessories
Type
WDRL 1116 20 DD

Smallest selling unit: 3 m

m

Item no. 6091180

Straight connector FT
Type
WRVL 110 FT

Smallest selling unit: 2 piece

piece

Item no. 6310398

End cap
Type
SKHW 110 OR

Smallest selling unit: 20 Pair

Pair
