Wide span cable ladder WKLG 160 FT
Type WKLG 1620 FT
|Item no. 6227120
|EAN 4012196169399
Item no. / Type
Length
Width
Maintain electrical functions
Yan parça kalınlığı
Smallest selling unit: 6 m
6m
m
Description

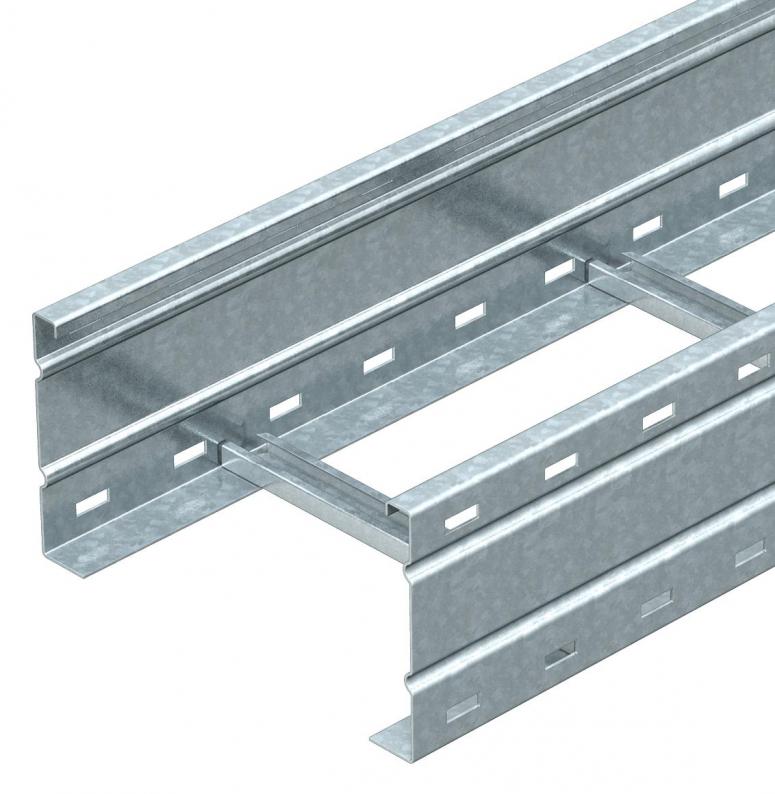

Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Straight connectors of type WRV 160 should be ordered separately and in the appropriate quantity.
Technical data

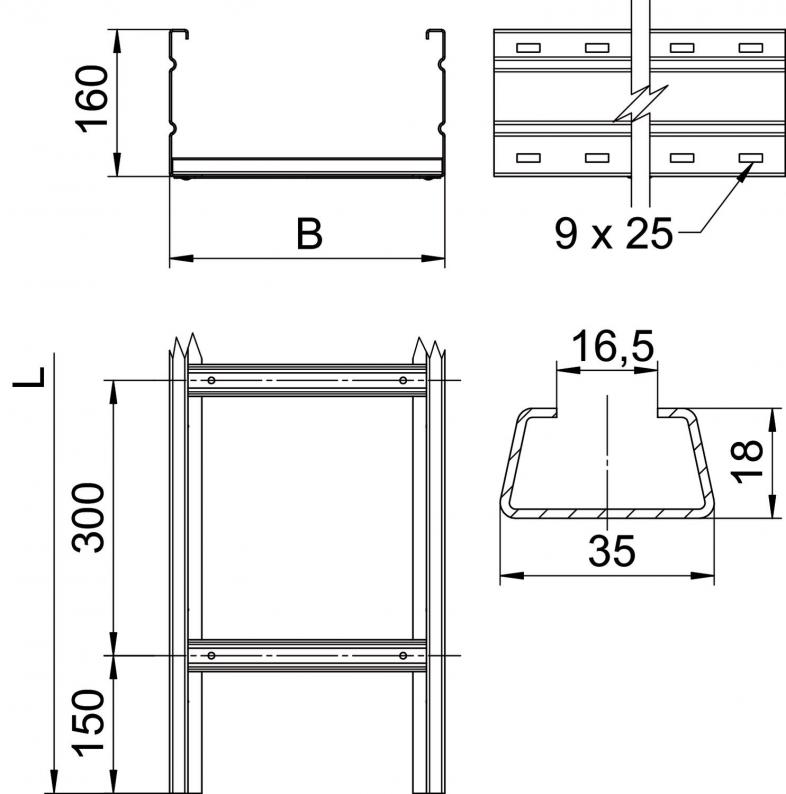

Dimensions
| Length | 6000 mm |
|---|---|
| Width | 200 mm |
| Height | 160 mm |
| Dimension L | 6000 mm |
| Dimension B | 200 mm |
| Rung slot dimension | 16,50 |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Wide-span version | yes |
| Usable cross-section | 282 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 28200 mm² |
| Version of the rungs | Profile unperforated |
| Fastening of rung | Fully riveted |
| Ölçü | 160 x 200 |
| Yan parça kalınlığı | 2 mm |
| Boyut | 160x200x6000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Loads
| Destek aralığı 3,0m | 2,9 kN/m |
|---|---|
| Destek aralığı 3,5m | 2,59 kN/m |
| Destek aralığı 4,0m | 2,3 kN/m |
| Destek aralığı 4,5m | 2,04 kN/m |
| Destek aralığı 5,0m | 1,8 kN/m |
| Destek aralığı 6,0m | 1,4 kN/m |
| Destek aralığı 7,0m | 1 kN/m |
| Destek aralığı 8,0m | 0,7 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 16,6798 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6227836
Straight and angle connector A2Type
WRWVK 160 A2
Smallest selling unit: 2 piece
2piece
piece
Downloads
0 selected
Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Width
Maintain electrical functions
Yan parça kalınlığı
Item no.
WKLG 1620 FT
6000
200
hayır
2
6227120
WKLG 1630 FT
6000
300
hayır
2
6227139
WKLG 1640 FT
6000
400
hayır
2
6227147
WKLG 1650 FT
6000
500
hayır
2
6227155
WKLG 1660 FT
6000
600
hayır
2
6227163
Width
WKLG 1620 FT
Item no.
6227120
Length
6000
Width
200
Maintain electrical functions
hayır
Yan parça kalınlığı
2
WKLG 1630 FT
Item no.
6227139
Length
6000
Width
300
Maintain electrical functions
hayır
Yan parça kalınlığı
2
WKLG 1640 FT
Item no.
6227147
Length
6000
Width
400
Maintain electrical functions
hayır
Yan parça kalınlığı
2
WKLG 1650 FT
Item no.
6227155
Length
6000
Width
500
Maintain electrical functions
hayır
Yan parça kalınlığı
2
WKLG 1660 FT
Item no.
6227163
Length
6000
Width
600
Maintain electrical functions
hayır
Yan parça kalınlığı
2
