Note: This article is discontinued.

Fire protection duct PYROLINE® Con D BSK I120/E90 1000 | 280 | 160 | 185 | 105

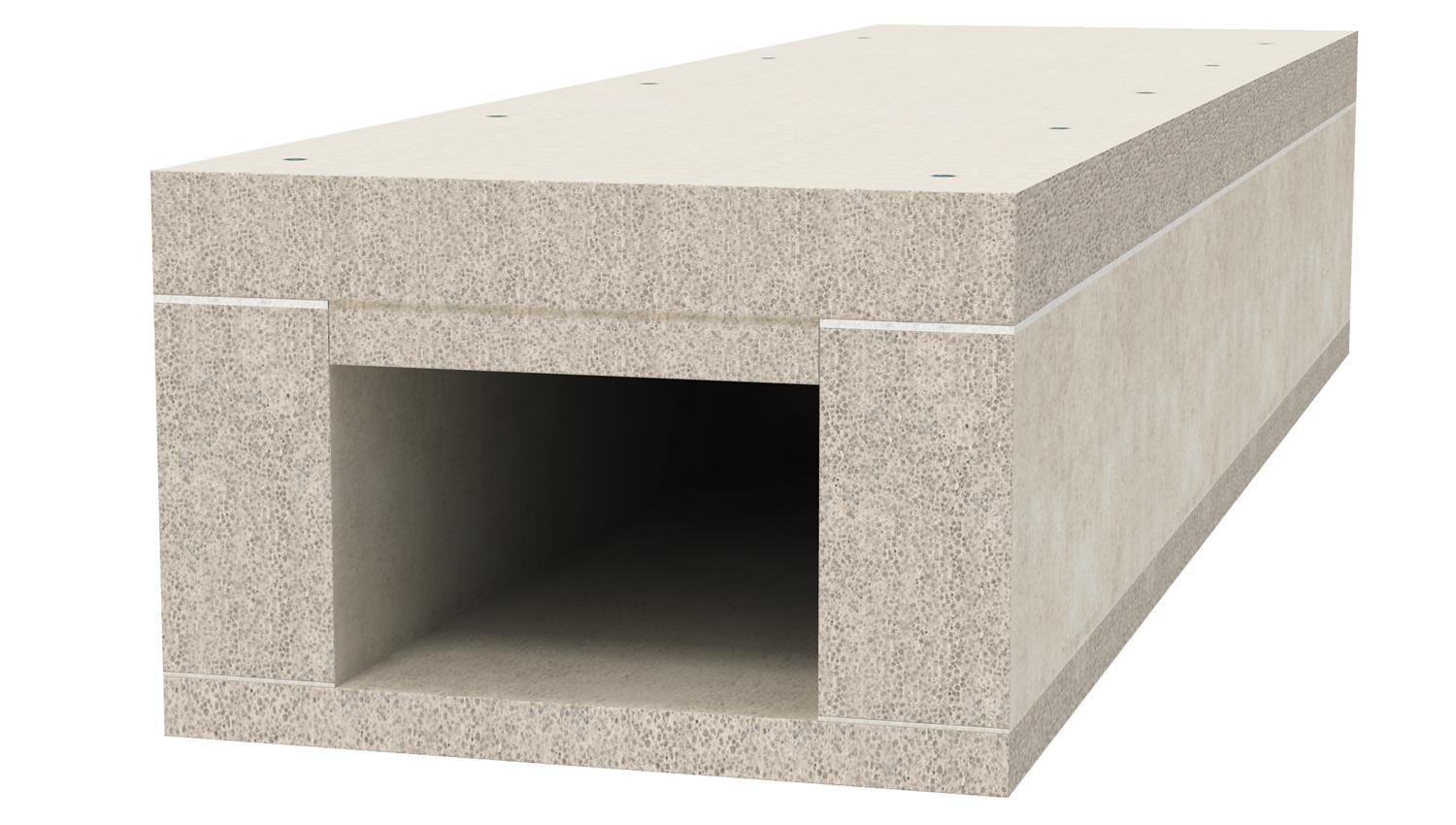

Fire protection duct PYROLINE® Con D BSK I120/E90

Item no. 7215228 | EAN 4012196887538

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H	185 mm

Dimension h	105 mm

Product description

Product description

Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I120 as I duct according to DIN 4102 Part 11 and classification E90 as E duct according to DIN 4102 Part 12.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strips.

Technical data

Technical data

Colour	Grey
Cover fastening	Screw

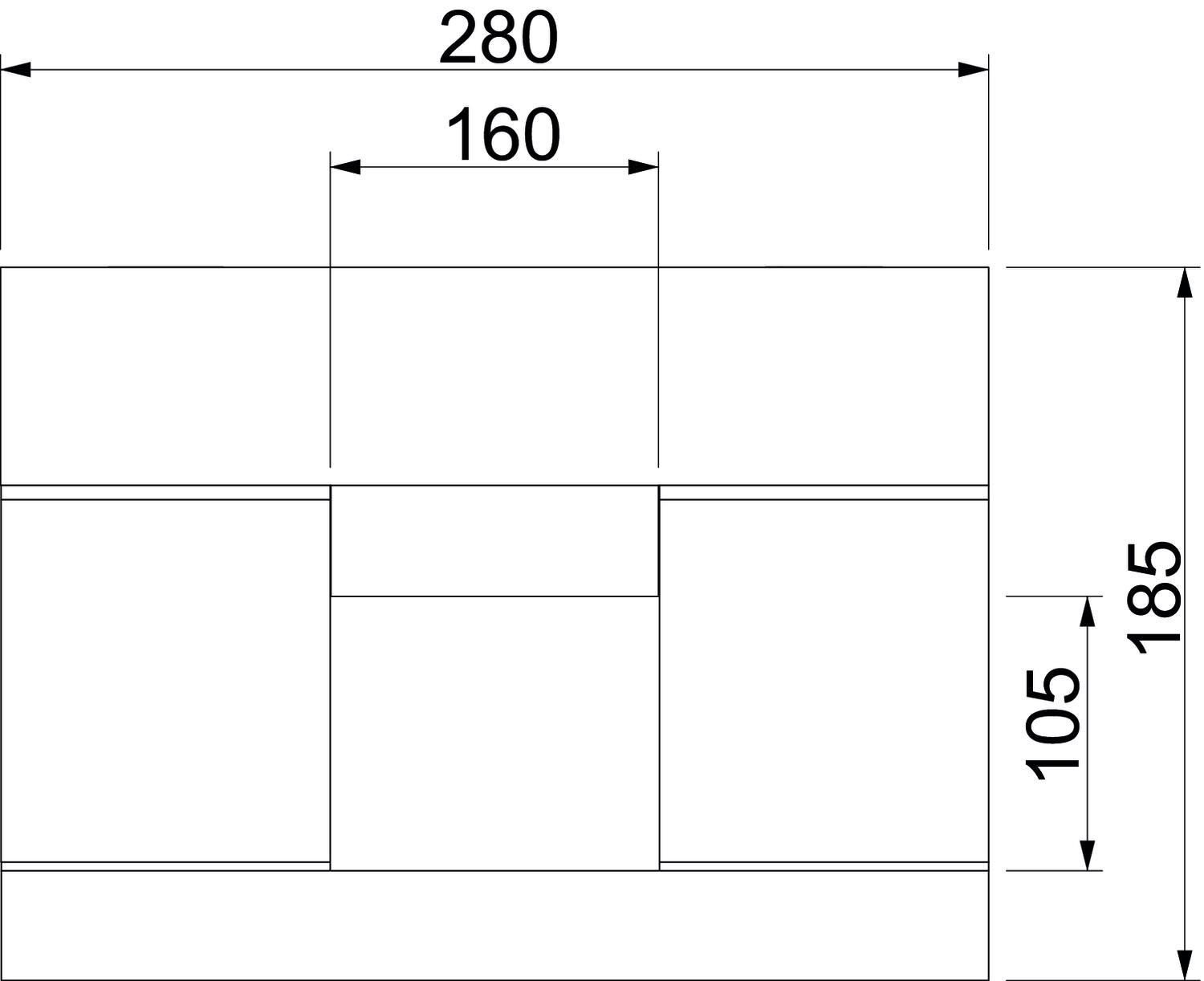

Dimension	105x160
Dimension B	280 mm
Dimension b	160 mm
Dimension h	105 mm
Dimension H	185 mm
Fire resistance class E − function maintenance	90

Fire resistance class I − installation duct	120
Jacketing	Without
Length	1000 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	3
Partitions possible	yes
With perforation	no

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.	Quantity	SSU
BSK 121016	1000 mm	280 mm	160 mm	185 mm	105 mm	7215228	m	1 m
BSK 121026	1000 mm	380 mm	260 mm	185 mm	105 mm	7215234	m	1 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464	piece	1 piece
Doubler for PYROLINE® Con fire protection duct	KAD-10040	7215462	piece	1 piece
Fire protection duct mortar	KTM	7215500	piece	1 piece

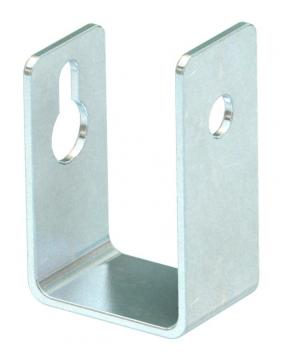

Separating bracket for wall mounting	BSK-W1016	7215324	piece	25 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288	piece	10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290	piece	10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm	LHS 60	7215292	piece	10 piece
Identification plate	KS-K DE	7214734	piece	10 piece
Identification plate for maintenance of electrical function	KS-E DE	7205423	piece	10 piece
