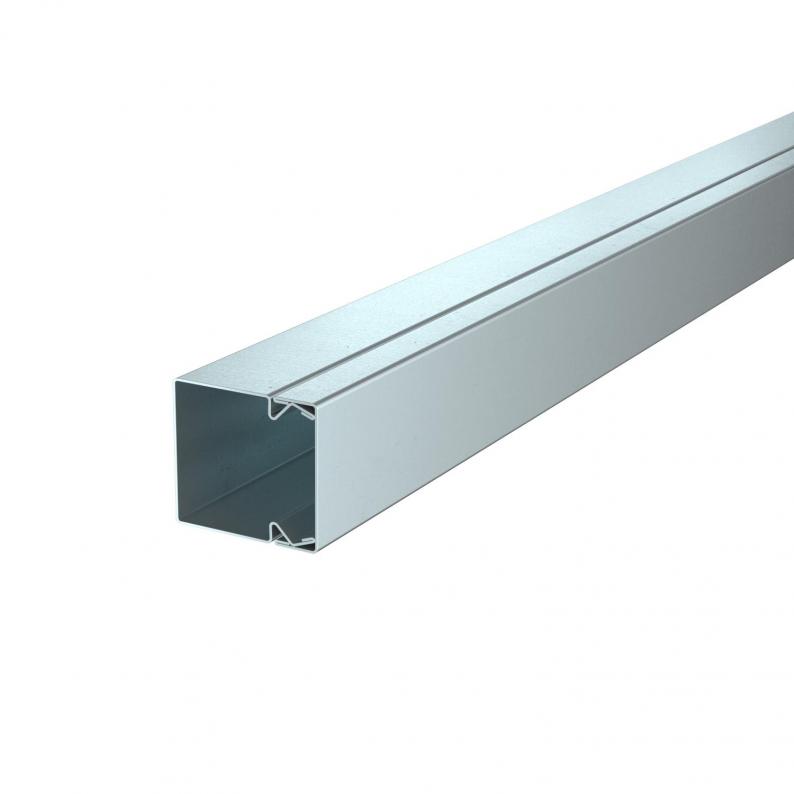

Cable duct, type LKM 40040
Type LKM40040FS
|Item no. 6246990
|EAN 4012196651733
Item no. / Type
Length
Width
Height
Surface
Smallest selling unit: 2 m
2m
m
Description
Duct cover and base with base perforation.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 40 mm |
| Height | 44 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| NYM tipi kablo sayısı 3 x 1,5 mm² Ø 10,5 mm (kutusuz) | 6 |
| NYM tipi kablo sayısı 5 x 1,5 mm² Ø 12,0 mm (kutusuz) | 6 |
| NYM tipi kablo sayısı 3 x 2,5 mm² Ø 11,5 mm (kutusuz) | 6 |
| Usable cross-section | 1537 mm² |
| Halojen İçermez | yes |
| Sabit seperatör sayısı | 0 |
| Geçmeli seperatör sayısı | 0 |
| Kablo tutucu mandal | no |
| Koruyucu folyo | no |
| Kanal bağlantı elemanı | no |
| Koruma sınıfı | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK10 |
| Transparent | no |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Taban deliği | with base perforation |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 90 °C |
| Boyut | 40x40x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Antibacterial treatment | no |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,2144 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
LKM KSR40040
6249748
Smallest selling unit: 5 piece
5piece
piece
LKM E40040FS
6247881
Smallest selling unit: 10 piece
10piece
piece
LKM EK40040
6249778
Smallest selling unit: 5 piece
5piece
piece
LKM A40040FS
6247563
Smallest selling unit: 1 piece
1piece
piece
LKM F40040FS
6247490
Smallest selling unit: 1 piece
1piece
piece
Item no. 6249748
Edge protection ring KSR 40040, for LKM cable duct type 40040Type
LKM KSR40040
Smallest selling unit: 5 piece
5piece
piece
Item no. 6247881
End piece, for cable trunking type LKM 40040Type
LKM E40040FS
Smallest selling unit: 10 piece
10piece
piece
