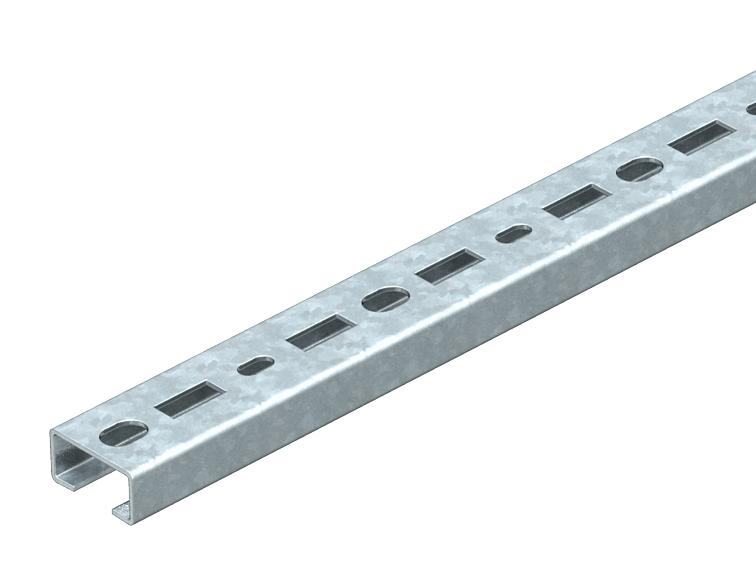

CM3015 profile rail, slot 16 mm, FS, perforated

CM3015 profile rail, slot 16 mm, FS, perforated

Type CM3015P2000FS
|
Item no. 1110002
|
EAN 4012195053897
Show all variants
Item no. / Type
1110002 / CM3015P2000FS
Length
2000 mm
Width
30 mm
Height
15 mm
Material thickness
1,5 mm
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 2 m

m

Description

Profile rail, perforated, slot width 16 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Slot width 16 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • CO₂ footprint (PCF)

Technical data

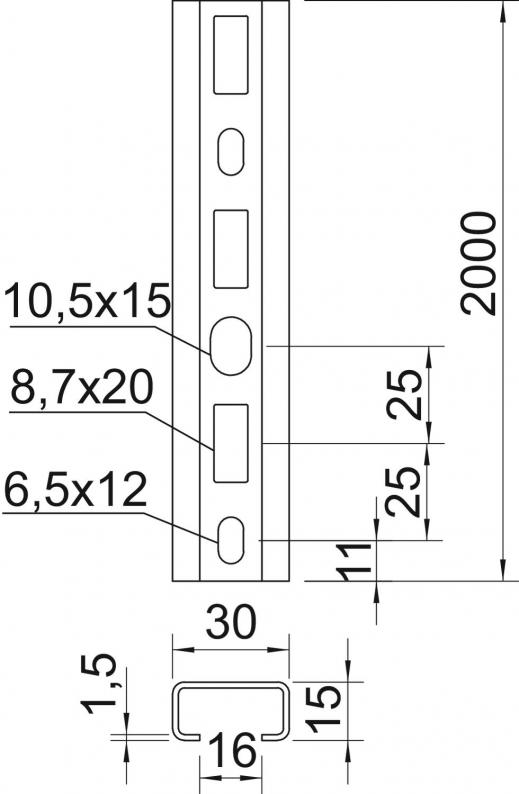

Dimensions

Length2000 mm
Width30 mm
Height15 mm
Dimension L2000 mm

Technical data

Maintain electrical functionsno
Slot width16 mm
Material thickness1,5 mm
Static value A0,8 cm²
Static value ly0,24 cm⁴
Static value lz1,22 cm⁴
Static value Wy0,29 cm³
Static value Wz0,81 cm³
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre25 mm
With perforationyes
Breakableno
With toothingno
Bundle20 m
Version forSingle profile
Dimension2000x30x15
SurfaceStrip galvanized
MaterialSteel

Environmental Data

1,7075 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,7075 kg CO2e / 1 Meter

Accessories

Mounting accessories

Item no. 1147060

Slide nut ZL
Type
ACMSN M8 ZL

Smallest selling unit: 100 piece

piece

Item no. 1148060

Hammer-head bolt ZL
Type
ACMHB M8x30 ZL

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

CM3015P2000FS
Item no.
1110002
Length
2000
Width
30
Height
15
Material thickness
1,5
Surface
Strip galvanized
Material
Steel
