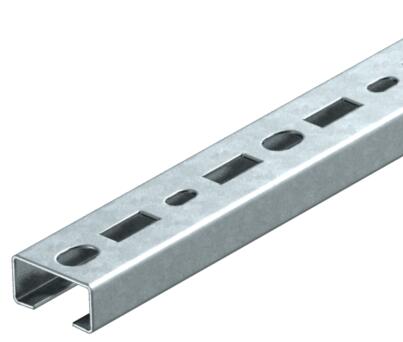

CMS3518 profile rail, slot 17 mm, FS, perforated
Type CMS3518P0150FS
|Item no. 1104349
|EAN 4012195038474
Item no. / Type
Length
Width
Height
Material thickness
Smallest selling unit: 25 piece
25piece
piece
Description
Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
Technical data

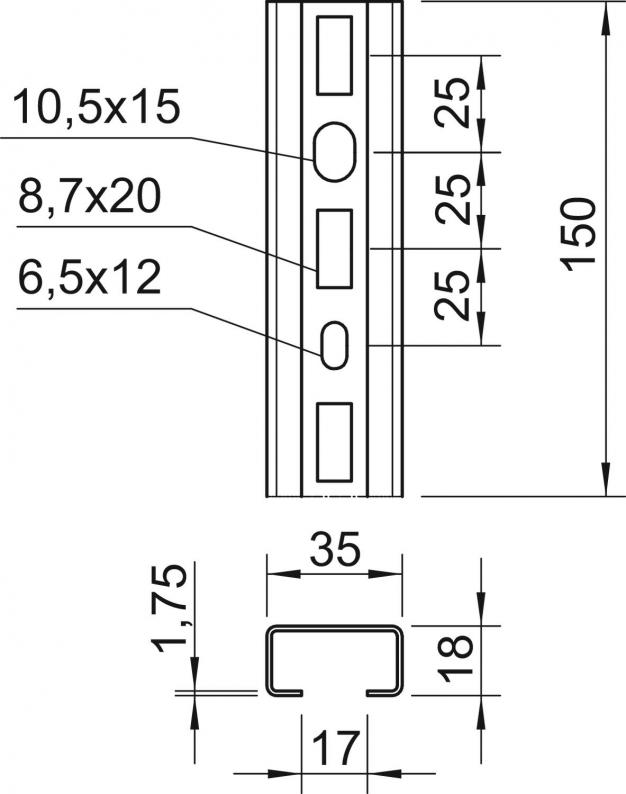

Dimensions
| Length | 150 mm |
|---|---|
| Width | 35 mm |
| Height | 18 mm |
| Dimension L | 150 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Rustproof steel, pickled | no |
| Slot width | 17 mm |
| Material thickness | 1,75 mm |
| Static value A | 1,17 cm² |
| Static value ly | 0,52 cm⁴ |
| Static value lz | 0,53 cm⁴ |
| Static value Wy | 2,33 cm³ |
| Static value Wz | 1,33 cm³ |
| Profile shape | C profile |
| Type of perforation | Perforated back |
| Drill hole spacing, centre | 25 mm |
| With perforation | yes |
| Breakable | no |
| With toothing | no |
| Version for | Single profile |
| Dimension | 150x35x18 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
0,3749 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3749 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Width
Height
Material thickness
Surface
Material
Item no.
CMS3518P0150FS
150
35
18
1,75
Strip galvanized
Steel
1104349
CMS3518P0200FS
200
35
18
1,75
Strip galvanized
Steel
1104357
CMS3518P0300FS
300
35
18
1,75
Strip galvanized
Steel
1104373
CMS3518P0400FS
400
35
18
1,75
Strip galvanized
Steel
1104391
CMS3518P0500FS
500
35
18
1,75
Strip galvanized
Steel
1104403
CMS3518P0600FS
600
35
18
1,75
Strip galvanized
Steel
1104411
CMS3518P0700FS
700
35
18
1,75
Strip galvanized
Steel
1104422
CMS3518P0800FS
800
35
18
1,75
Strip galvanized
Steel
1104427
CMS3518P0900FS
900
35
18
1,75
Strip galvanized
Steel
1104435
