Industrial vertical cable ladder, 6 m C40

Industrial vertical cable ladder, 6 m C40

Type SLS 80 C40 2 FT
|
Item no. 6013384
|
EAN 4012196358632
Show all variants
Item no. / Type
Width

Smallest selling unit: 6 m

m

Description

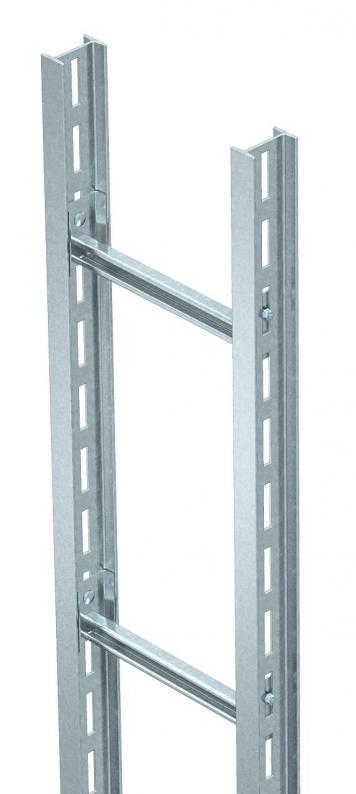

Vertical ladder of side height 80 mm with screwed-in rungs.

The vertical ladder is shipped in an unmounted state.

The appropriate clamp clip is type 2056U.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • I profil destek
  • CO₂ footprint (PCF)

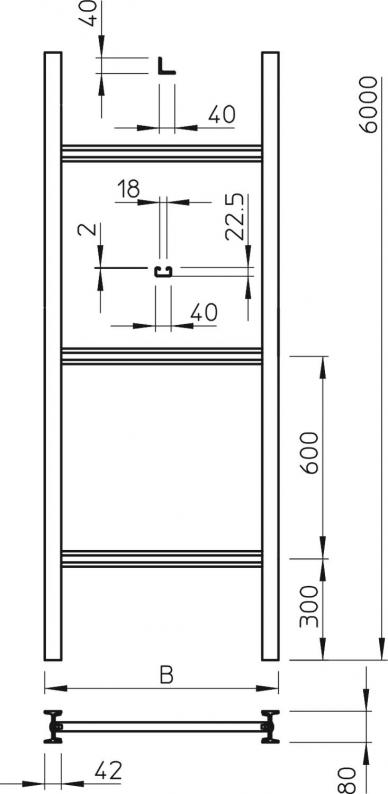

Technical data

Dimensions

Length6000 mm
Width200 mm
Height80 mm
Dimension B200 mm
Rung slot dimension18,00

Technical data

Maintain electrical functionsno
Yan delikyes
Paslanmaz çelik, mordanlıno
Çerçeve mesafesi600 mm
Version of the rungsProfile unperforated
Boyut200x6000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya27,3115 kg CO2e / 1 Meter

Accessories

Mounting accessories

Item no. 6008224

Rung CK 40
Type
CK 40 20 FT

Smallest selling unit: 1 piece

piece

Type
VIS 8 FT

Smallest selling unit: 10 piece

piece

Item no. 6019528

Mounting angle BW 80
Type
BW 80 55 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
SLS 80 C40 2 FT
Item no.
6013384
Width
200
SLS 80 C40 3 FT
Item no.
6013392
Width
300
SLS 80 C40 4 FT
Item no.
6013406
Width
400
SLS 80 C40 5 FT
Item no.
6013414
Width
500
SLS 80 C40 6 FT
Item no.
6013422
Width
600
SLS 80 C40 7 FT
Item no.
6013430
Width
700
SLS 80 C40 8 FT
Item no.
6013449
Width
800
SLS 80 C40 9 FT
Item no.
6013457
Width
900
SLS 80 C40 10 FT
Item no.
6013465
Width
1000
SLS 80 C40 11 FT
Item no.
6013473
Width
1100
SLS 80 C40 12 FT
Item no.
6013481
Width
1200
