Industrial vertical cable ladder, 6 m W40

Industrial vertical cable ladder, 6 m W40

Type SLS 80 W40 4 FT
|
Item no. 6013848
|
EAN 4012196011773
Show all variants
Item no. / Type
Width

Smallest selling unit: 6 m

m

Description

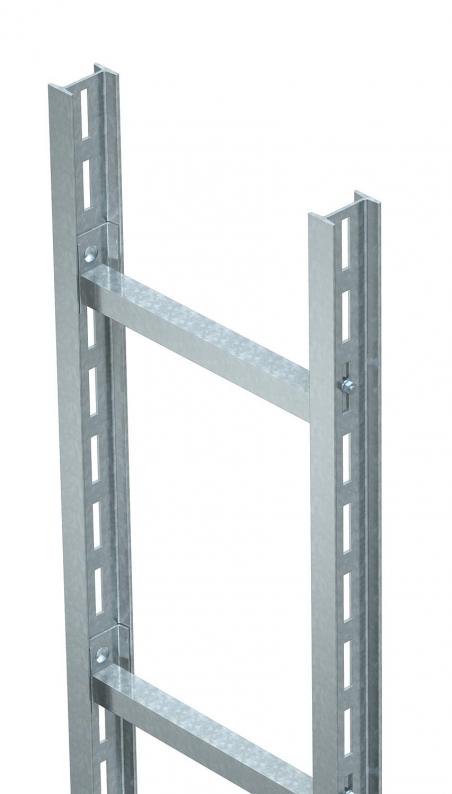

Vertical ladder of side height 80 mm with screwed-in rungs.

The vertical ladder is shipped in an unmounted state.

The appropriate U clamp is type 2056W.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • I profil destek
  • CO₂ footprint (PCF)

Technical data

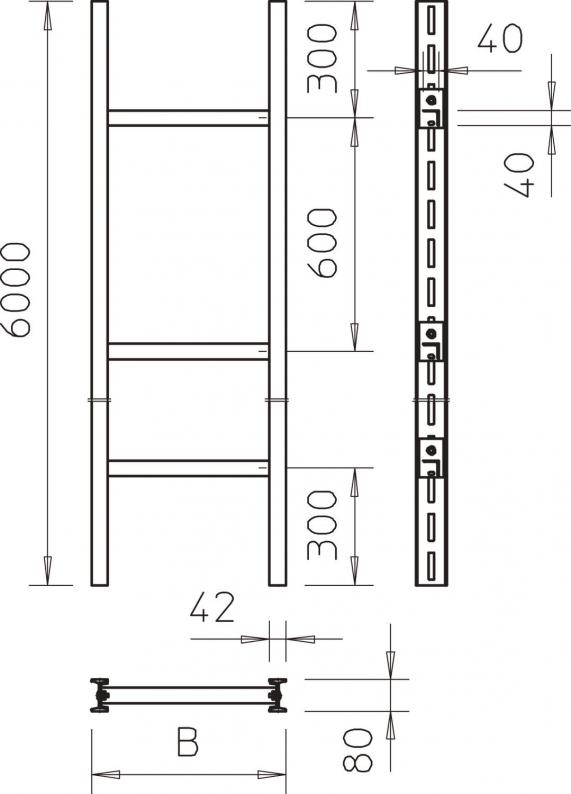

Dimensions

Length6000 mm
Width400 mm
Height80 mm
Dimension B400 mm

Technical data

Maintain electrical functionsno
Yan delikyes
Paslanmaz çelik, mordanlıno
Çerçeve mesafesi600 mm
Version of the rungsProfile unperforated
Boyut400x6000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya30,0668 kg CO2e / 1 Meter

Accessories

Mounting accessories

Item no. 6008046

Rung WSK 40
Type
WSK 40 40 FT

Smallest selling unit: 1 piece

piece

Type
VIS 8 FT

Smallest selling unit: 10 piece

piece

Item no. 6019528

Mounting angle BW 80
Type
BW 80 55 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
SLS 80 W40 4 FT
Item no.
6013848
Width
400
SLS 80 W40 5 FT
Item no.
6013856
Width
500
SLS 80 W40 6 FT
Item no.
6013864
Width
600
SLS 80 W40 7 FT
Item no.
6013872
Width
700
SLS 80 W40 8 FT
Item no.
6013880
Width
800
SLS 80 W40 9 FT
Item no.
6013899
Width
900
SLS 80 W40 10 FT
Item no.
6013902
Width
1000
