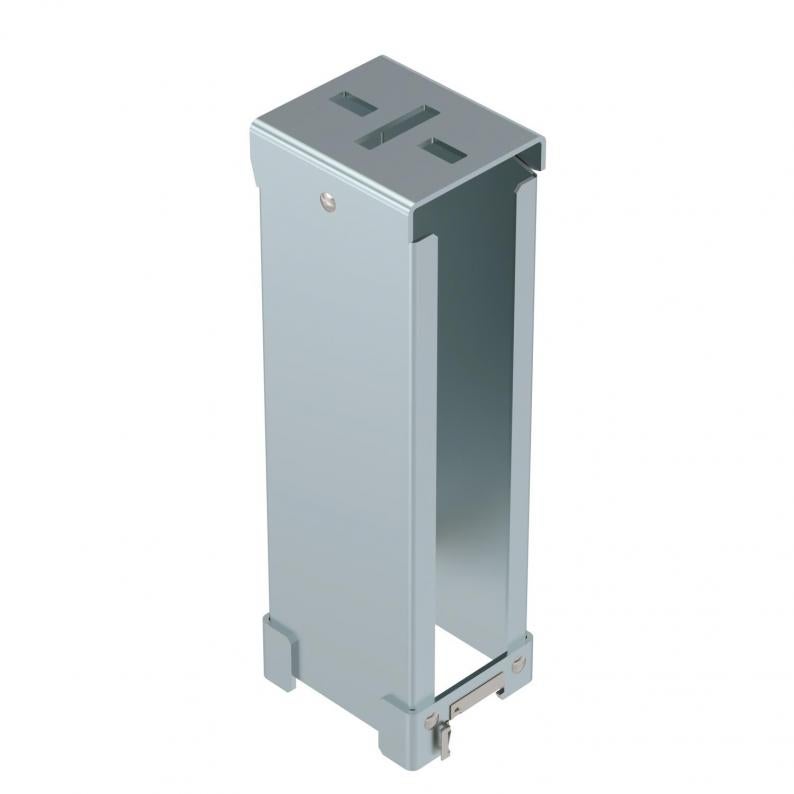

Long support for PV module mounting, flat roof
Type STL 15 DD
|Item no. 5901655
|EAN 4012197369675
Item no. / Type
5901655 / STL 15 DD
Smallest selling unit: 4 piece
4piece
piece
Description
Long support to mount photovoltaic modules on flat roofs in combination with the TP 45/4700 support profile and KLU universal clamp. Slope angle 15°. Lockable fastening on support profile.
Technical data
Dimensions
| Length | 164 mm |
|---|---|
| Width | 87 mm |
| Height | 340 mm |
Technical data
| Adjustable | yes |
|---|---|
| Depth | 0 mm |
| Angle of inclination, min. | 15 ° |
| Angle of inclination, max. | 15 ° |
| Dimension | 86x166x300 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
| Photovoltaic connection and fastening element version | Other |
| Mounting type photovoltaic mounting systems | Flat roof |
Environmental Data
6,8516 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 6,8516 kg CO2e / 1 Piece |
|---|
