Support profile for PV module mounting
Type TP 45 4700 ALU
|Item no. 5900410
|EAN 4012197368623
Item no. / Type
Length
Smallest selling unit: 4 piece
4piece
piece
Description

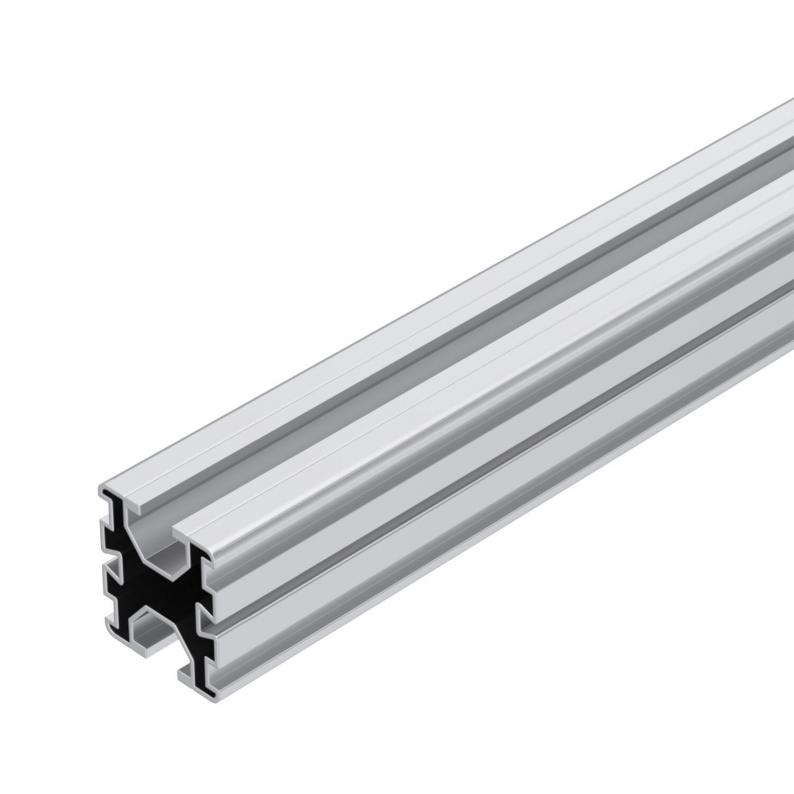

Support profile to mount photovoltaic modules on flat and pitched roofs. Flat roof mounting in combination with UniBase universal stand and STK and STL short and long supports. Lockable fastening of the profile on the stand with UniBase AMP adapter. Pitched roof mounting in combination with universal DHU roof hook. Lockable fastening of the profile on roof hooks. Screwable connection of multiple support profiles with LV 45 straight connectors and KV 45 cross-connectors. With 10 mm groove on both sides to accept slide nuts and universal and earthing clamps.
Technical data

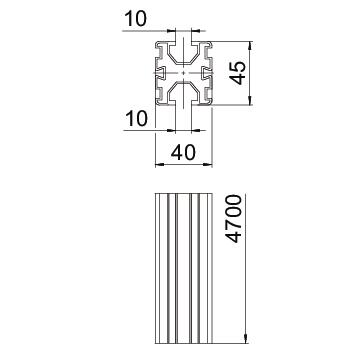

Dimensions
| Length | 4700 mm |
|---|---|
| Width | 40 mm |
| Height | 45 mm |
Technical data
| Boyut | 40x45x4700 |
|---|---|
| Surface | Bright |
| Material | Aluminium |
| Colour | alüminyum |
| Cable duct, integrated | no |
| Cable duct optional | no |
| Section modulus Sx | 3680 mm³ |
| Section modulus Sy | 3760 mm³ |
