MS4022 mounting rail, heavy-duty, slot 18 mm, FT

MS4022 mounting rail, heavy-duty, slot 18 mm, FT

Type MS4022P0492FT
|
Item no. 6007244
|
EAN 4012196006014
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 1 piece

piece

Description

MS4022 profile rail for use as rung in heavy-duty ladders.

Maximum rung load 175 kg.

The appropriate clamp clip is type 2056U.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • U support
  • U support
  • U support
  • Slot width 18 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • CO₂ footprint (PCF)

Technical data

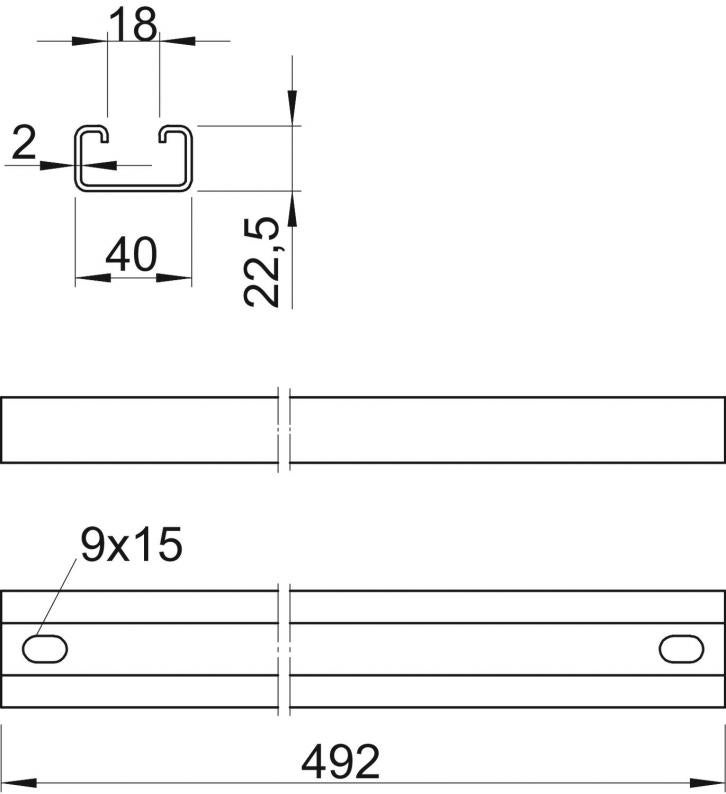

Dimensions

Length492 mm
Width40 mm
Height22,5 mm

Technical data

lampDimension WxH40x22,5 mm
Slot width18 mm
Material thickness2 mm
Profile shapeC profile
Type of perforationPerforated back
Version forSingle profile
Dimension492x40x22,5
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

1,6393 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,6393 kg CO2e / 1 Piece

Accessories

System accessories

Item no. 1147114

Slide nut ZL
Type
MS40SN M10 ZL

Smallest selling unit: 50 piece

piece

Item no. 1148118

Hook-head screw ZL
Type
MS40HB M10x30 ZL

Smallest selling unit: 50 piece

piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Length
MS4022P0192FT
Item no.
6007201
Length
192
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P0292FT
Item no.
6007228
Length
292
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P0392FT
Item no.
6007236
Length
392
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P0492FT
Item no.
6007244
Length
492
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P0592FT
Item no.
6007252
Length
592
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P0692FT
Item no.
6007260
Length
692
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P0792FT
Item no.
6007279
Length
792
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P0892FT
Item no.
6007287
Length
892
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P0992FT
Item no.
6007295
Length
992
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P1092FT
Item no.
6007309
Length
1092
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
MS4022P1192FT
Item no.
6007317
Length
1192
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
