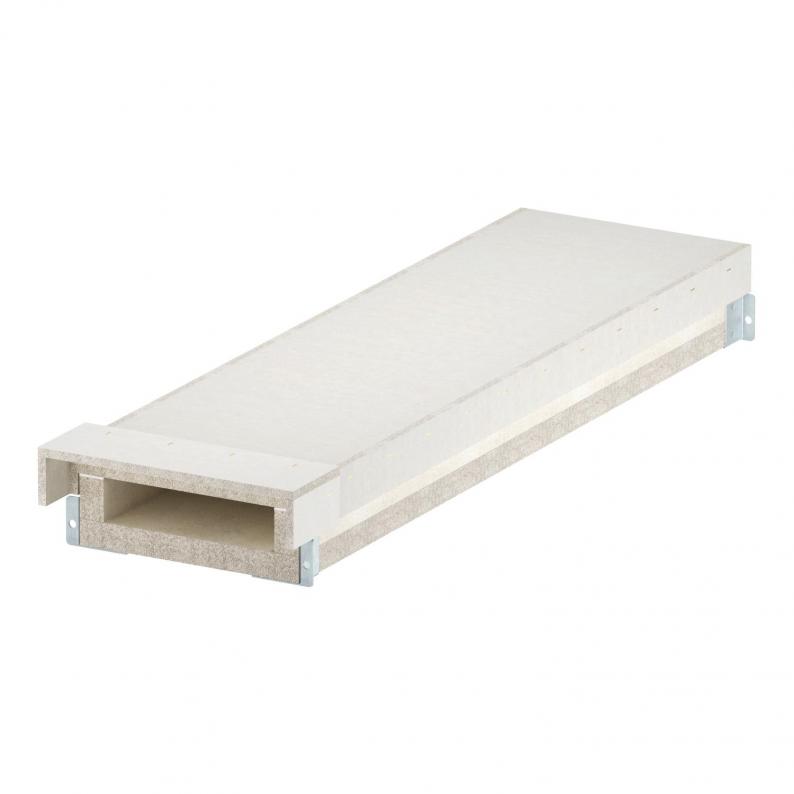

PYROLINE® Con S BSK I90/E30 protection duct

Type BSKH 090521

Item no. 7215182

EAN 4012196461516

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

7215182 / BSKH 090521

Length

1000 mm

Dimension B

310 mm

Dimension H

120 mm

Dimension b

210 mm

Dimension h

50 mm

This item is a discontinued product!

Smallest selling unit: 1 m

Description

Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I90 as I duct according to DIN 4102 Part 11 and classification E30 as E duct according to DIN 4102 Part 12.

Mounting of the duct on wall brackets or as ceiling mounting with suspended supports and brackets or on a U transverse profile suspended with threaded rods. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Fire protection duct with cover and pre-mounted connection fittings, connection crews and sealing strips.

Technical data

Dimensions

Length	1000 mm
Dimension B	310 mm
Dimension H	120 mm
Dimension b	210 mm
Dimension h	50 mm

Technical data

With perforation	no
Partitions possible	yes
Yangına dayanıklılık sınıfı I - Tesisat kanalı	90
Yangına dayanıklılık sınıfı E - Yangın durumunda akım beslemesini koruma	30
Koruma kılıfı	Without
İzolasyon malzemesi içeriği	Glass-fibre lightweight concrete
Alev alabilir taraf sayısı	4
Cover fastening	Loose
Boyut	50x210
Material	Fibreglass lightweight concrete
Colour	Grey
