Trunking, type WDK 80210
Type WDK80210RW
|Item no. 6191312
|EAN 4012195042280
Item no. / Type
Length
Width
Height
Colour
Smallest selling unit: 8 m
8m
m
Description

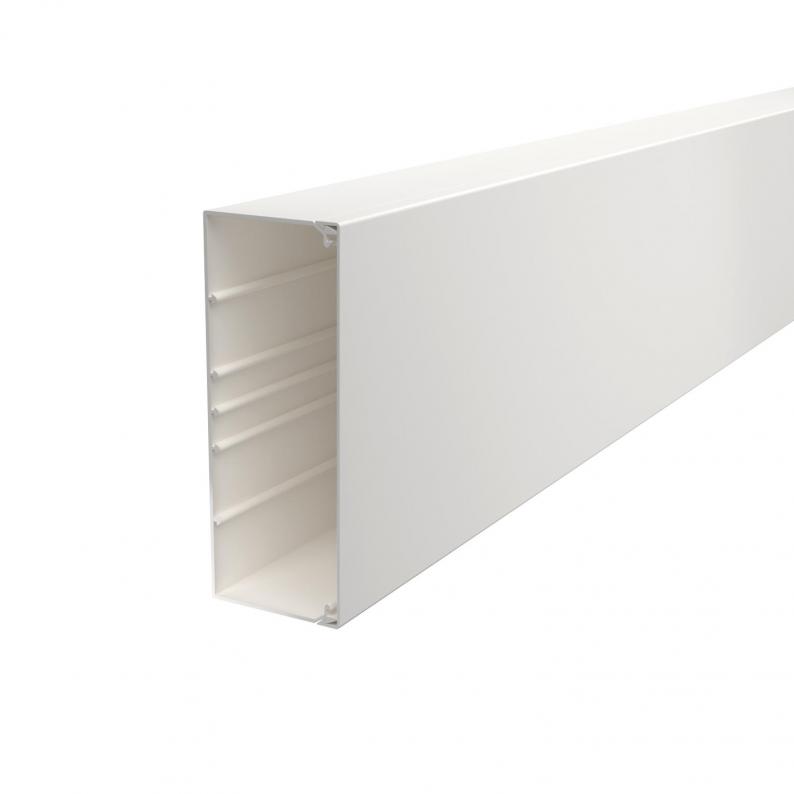

Wall installation trunking as trunking base with base perforation and matching trunking cover.
Four cover fixing devices included.
The lid clamp can be moved along the entire length of the trunking.
Four cover fixing devices included.
The lid clamp can be moved along the entire length of the trunking.
Technical data

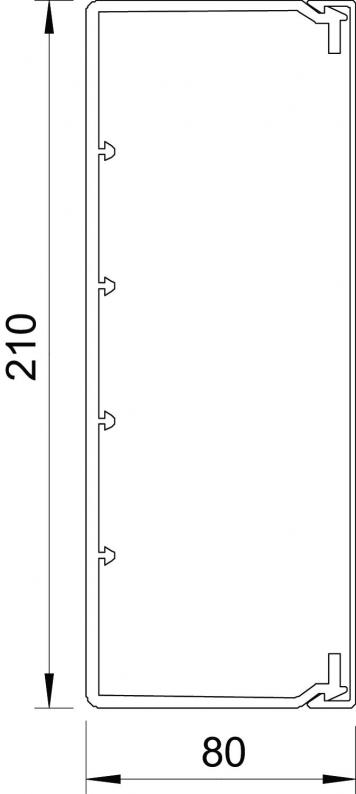

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 210 mm |
| Height | 80 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 80 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 61 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 67 |
| Usable cross-section | 13980 mm² |
| Halogen-free | no |
| Number of fixed partitions | 0 |
| Number of insertable partitions | 2 |
| Cable retaining clip | yes |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK04 |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 80x210x2000 |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
Environmental Data
5,565 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 5,565 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6193391
End piece, trunking type WDK 80210Type
WDK HE80210RW
Smallest selling unit: 10 piece
10piece
piece
Item no. 6026982
Partition for WDK trunking, trunking height 80 mmType
2371 80
Smallest selling unit: 2 m
2m
m
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Width
Height
Colour
Item no.
WDK80210GR
2000
210
80
Stone grey; RAL 7030
6026192
WDK80210CW
2000
210
80
Cream; RAL 9001
6026206
WDK80210LGR
2000
210
80
Light grey; RAL 7035
6027237
WDK80210RW
2000
210
80
Pure white; RAL 9010
6191312
